CHUTE OFFSET ASSY
Driven by the MOTOR ASSY OCT and GEAR CAM, this part moves in the lateral
direction at the time of paper ejection to perform offset operation. The offset paper and
non-offset paper are spaced 25mm from each other as standard. The offset amount (the
nearest paper distance between the offset bundle and non-offset bundle) is 10mm or
more.

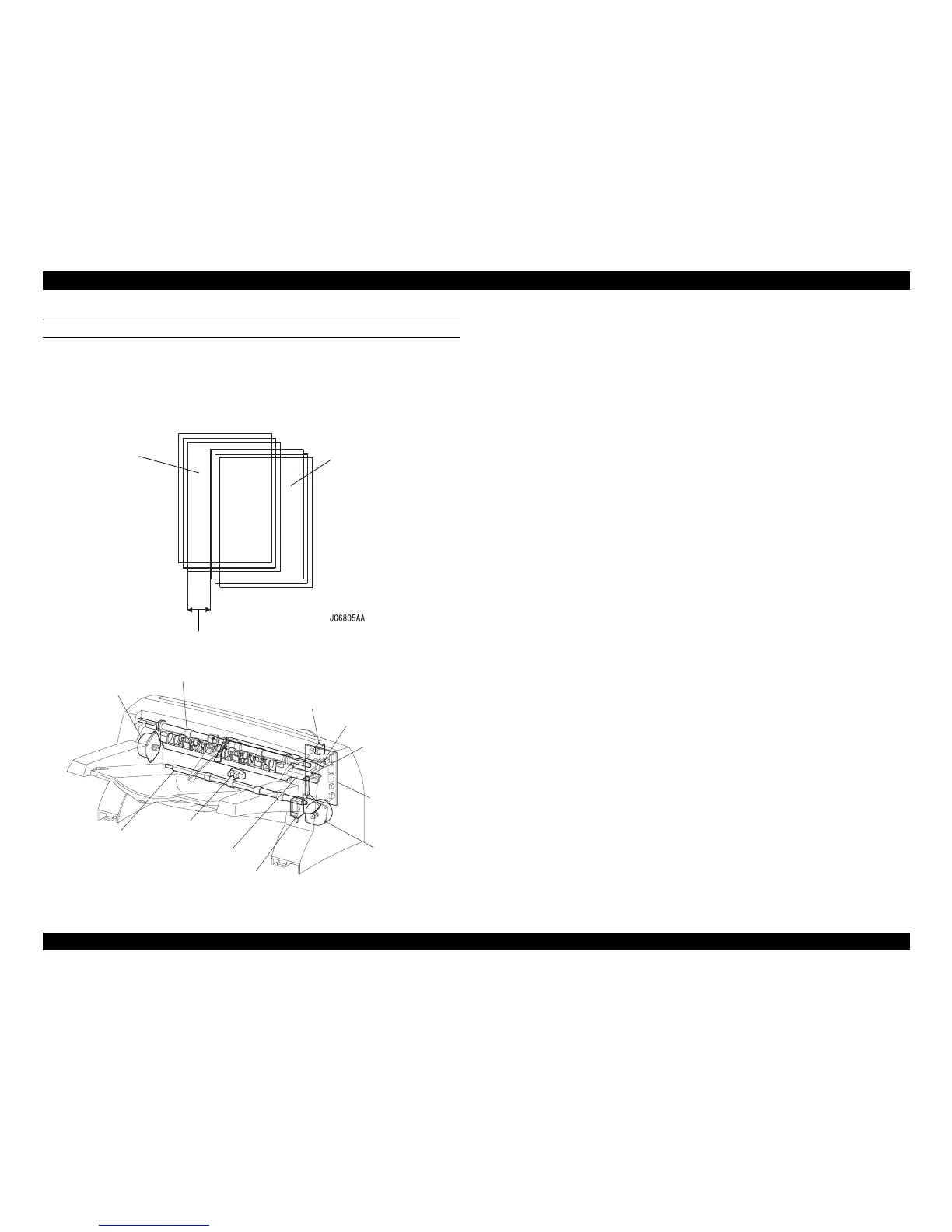

Figure 2-35. Chute Offset Assy
Figure 2-36. OCT
Offset bundle
Non-offset bundle
Offset amount
SOLENOID ASSY GATE
Sensor Full Stack OCT
PWBA OCT
ROLL OCT UPPER
MOTOR ASSY OCT
ROLL OCT LOWER
CUTE OFFSET ASSY
MOTOR ASSY OFFSET
SENSOR OCT
Sensor Offset
S/W REAR COVER
