5.3 Normal Sweep
151
5
Chapter 5 ANALYZER Function

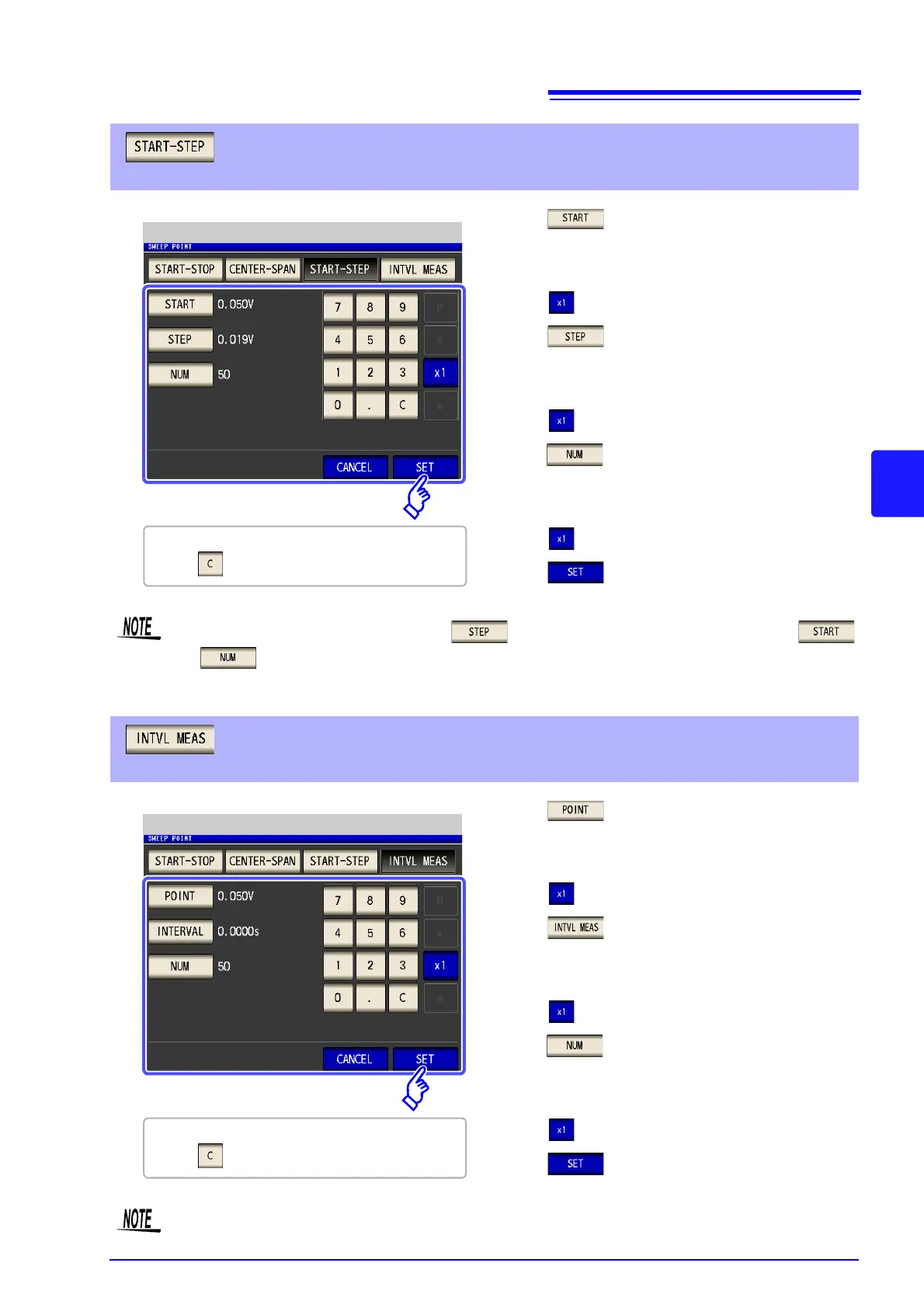

Setting the start value of the sweep and the step width of the
sweep point
Fixing sweep parameter and setting measurement to be
performed at a set time interval (Time interval measurement)
1. Press and use the numeric keypad to set the
start value of the sweep.
Settable range: 0.005 to 5.000 V
2. Press key to confirm the setting.
3. Press and use the numeric keypad to set the
step width of the sweep point.
Settable range: 0.005 to 5.000 V
4. Press key to confirm the setting.
5. Press and use the numeric keypad to enter the
number of sweep points.
Settable range: 2 to 801
6. Press key to confirm the setting.
7. Press to confirm the setting.
START-STEP Settings
If you make a mistake during input:
press to cancel the input and start again.
The range of values that can be set for varies depending on the values set with
and .
If you make a mistake during input:
press to cancel the input and start again.
1. Press and use the numeric keypad to set the
start value of the sweep.
Settable range: 0.005 to 5.000 V
2. Press key to confirm the setting.
3. Press and use the numeric keypad to set the
measurement time interval.
Settable range: 0 s to 10000 s
4. Press key to confirm the setting.
5. Press and use the numeric keypad to enter the
number of measurements.
Settable range: 2 to 801
6. Press key to confirm the setting.
7. Press to confirm the setting.
INTERVAL Setting
The measurement interval for INTERVAL measurement is reflected in the point delay time.
