5.10 Equivalent Circuit Analysis Function
254
When performing analysis using the B and C models, it is necessary to measure frequencies that are as low
as possible, but low-frequency measurement is time-consuming. The IM3570 uses measured values for the
lowest frequency in the measurement range. By setting a low frequency for one point in the sweep range, it is
possible to conduct a precise analysis in a short period of time.

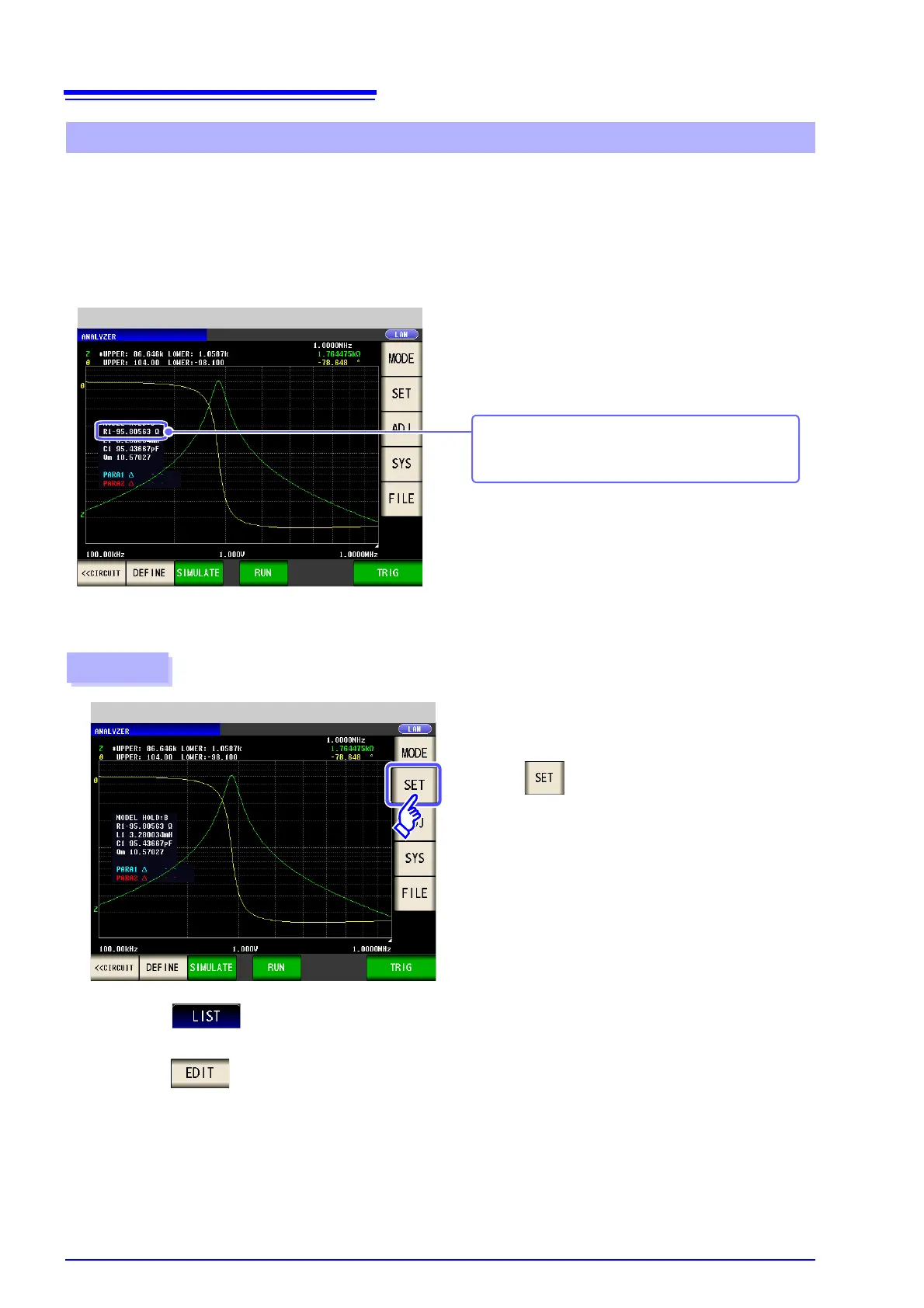

The following diagram provides an example of a B mode analysis performed using sweep measurement start-
ing at 100 kHz.
In this case, the sweep range setting should specify measurement of just one low frequency.
A practical method for setting the measurement range
Example of an improper analysis
Looking at the analysis results, the negative
R value indicates that the analysis has not
been performed properly.
1
2
Measurement Screen
Press in the [Measurement Screen].
Press to display a list of sweep points.
3
Press .
Procedure
To Next Page
