5.10 Equivalent Circuit Analysis Function
255
5
Chapter 5 ANALYZER Function
The above procedure allows the R value to be properly estimated.
4

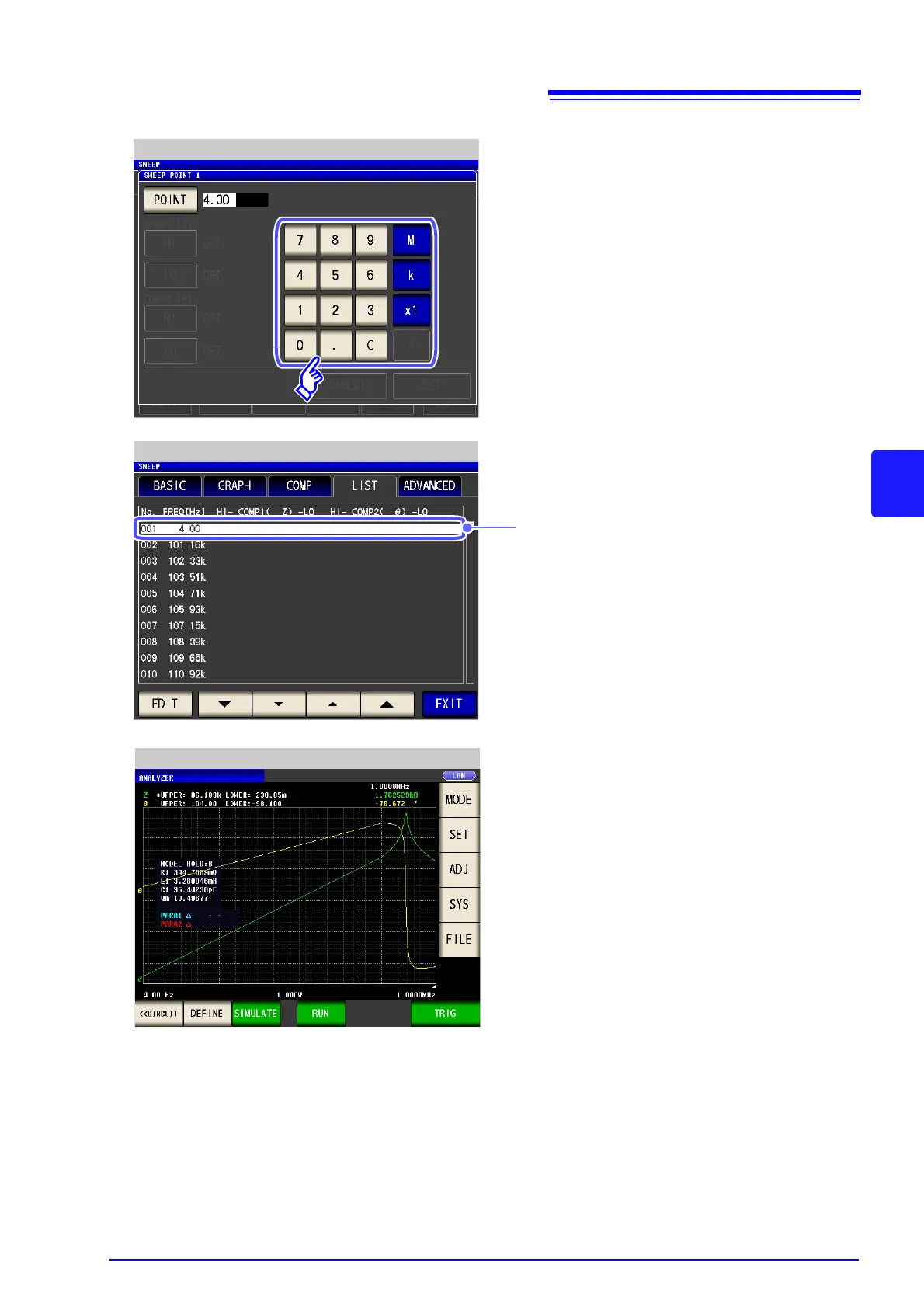

Sweep point settings
Enter as low a frequency as possible.
5
Sweep point list
Verify that a low frequency has been set for
just one point on the sweep point list.
6
Example of a proper analysis
Measured is performed and followed by
equivalent circuit estimation.
