5.10 Equivalent Circuit Analysis Function
256
If the instrument is unable to detect the resonance points that are used in analysis, the following error mes-
sage will be displayed.
Set the sweep range so that it includes resonance points.
Additionally, verify that the frequency range and segments used in the analysis are appropriately configured.
See "Setting the frequency range to analyze" (p. 243)
"Selecting the segment to analyze" (p. 245)
When the sweep parameter is set to a value other than "Frequency," the following error message will be dis-
played. Set the sweep parameter to "Frequency."
See "5.2.2 Setting the Sweep Parameter" (p. 135)
When unable to detect resonance points
When the sweep parameter is set to a value other than "Frequency"

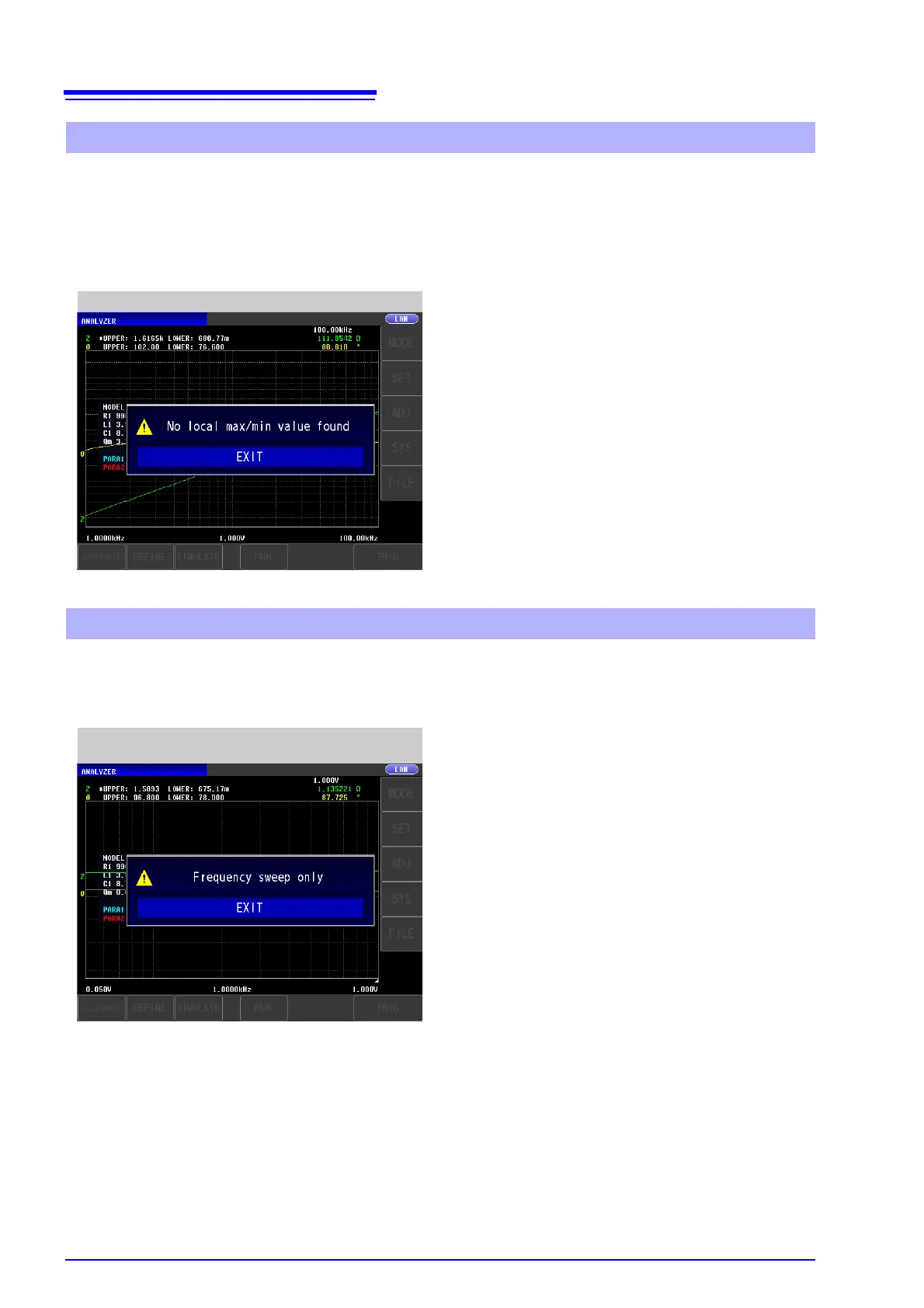

Screen displayed when unable to detect resonance points
Screen displayed when the sweep parameter is set to
a value other than "Frequency"
