7.5 Calculating Values Scaling
304
• If the same parameter is selected multiple times and a different compensation coefficient
is set for each of them, the compensation coefficient of the parameter with the smallest
number is used to perform scaling for all of the parameters of the parameter numbers.
(The compensation coefficients of the other parameter numbers become invalid.)
• In the case of the following settings, scaling is performed using the compensation coeffi-
cient of parameter 1 for all Z of parameters 1, 2, and 4. (The compensation coefficients of
parameters 2 and 4 are invalid.)
6

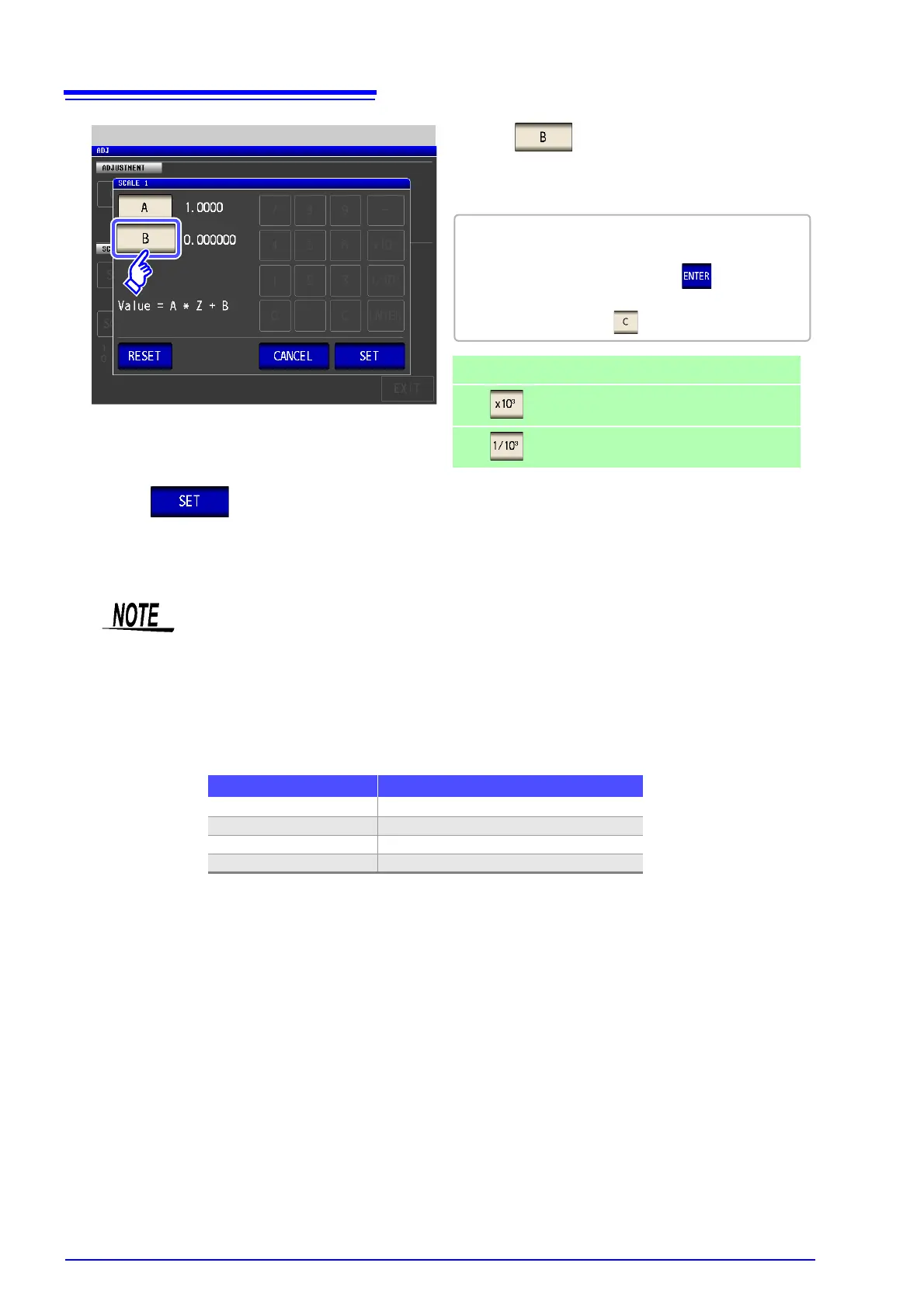

Press and use the numeric keypad to
set compensation coefficient B in the same
way as for A.
Settable range: -9.999999G to 9.999999G
To return to the previous screen without making any
change to the set value, press the key when the
screen is in the state with nothing being displayed (the
state after pressing the key).
Changing the unit ( a/ f/ p/ n/ / m/ None/ k/ M/ G )
Step the units up.
Step the units down.
7
Press to return to the [Scaling Compensation Setting].
Compensation Coefficient Setting
Reference value 1
Display Parameter Setting Compensation Coefficient Setting
Parameter 1: Z
a = 1.5000, b = 1.500000
Parameter 2: Z a = 1.7000, b = 2.500000
Parameter 3:
 a = 0.7000, b = 1.000000
Parameter 4: Z a = 1.9000, b = 3.500000
