8.3 Self Checks (Self Diagnosis)

310

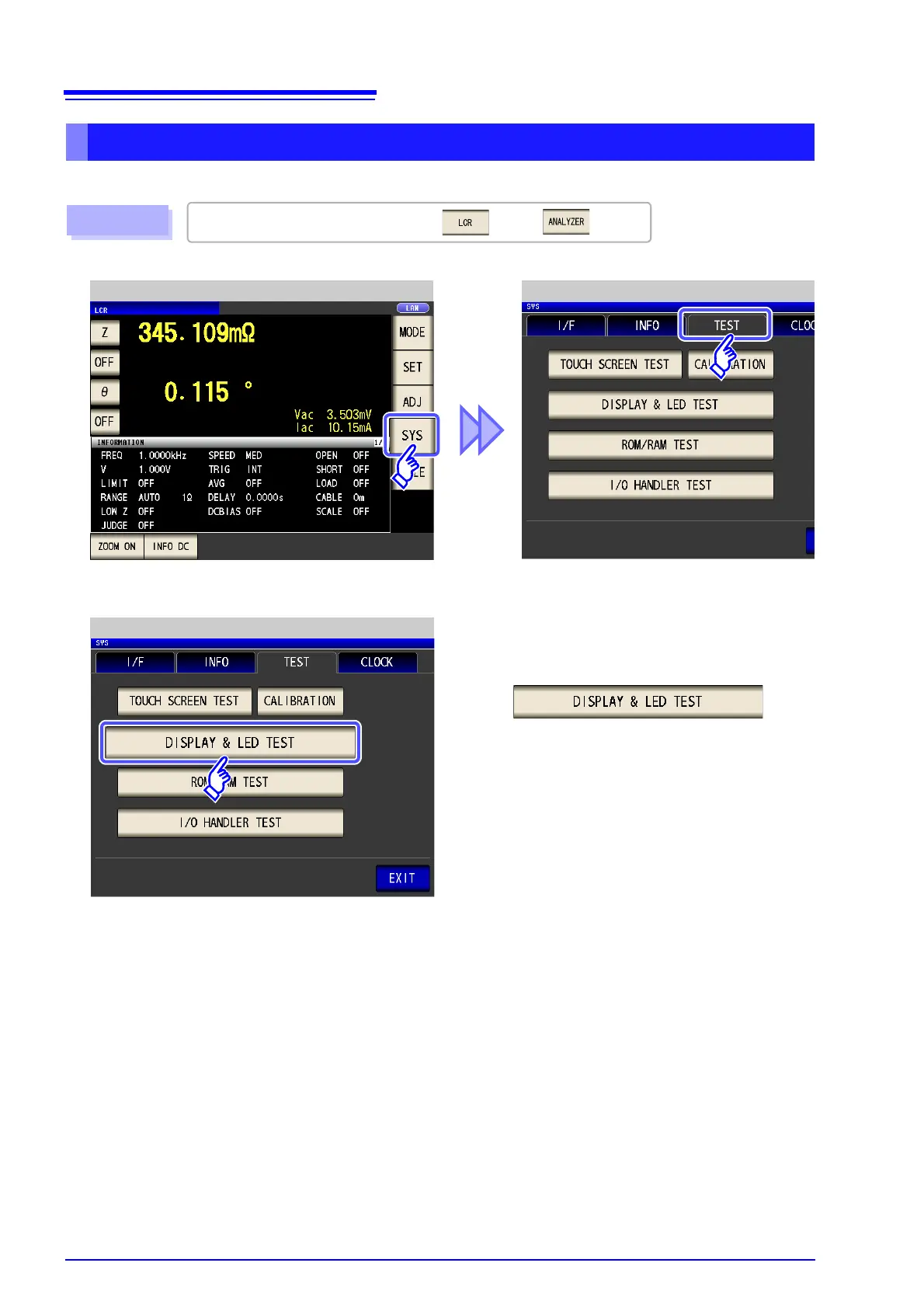

Check the display state of the screen and lighting state of the LEDs.

Screen Display Test

LCR Initial Screen

1

Self Checks

Press .

2

Self Checks

Procedure

This operation is possible in any of the mode, mode.
