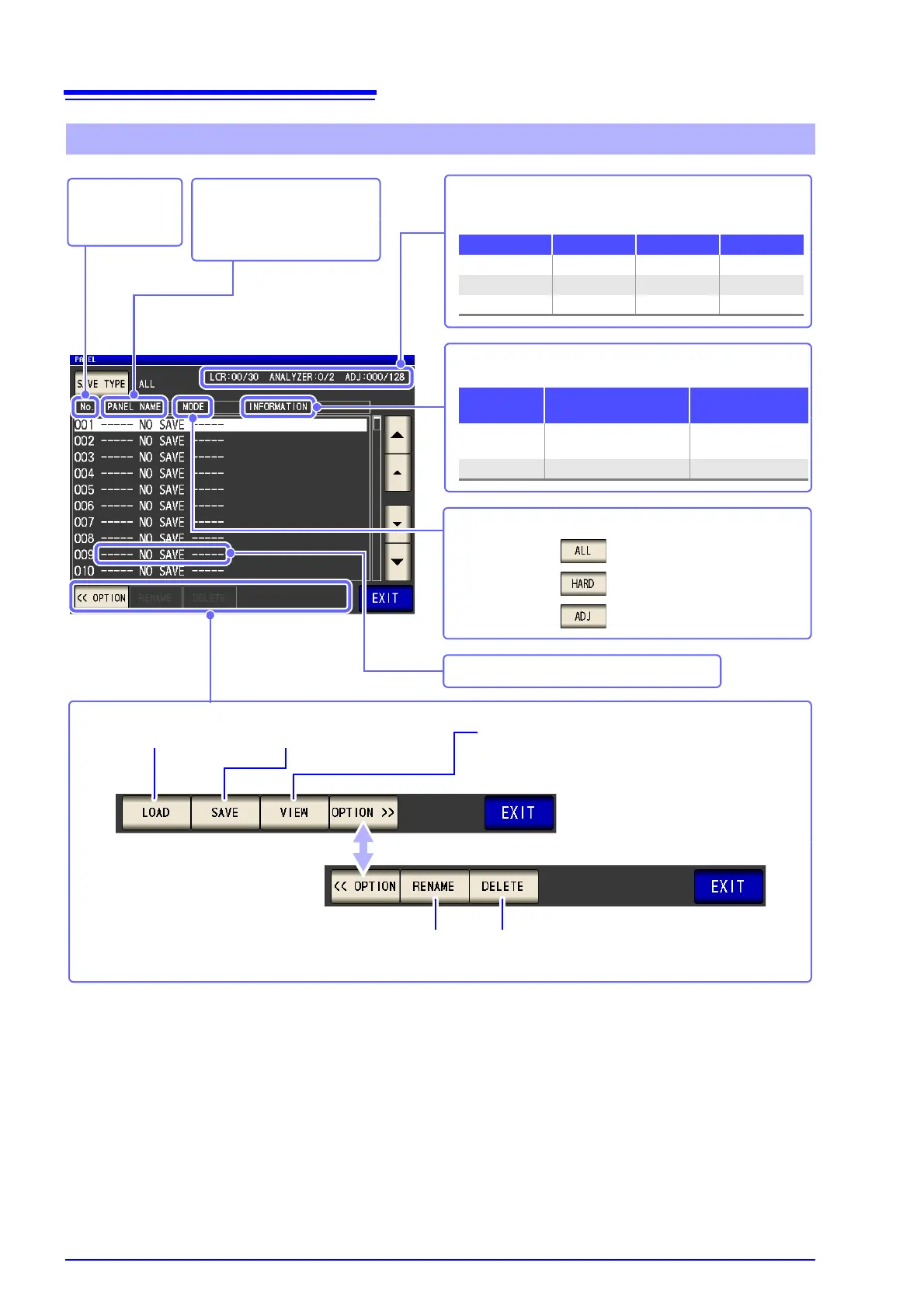

Indicates that nothing is saved.
Indicates the save type.(p. 317)
When saving with : [LCR+ADJ] or [ANA+ADJ]
When saving with : [LCR] or [ANA]
When saving with : [ADJ]
Indicates the
panel number.
(001 to 128)
Allows you to check the information of the selected
panel. (p. 320)
Indicates basic information on the saved panels.
In order from the left
MODE
Measurement
Parameters
Judgment Mode
LCR
[PARA1] - [PARA2] -
[PARA3] - [PARA4]
[COMP] or [BIN]
ANALYZER [PARA1] - [PARA2] [PEAK] or [AREA]
MODE White Yellow Red
LCR 0 to 14 15 to 29 30
ANALYZER 0 1 2
ADJ 0 to 63 64 to 127 128
Indicates the number of panels currently saved.(p. 317)
The text color changes in accordance with the number of data
items currently saved as shown in the table below.
Indicates the panel name.
See When you want to
change a panel name
(p. 324)
Allows you to changes the
panel name. (p. 324)
Deletes the panel. (p. 326)
Loads the save conditions.
(p. 322)
Saves the measurement
conditions. (p. 317)
