Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
78 DSAM Help User Guide Rev. 001
– Configure location settings
Downstream
Plans
Each channel is identified by its carrier type, frequency, and other
parameters. You can edit the parameters of individual channels within
a plan to meet a variety of measurement objectives.
Choosing a Channel
Plan
To select a channel plan
1 Press Configure.
2 Press the Chan Plan softkey.
3 Using the arrow keys, select Downstream Plans.
4 Press ENTER.

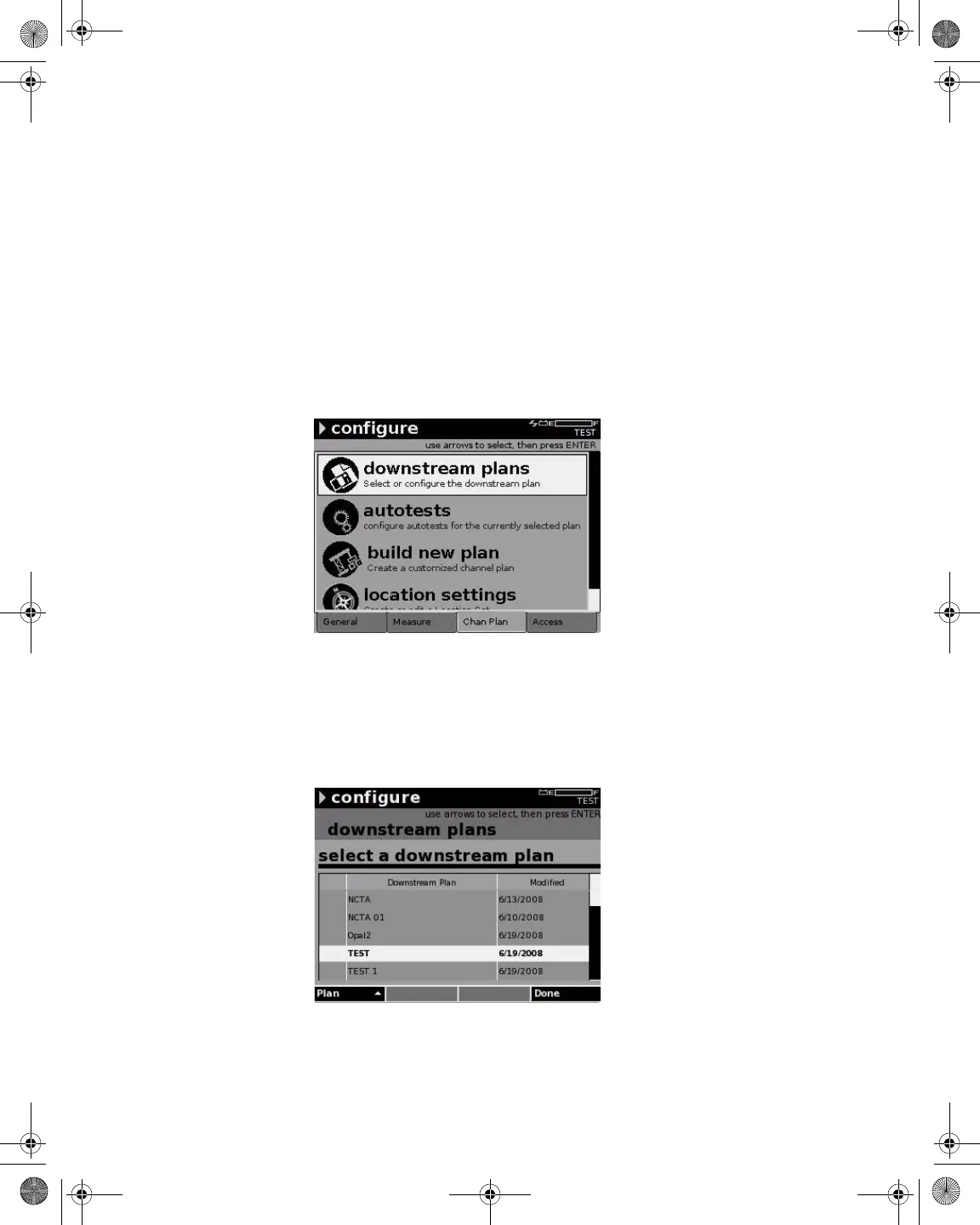

Figure 67 Configure – Channel Plan Tab: Downstream
Plans
Figure 68 Configure – Downstream Plans
21128026 R001 DSAM Help User Guide.book Page 78 Thursday, February 5, 2009 2:02 PM
