Chapter 8 Measure Mode – Basic Tab
Level
154 DSAM Help User Guide Rev. 001
Understanding
Level Results
You can display level results in two ways: Digital or Analog.
Digital Channel
Display
Measurement
Information Area
This area displays information about the current channel. Information
that is displayed in this area includes:
– Overall pass/fail indicator
– Channel label
– Channel type (Single, TV, Dual, Digital, or DOCSIS)
– Channel number
– Test point compensation (if applicable)
– High sensitivity indicator (for some modes)
High Sensitivity
Indicator
This icon is displayed if QAM Sensitivity is set to high on the Other
Settings configuration screen. (Refer to “Other Settings Parameters”
on page 66.)
NOTE
To save the results to a file, refer to “Saving Results” on page 198.
If you chose the wrong limit set before conducting the test, press
the Limits softkey and select a different limit set to view your test
results in relation to a different limit set without rerunning the test.

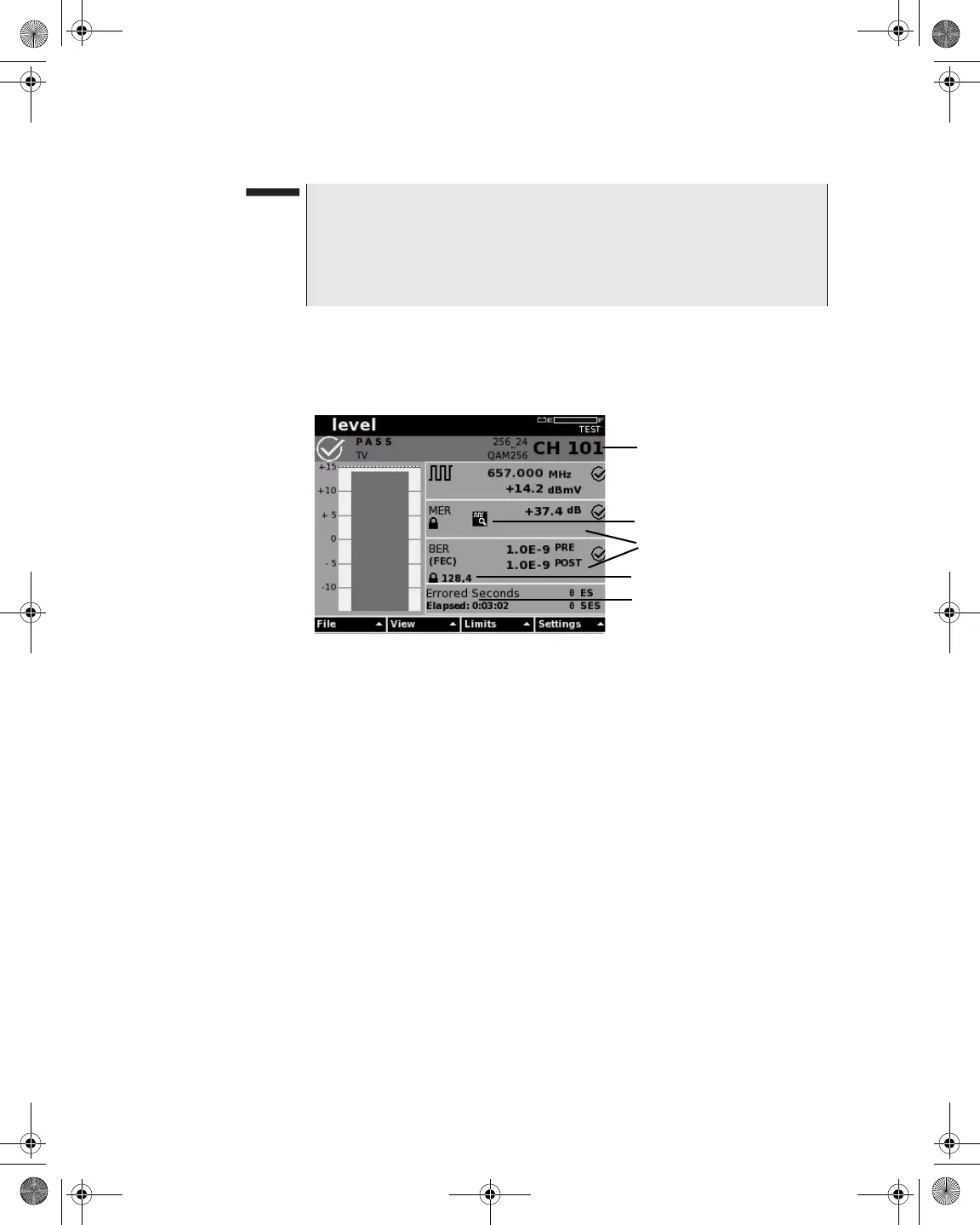

Figure 143 Measure Mode – Level (digital channel)
Measurement
Information Area
Digital Performance
Errored Seconds
High Sensitivity
Indicator
Interleaver Depth
21128026 R001 DSAM Help User Guide.book Page 154 Thursday, February 5, 2009 2:02 PM
