Chapter 3 Battery Installation
Installing and Maintaining the EZ Charge Battery
16 DSAM Help User Guide Rev. 001
1 Align the 12 volt DC universal power supply module connector (or
DC connector) with the DC connection port in the battery.
2 Insert the connector into the connection port.
3 Align the power cord female connector with the 12 volt DC
universal power supply connection port.
4 Insert the connector into the connection port.
5 Insert power cord male plug to an AC power source when you are
ready to power the meter or charge the battery. (If you are using
the DC connector, connect it to an appropriate 12-volt DC power
source.)
WARNING ELECTRICAL SHOCK
Electrical shock may result in serious injury or death. Be sure the
AC cord is connected to the correct voltage mains. Do not use out-
doors or in wet locations. Use only the universal power supply sup-
plied with the test set.

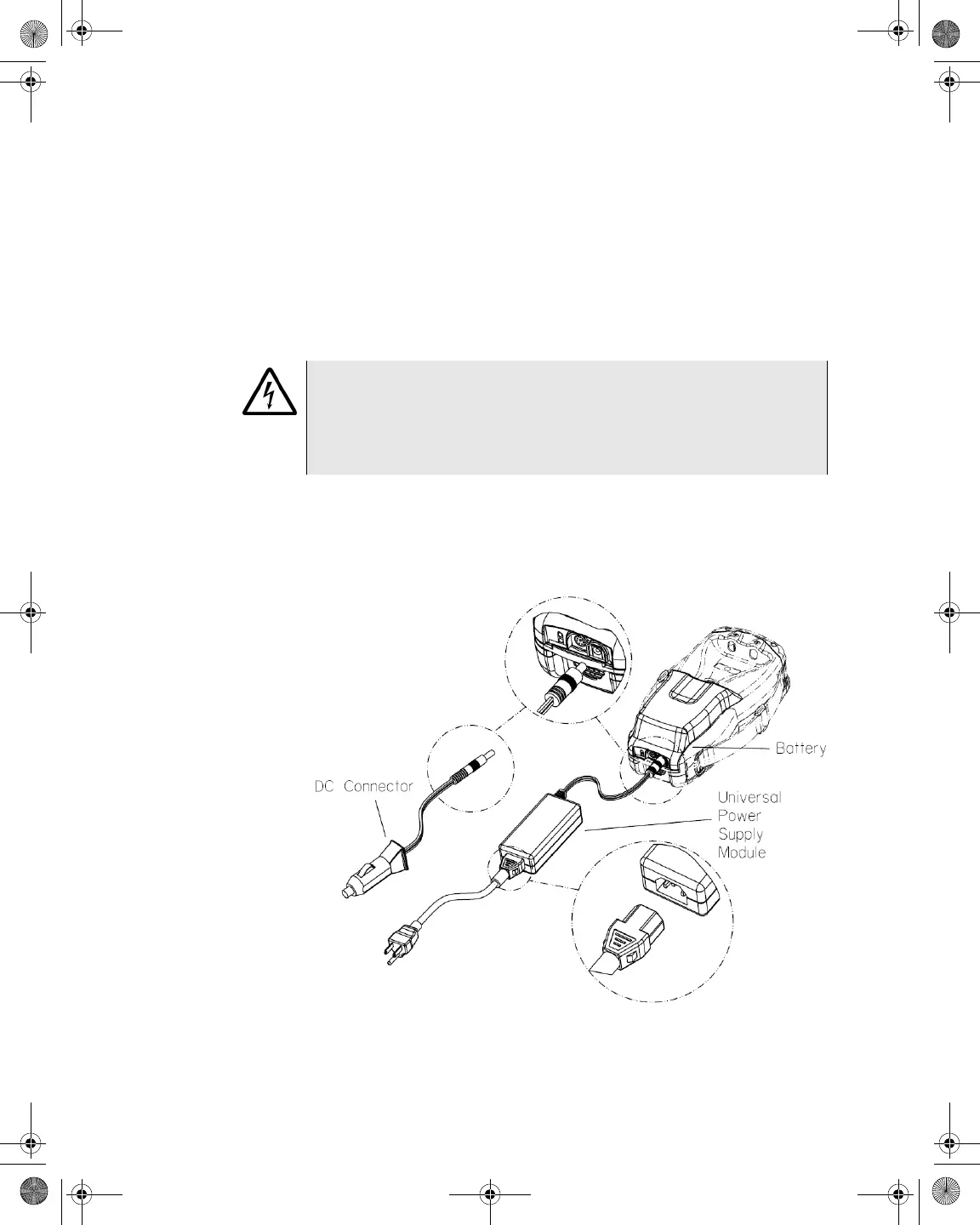

Figure 10 High Capacity External Power Components
21128026 R001 DSAM Help User Guide.book Page 16 Thursday, February 5, 2009 2:02 PM
