Chapter 11 Measure Mode – Sweep Tab
Reverse Sweep
DSAM Help User Guide Rev. 001 281
3 Using the arrow keys, select Reverse Sweep.
4 Press ENTER.
5 Press the Settings softkey.
6 Using the arrow keys, select one of the following options:
Test Point Comp – Displays the Test Point Compensation
screen (“Test Point Compensation” on page 71).
Telemetry Frequency… – Displays the Telemetry Settings
screen (“Configuring Telemetry Frequency” on page 86).
Sweep Tilt and Limit… – Displays the Sweep Settings screen
(“Sweep Settings” on page 55).
7 Using the arrow keys and the alphanumeric keypad, highlight and
edit the parameters as needed.
8 Press the OK softkey.
Understanding
Reverse Sweep
Results
The Reverse Sweep measurement mode provides signal levels of all
frequency points which are then displayed on a graph.

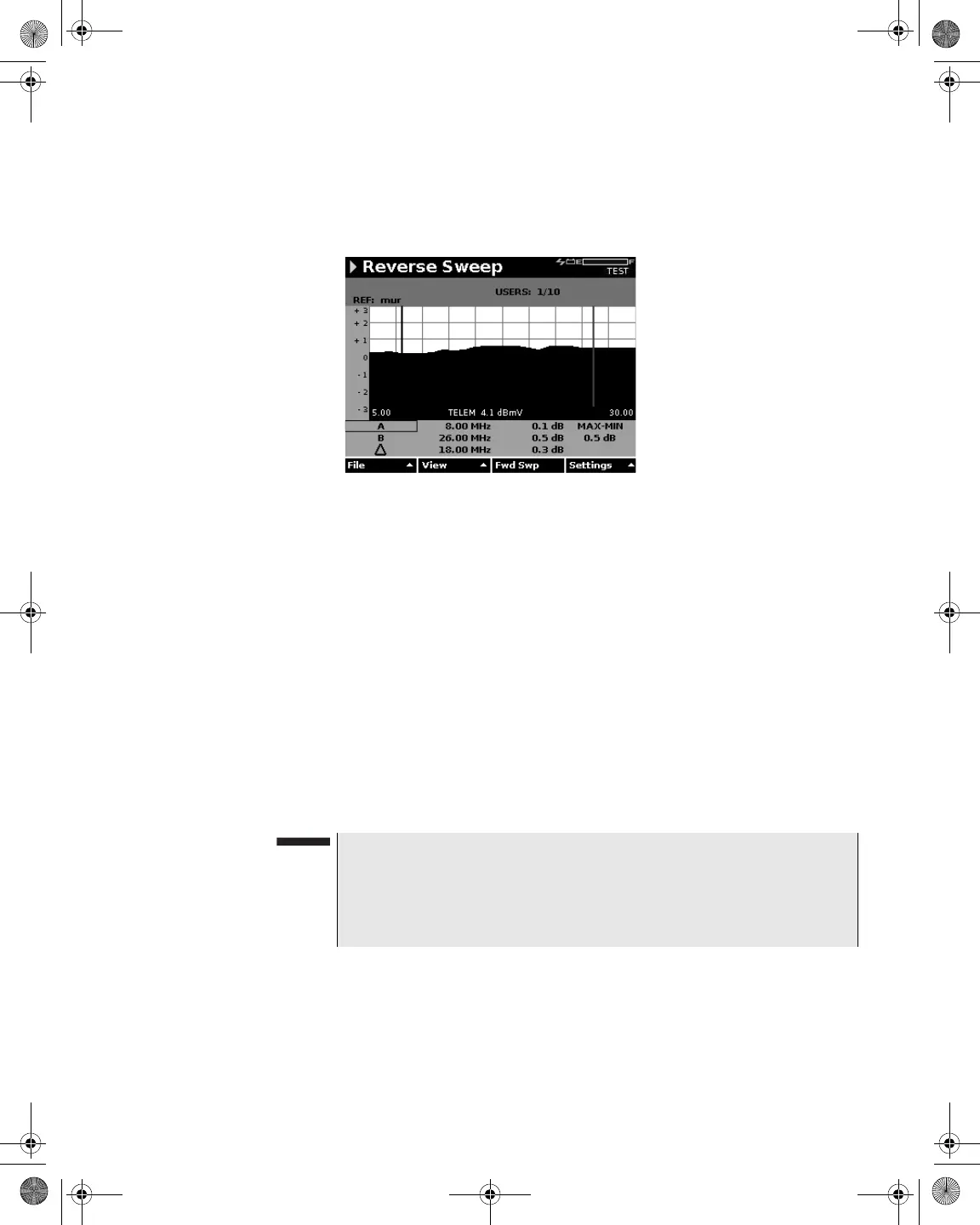

Figure 252 Measure Mode – Reverse Sweep
NOTE
All settings made in the Telemetry Settings screen are saved in the
active channel plan identified in the upper right-hand corner of the
screen. Be sure to select the appropriate channel plan for the net-
work you are working with.
