Chapter 5 Configuring the Meter
Configure – General Tab
48 DSAM Help User Guide Rev. 001
3 Using the arrow keys, select Choose a Utility.
4 Press ENTER.
5 Using the arrow keys, select the task you want to perform.
6 Press the Select softkey.
Clone
Use the Clone screen to copy configuration parameters, channel
plans, and limit plans between meters.
Sending Settings
To send settings
1 Connect the meters via Ethernet cable.
The Ethernet port is located at the top of each meter. Use an
Ethernet crossover cable or a standard ethernet cable with a
crossover adapter to connect meters.

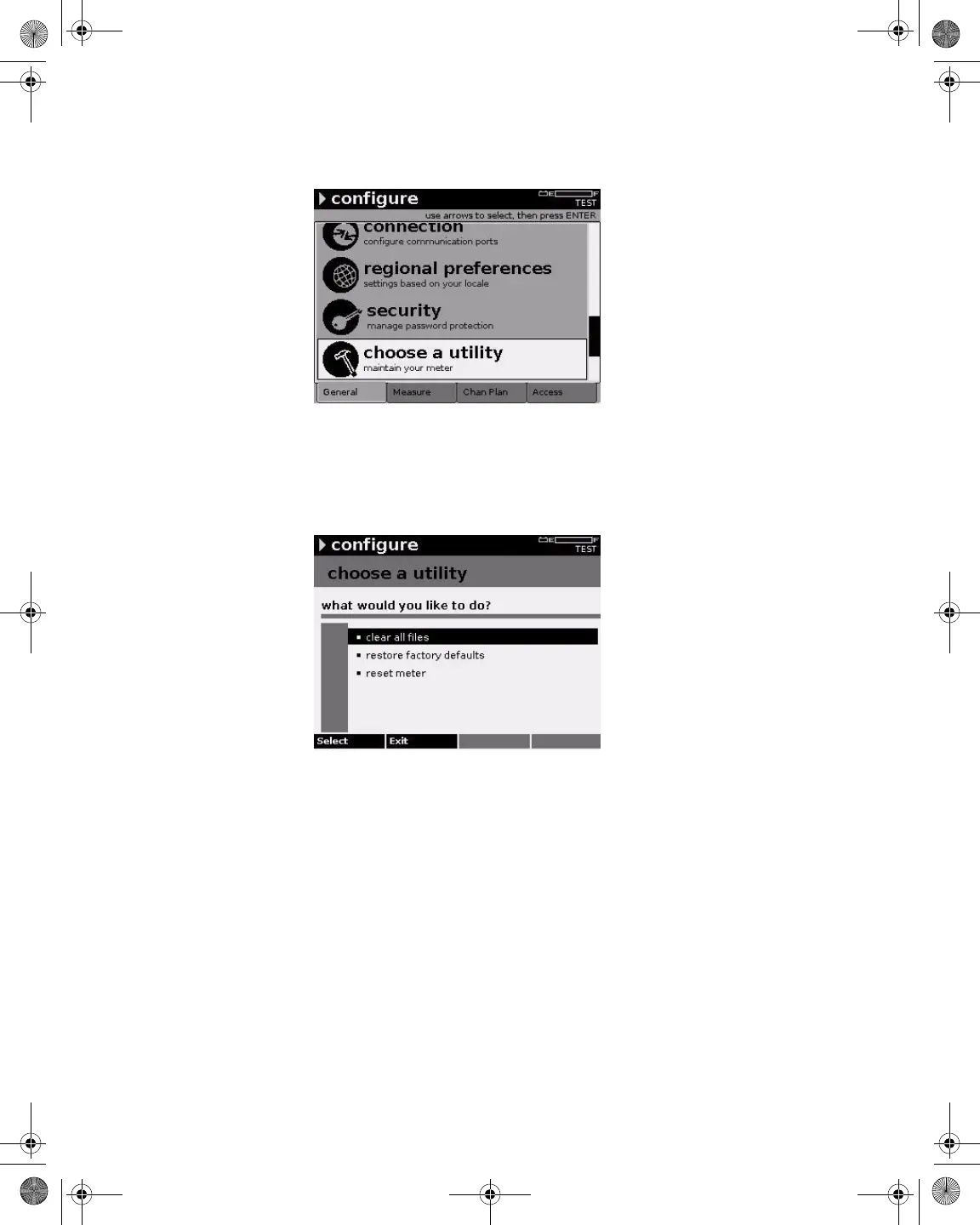

Figure 35 Configure – General Tab: Choose a Utility
Figure 36 Configure – Choose a Utility
21128026 R001 DSAM Help User Guide.book Page 48 Thursday, February 5, 2009 2:02 PM
