Chapter 11 Measure Mode – Sweep Tab
Sweepless Sweep
286 DSAM Help User Guide Rev. 001
3 Using the arrow keys, select Sweepless Sweep.
4 Press ENTER.
5 Press the Settings softkey.
6 Using the arrow keys, select one of the following options:
– Show Audio – Shows/hides audio points.
– Test Point Comp – Displays the Test Point Compensation
screen (“Test Point Compensation” on page 71).
– Sweep Tilt and Limit… – Displays the Sweep Settings screen
(“Sweep Settings” on page 55).
7 Using the arrow keys and the alphanumeric keypad, highlight and
edit the parameters as needed.

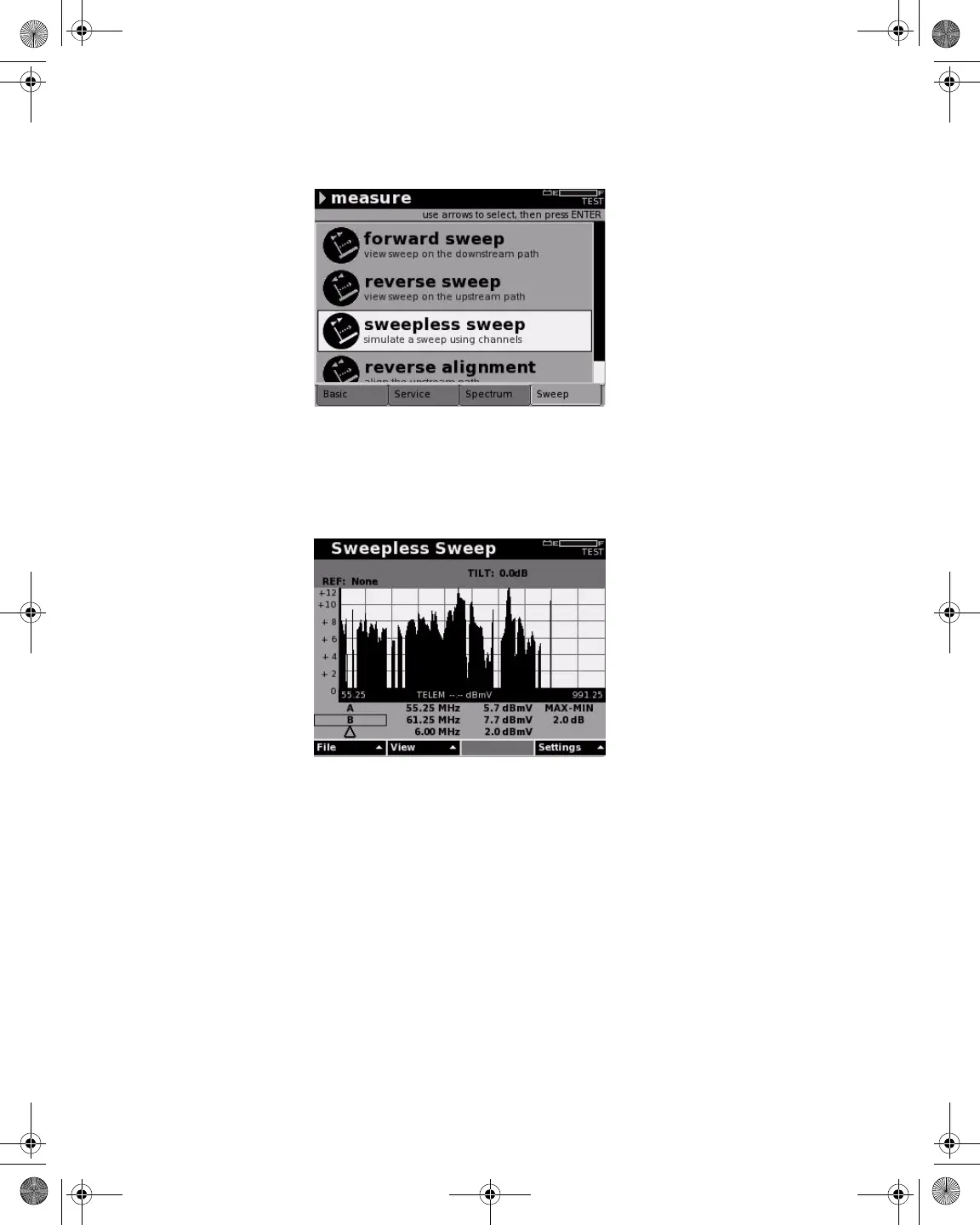

Figure 255 Measure Mode – Sweep Tab
Figure 256 Measure Mode – Sweepless Sweep
