Chapter 8 Measure Mode – Basic Tab
Tilt
172 DSAM Help User Guide Rev. 001
8 Using the arrow keys and the Select softkey, select up to twelve
channels for tilt measurement.
9 Press the Done softkey.
10 Press the Done softkey.
Setting High and
Low Pilot
Channels
To set the high and low pilot channels
1 To move the marker horizontally to the low pilot channel, use the
left and right arrow keys.
2 Press the Markers softkey.
3 Using the arrow keys, select Low.
If the marker is on a channel that is the high pilot or is greater in
frequency than the high pilot, Low is disabled.
4 Press ENTER.
5 To move the marker horizontally to the high pilot channel, use the
left and right arrow keys.
6 Press the Markers softkey.
7 Using the arrow keys, select High.

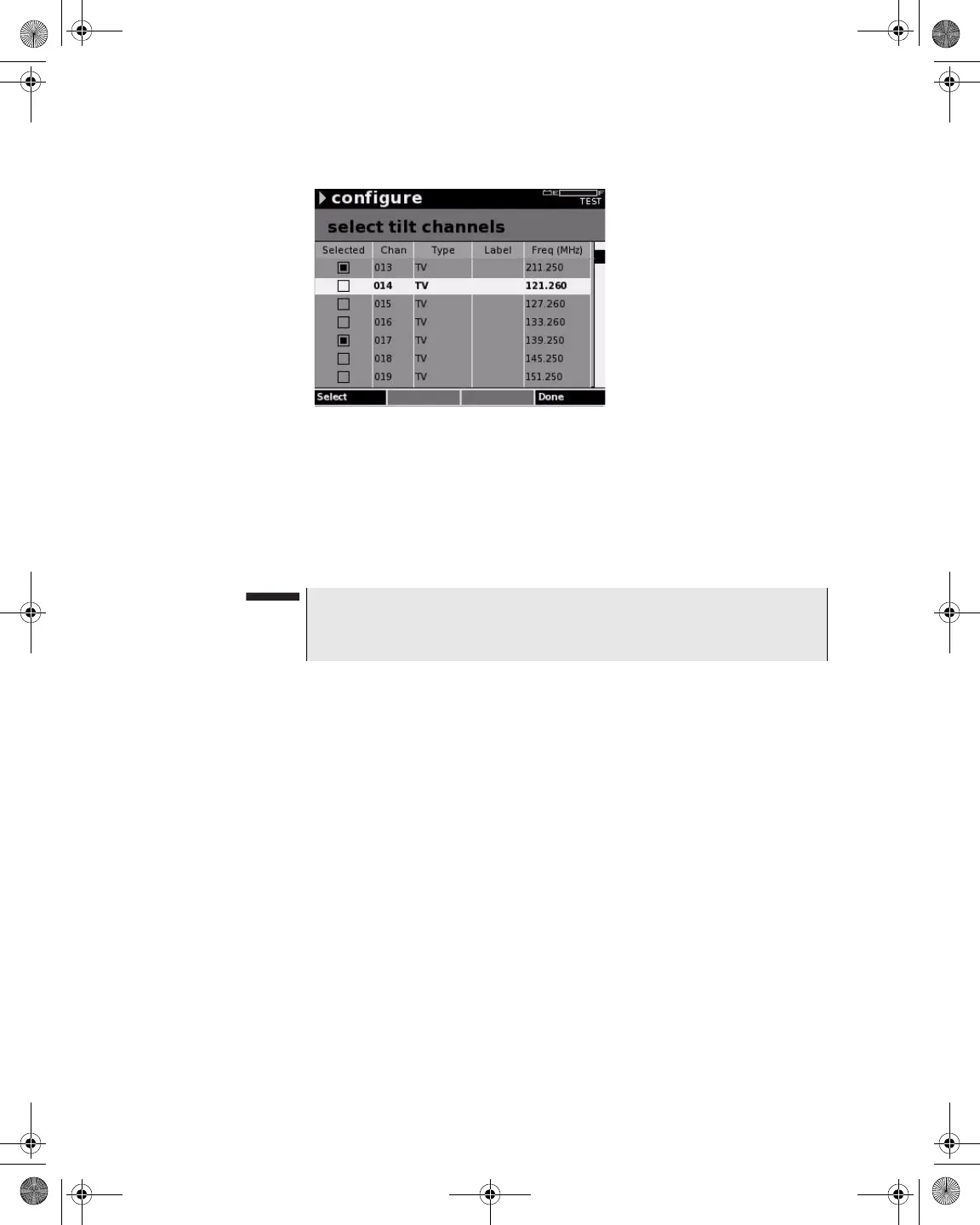

Figure 156 Measure Mode – Select Tilt Channels
NOTE
You can also change the channels in the channel plans from
“Downstream Plans” on page 78
21128026 R001 DSAM Help User Guide.book Page 172 Thursday, February 5, 2009 2:02 PM
