Chapter 8 Measure Mode – Basic Tab

Full Scan

166 DSAM Help User Guide Rev. 001

Enabling

Channels for Full

Scan

To enable channels

1 Press the Settings softkey.

2 Using the arrow keys, select Channel Plans.

3 Press ENTER.

4 Press the Plan softkey.

5 Using the arrow keys, select a channel plan.

6 Press the Done softkey.

7 Press the Plan softkey.

8 Using the arrow keys, select Enabled Channels.

9 Press ENTER.

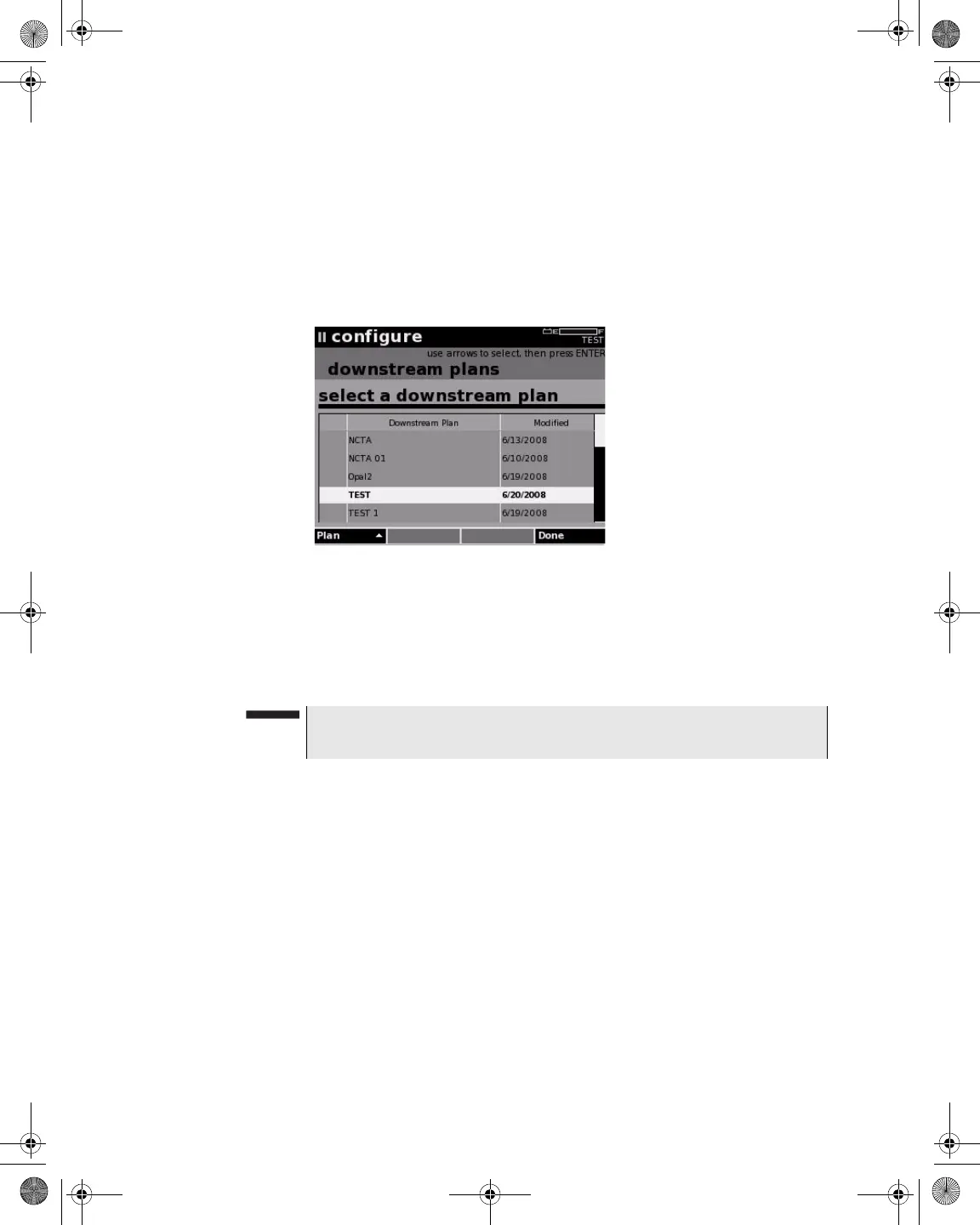

Figure 151 Measure Mode – Downstream Plans

NOTE

The channel plan must include at least one channel.

21128026 R001 DSAM Help User Guide.book Page 166 Thursday, February 5, 2009 2:02 PM
