Configure – Channel Plan Tab
DSAM Help User Guide Rev. 001 81

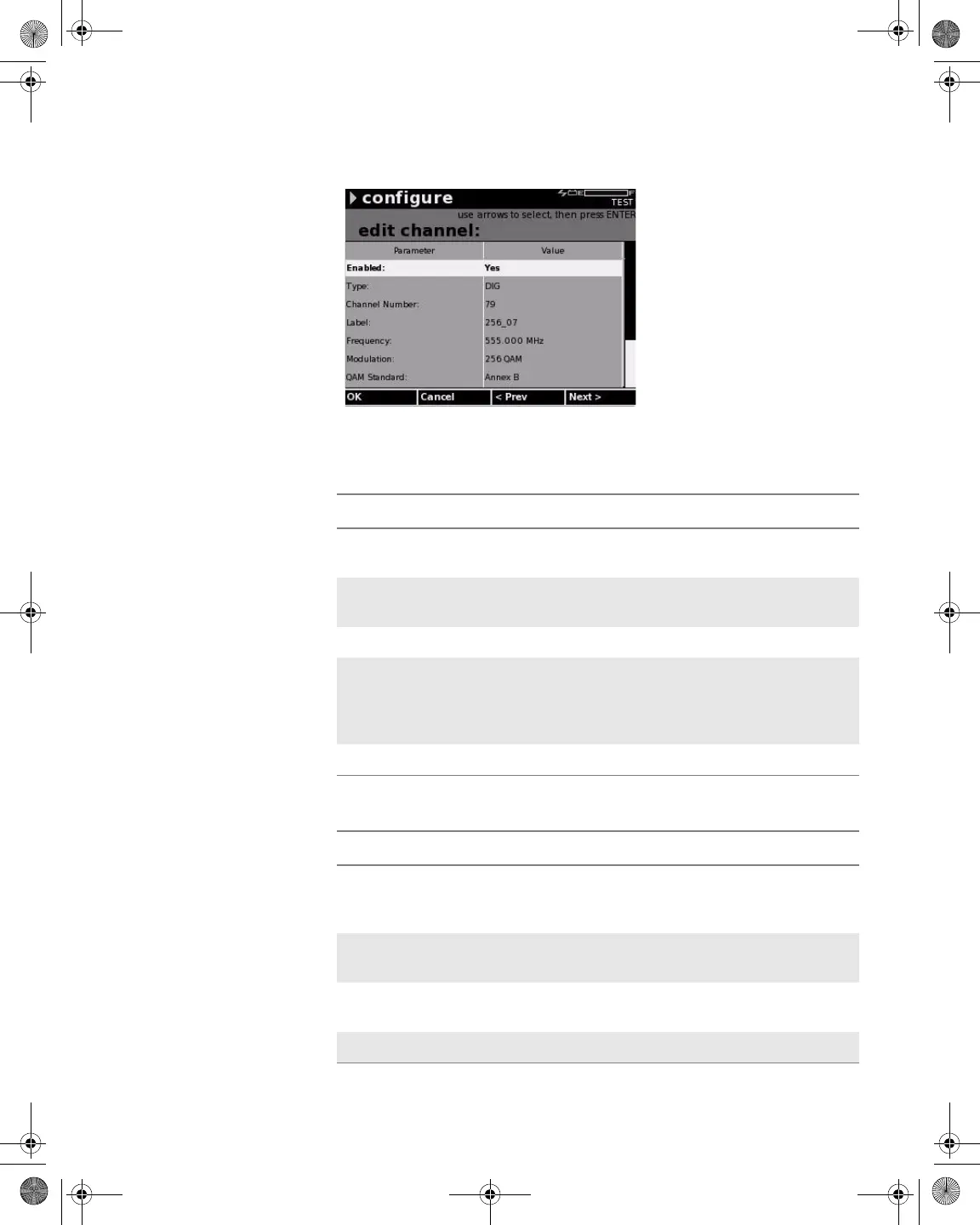

Figure 70 Configure – Edit Channel
Table 29 Common Channel Parameters
Name Description
Enabled Whether or not the channel is enabled. Options are
Yes and No.
Type The channel type. Options are TV, Single, Dual,
DIG and DOCSIS.
Channel Number The number assigned to the frequency.
Label You can create a distinctive label to identify the
channel. The label associates the channel’s number
to programming. The label is displayed to the left of
the channel number on most screens.
Frequency The rate at which the signal pattern is repeated.
Table 30 TV Channel Parameters
Name Description
Video Signal The video signal type. Valid options are NTSC, B/
Pal, B/SECAM, B1/PAL. The default option is
NTSC.
Scrambled An indication of whether the channel is scrambled
or not. Valid options are Yes and No.
CN Enabled (Carrier-to-noise enabled) Valid options are Yes and
No.
Audio 1 Offset Carrier to noise offset for the first audio frequency.
