Chapter 8 Measure Mode – Basic Tab
MiniScan
DSAM Help User Guide Rev. 001 159
Understanding
MiniScan Results
Measurement
Information Area
This area displays information about the current channel. Information
that is displayed in this area includes:
– Overall pass/fail indicator
– Channel label
– Channel type (Single, TV, Dual, Digital, or DOCSIS)
– Channel number
– Test point compensation (if applicable)
Graph
The graph displays channel numbers along the x-axis and signal level
on the y-axis. A vertical bar is displayed above each channel number
and the height of the bar represent the signal level of that channel.
Graph Information
Bar
This bar displays the highest and lowest frequencies of the MiniScan
channels.
NOTE
To save the results to a file, refer to “Saving Results” on page 198.
If you chose the wrong limit set before conducting the test, press
the Limits softkey and select a different limit set to view your test
results in relation to a different limit set without rerunning the test.

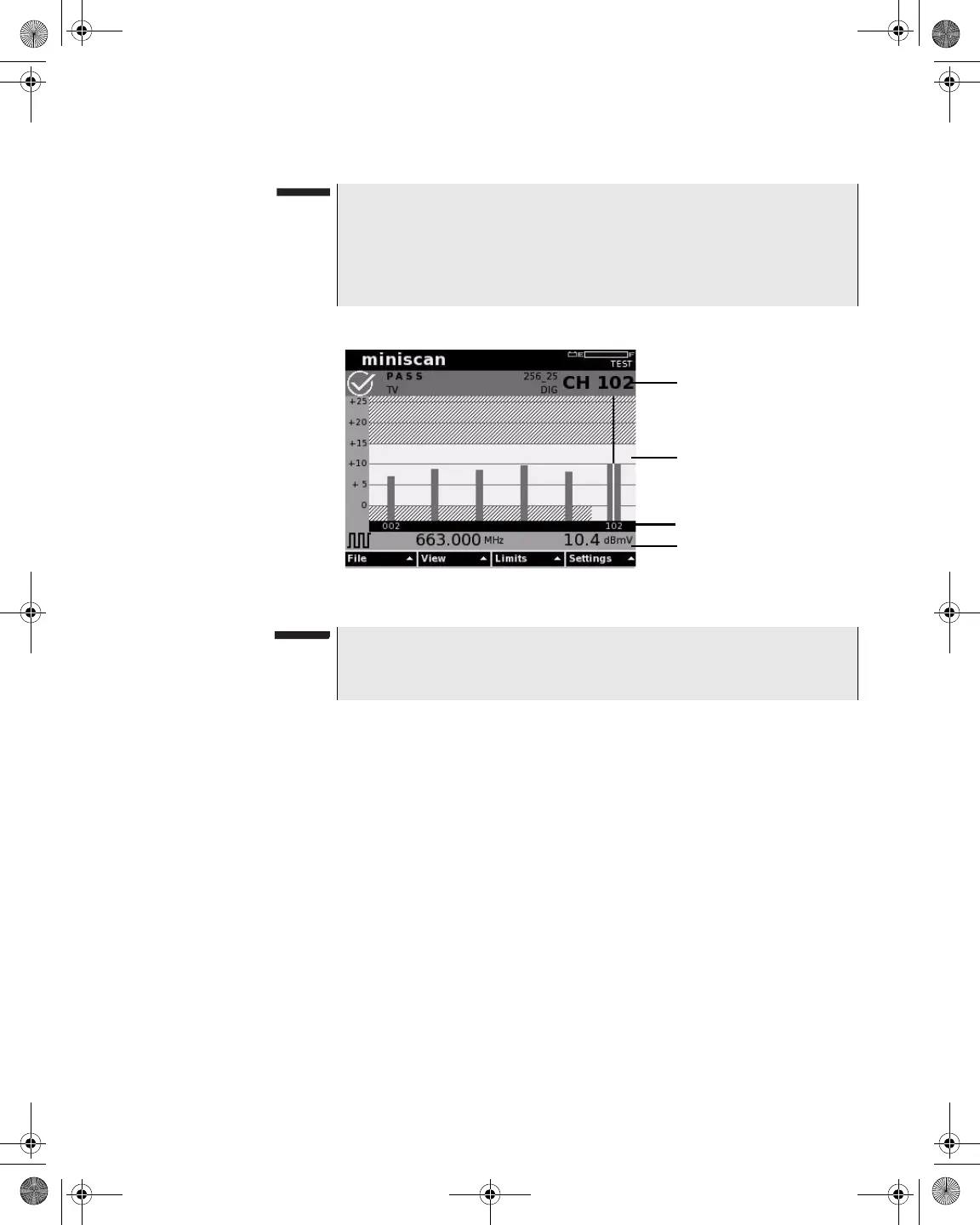

Figure 146 Measure Mode – MiniScan
Measurement
Information Area
Graph
Channel Status Area
Graph Information Bar
NOTE
For information about how to read the graph, see “Reading Mea-
surement Graphs” on page 196.
21128026 R001 DSAM Help User Guide.book Page 159 Thursday, February 5, 2009 2:02 PM
