Chapter 8 Measure Mode – Basic Tab
Level
152 DSAM Help User Guide Rev. 001
The arrow keys provide an alternate method to tune your meter. You
use the left and right arrow keys to increment or decrement the
frequency by the configured step size. (For information about
changing the step size, see “Other Settings” on page 65.)
You use the up and down arrow keys to adjust the graph for the best
viewing, or press the View softkey, and use the arrow keys to highlight
Auto Reference (Shift, 9), then press the ENTER key to automati-
cally view measurement results in the best reference setting.
Channel Tuning
With Channel Tuning, the signal level measurements are displayed on
a graph and as a numeric value for each carrier within the channel.
Relationships between carriers, such as the delta between video and
audio levels, are automatically calculated and displayed. You use the
alphanumeric keys to tune directly to a specific channel.

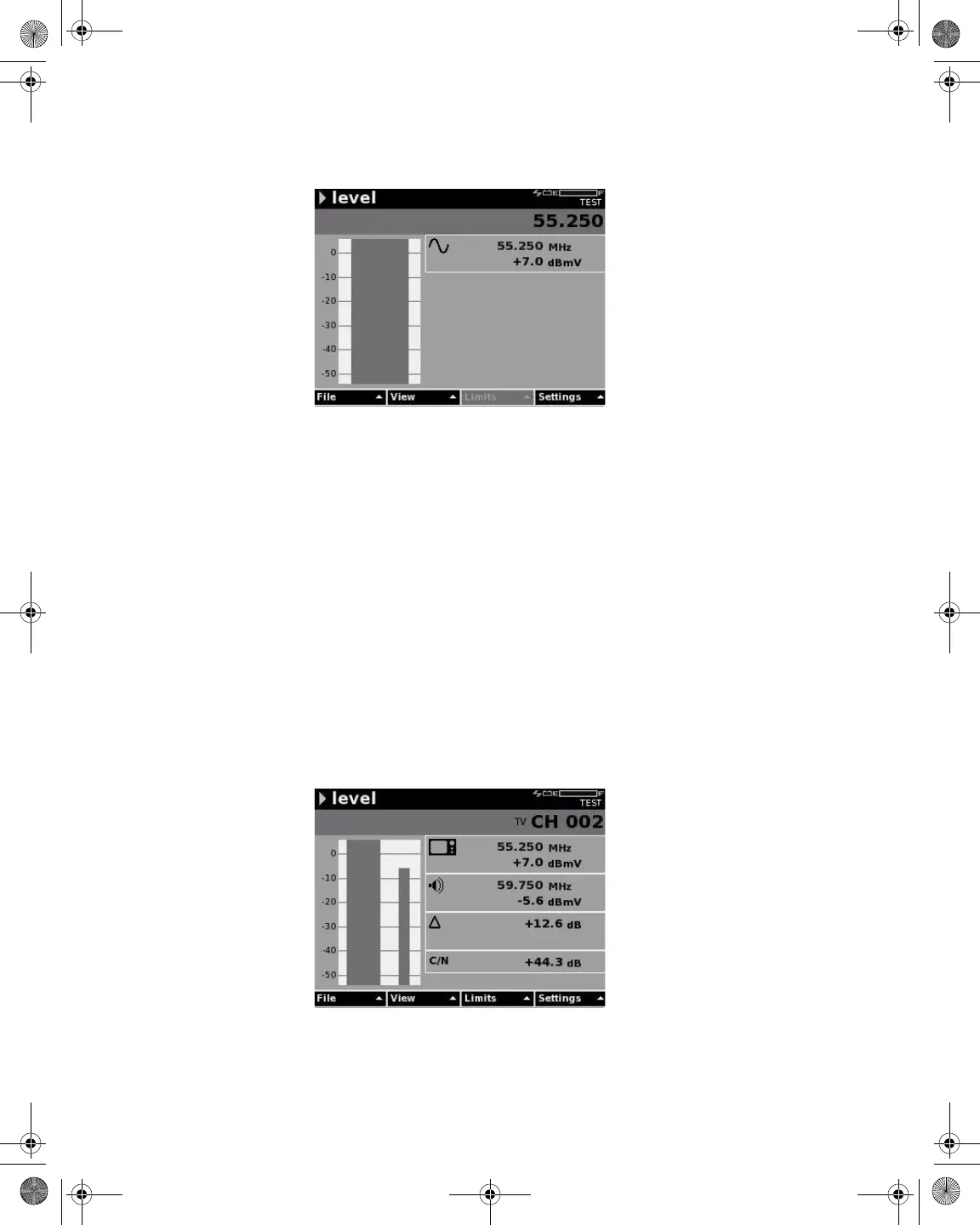

Figure 139 Measure Mode – Level Frequency
Figure 140 Measure Mode – Level Channel
21128026 R001 DSAM Help User Guide.book Page 152 Thursday, February 5, 2009 2:02 PM
