Chapter 5 Configuring the Meter

Configure – Access Tab

DSAM Help User Guide Rev. 001 99

3 Using the arrow keys, select WFA Browser Settings.

4 Press ENTER.

5 Using the arrow keys, select the parameter you want to edit.

6 Press ENTER.

7 Using the arrow keys or the alphanumeric keypad, edit the value.

8 Press ENTER.

9 Press the OK softkey.

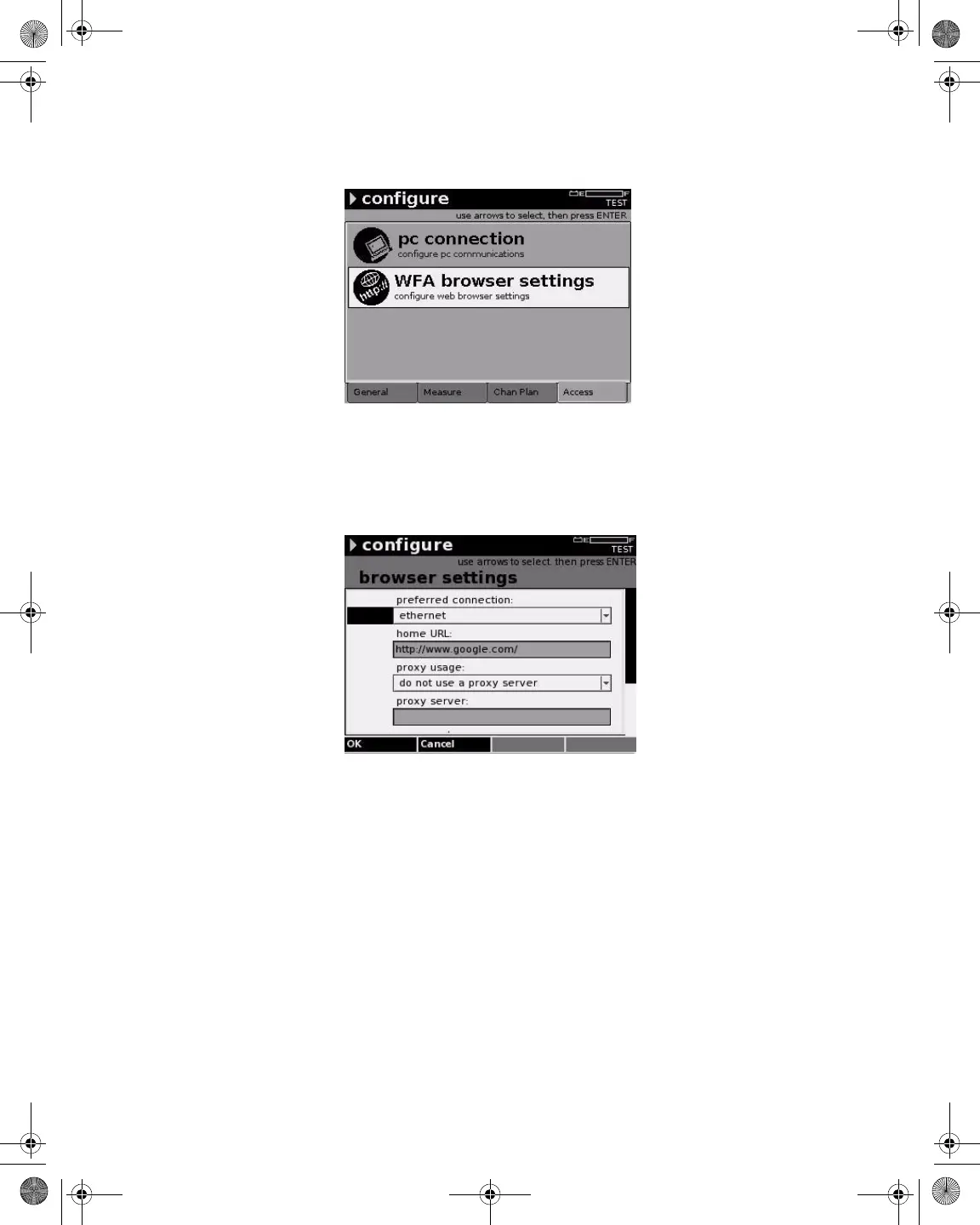

Figure 92 Configure – Access Tab: WFA Browser Settings

Figure 93 Configure – Browser Settings

21128026 R001 DSAM Help User Guide.book Page 99 Thursday, February 5, 2009 2:02 PM
