Chapter 5 Configuring the Meter

Configure – General Tab

42 DSAM Help User Guide Rev. 001

Port Connections

This screen enables you to configure the baud rate of the RS-232 port.

Configuring

Connection Settings

To configure connection settings

1 Press Configure.

2 Press the General softkey.

3 Using the arrow keys, select Connection.

4 Press ENTER.

5 Press ENTER.

6 Using the arrow keys, select an option.

7 Press ENTER.

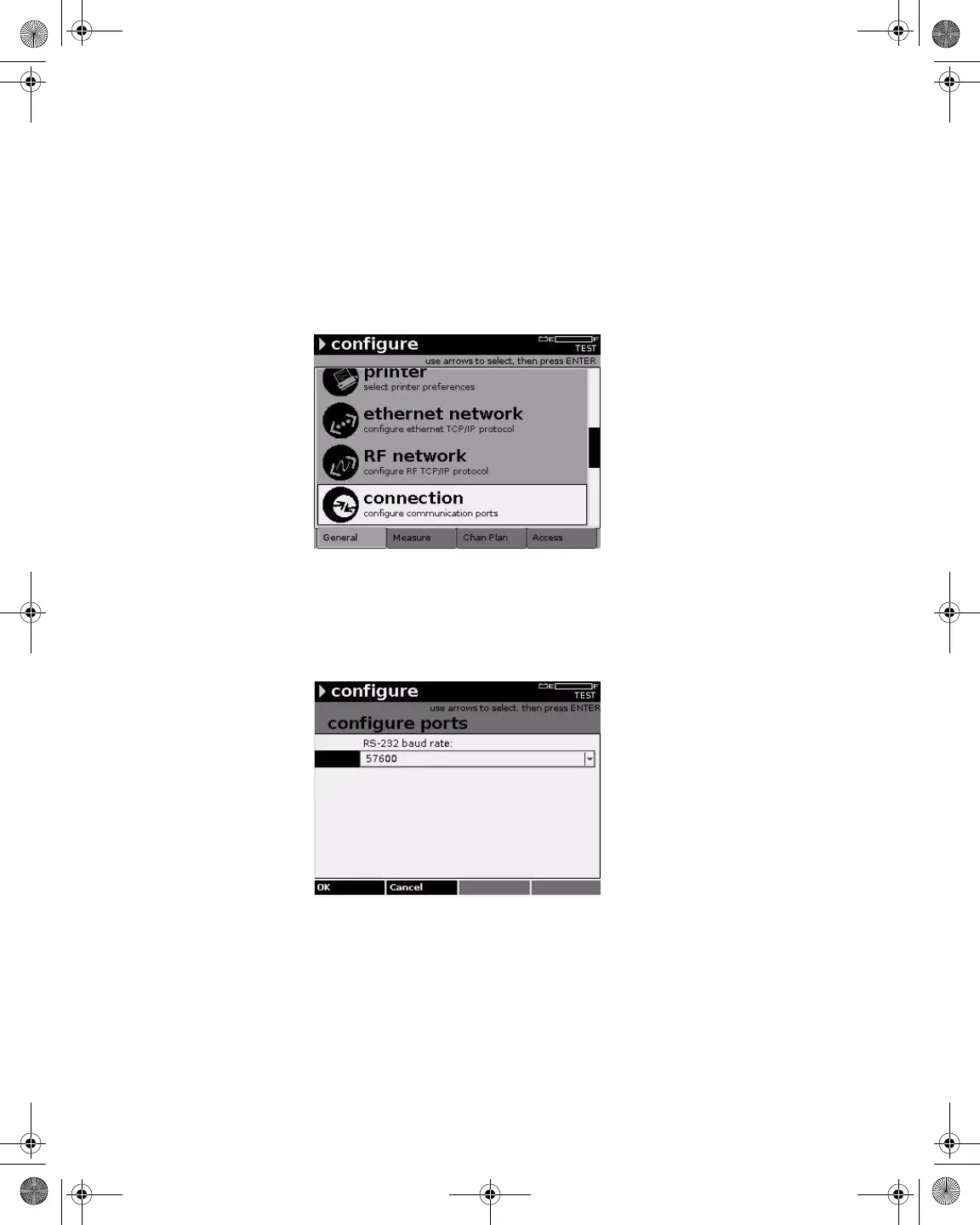

Figure 29 Configure – General Tab: Connection

Figure 30 Configure – Configure Ports
