Chapter 9 Measure Mode – Service Tab
DOCSIS
DSAM Help User Guide Rev. 001 207
4 Using the arrow keys, select a channel plan.
5 Press the Next softkey.
6 To set the roving MAC address as the default, press the Default
softkey.

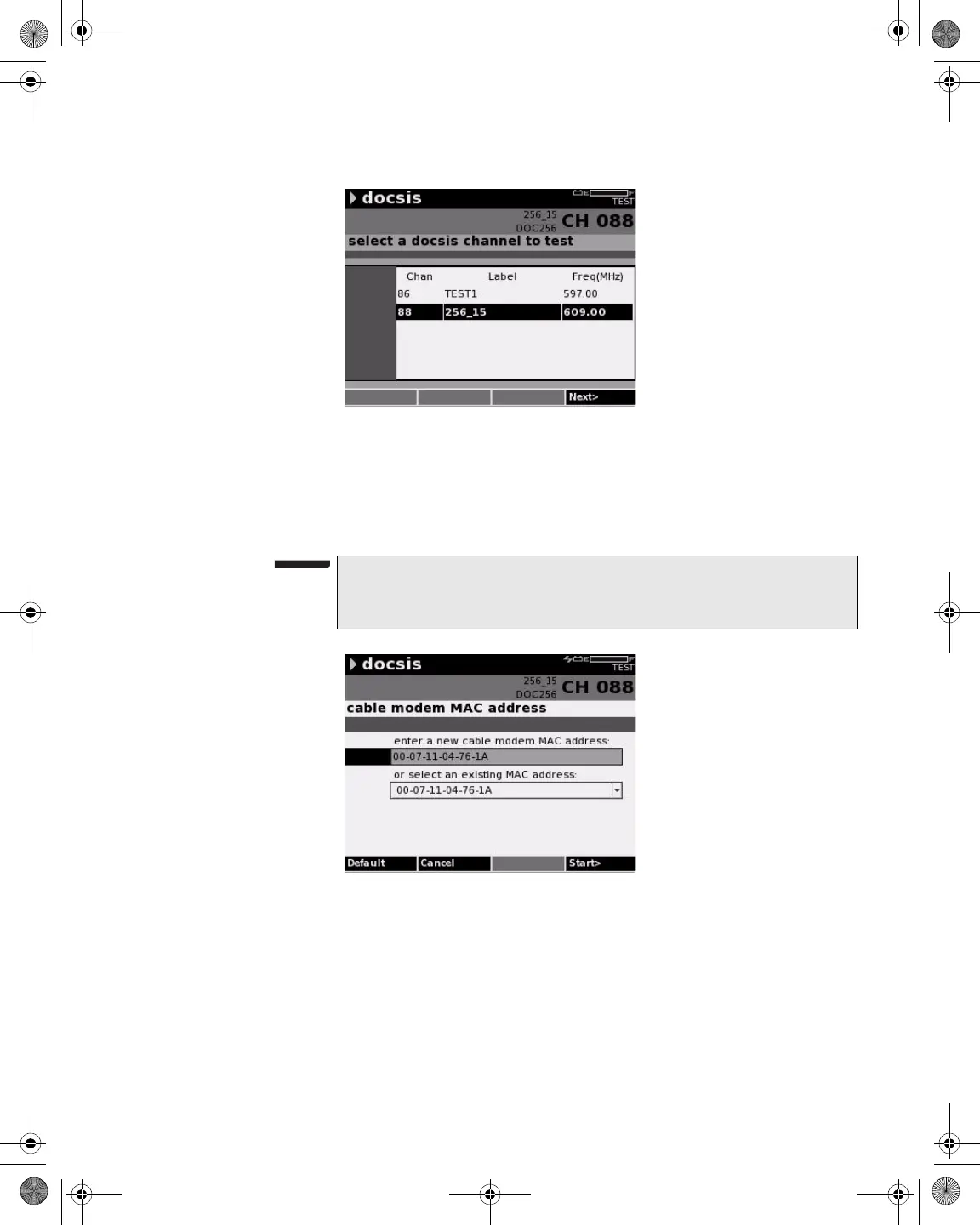

Figure 185 Measure Mode – Select a DOCSIS Channel to
Test
NOTE
Only DOCSIS channels defined in the downstream (forward path)
channel plan are available for DOCSIS measurement testing.
Figure 186 Measure Mode – Cable Modem MAC Address
