Chapter 10 Measure Mode – Spectrum Tab
Field View
DSAM Help User Guide Rev. 001 259
The DSAM displays the spectrum of any node that is currently moni-
tored by the PathTrak or Phasor System and is selected for broadcast.
The PathTrak or Phasor user can select the frequency range in this
mode with the start and stop frequencies indicated on the horizontal
bar at the bottom of the screen. As you move the marker across the
frequency range with the left or right arrow key, the numeric frequency
and level value is displayed below the graph. Use the up and down
arrow keys to adjust the reference level in 1 dB increments.
Running a Field
View
To run a Field View
1 Press Measure.
2 Press the Spectrum softkey.
3 Using the arrow keys, select Field View.
4 Press ENTER.

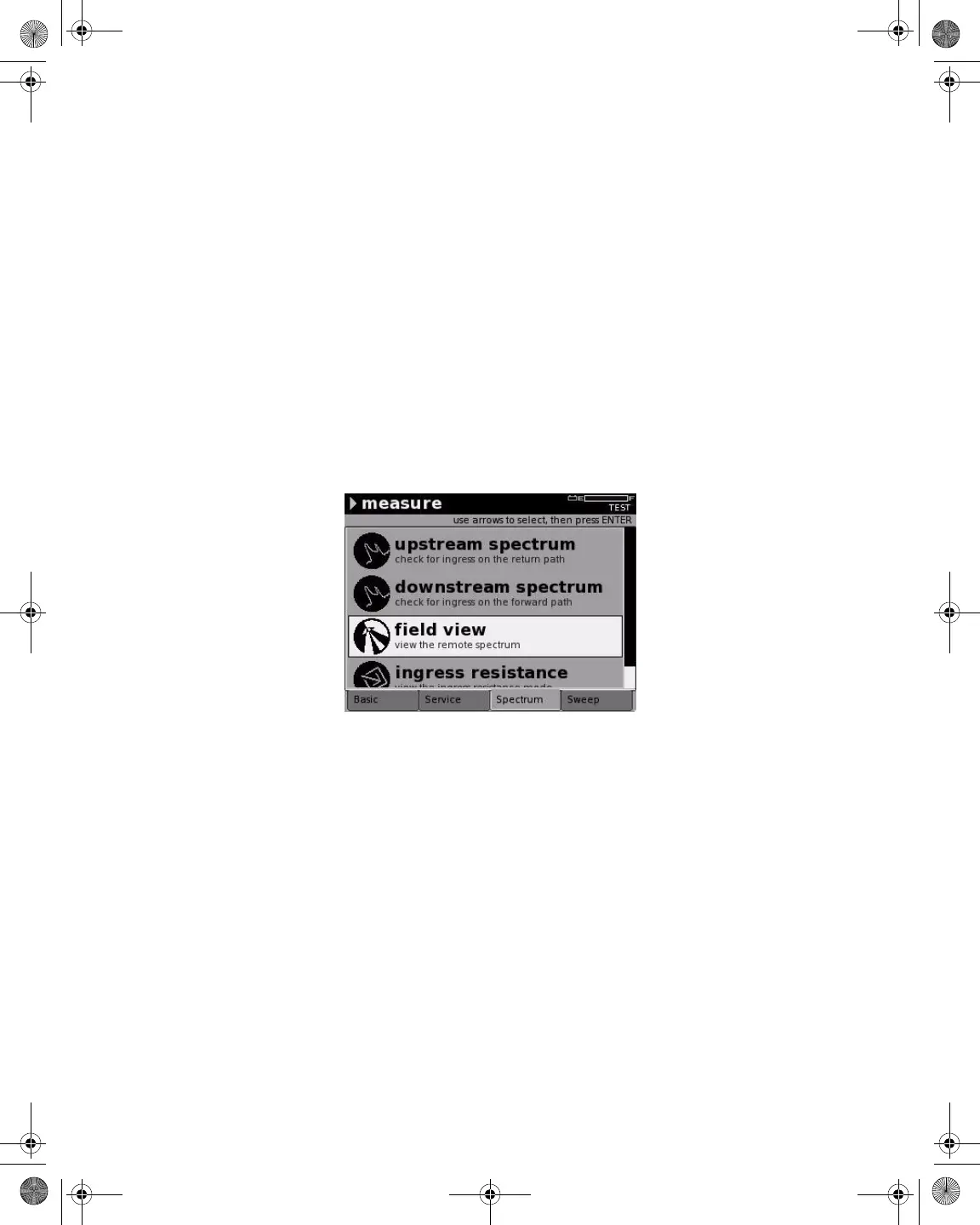

Figure 236 Measure Mode – Field View
21128026 R001 DSAM Help User Guide.book Page 259 Thursday, February 5, 2009 2:02 PM
