Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
86 DSAM Help User Guide Rev. 001
To configure access channels
1 Press Configure.
2 Press the Chan Plan softkey.
3 Using the arrow keys, select Downstream Plans.
4 Press ENTER.
5 Using the arrow keys, select the plan you want to work with.
6 Press the Plan softkey.
7 Using the arrow keys, select Access Channels.
8 Press ENTER.
9 Using the arrow keys, select the channel you want to include.
10 Press the Select softkey.
Configuring
Telemetry Frequency
The Telemetry frequency is the frequency used to transmit data from
the headend modem to the DSAM. Telemetry frequency on the DSAM
must match the frequency at which the headend modem (HSM 1000)
is broadcasting. The valid frequency range is between 50 MHz and
1000 MHz.
To configure telemetry frequency
1 Press the Plan softkey.
2 Using the arrow keys, select Telemetry.

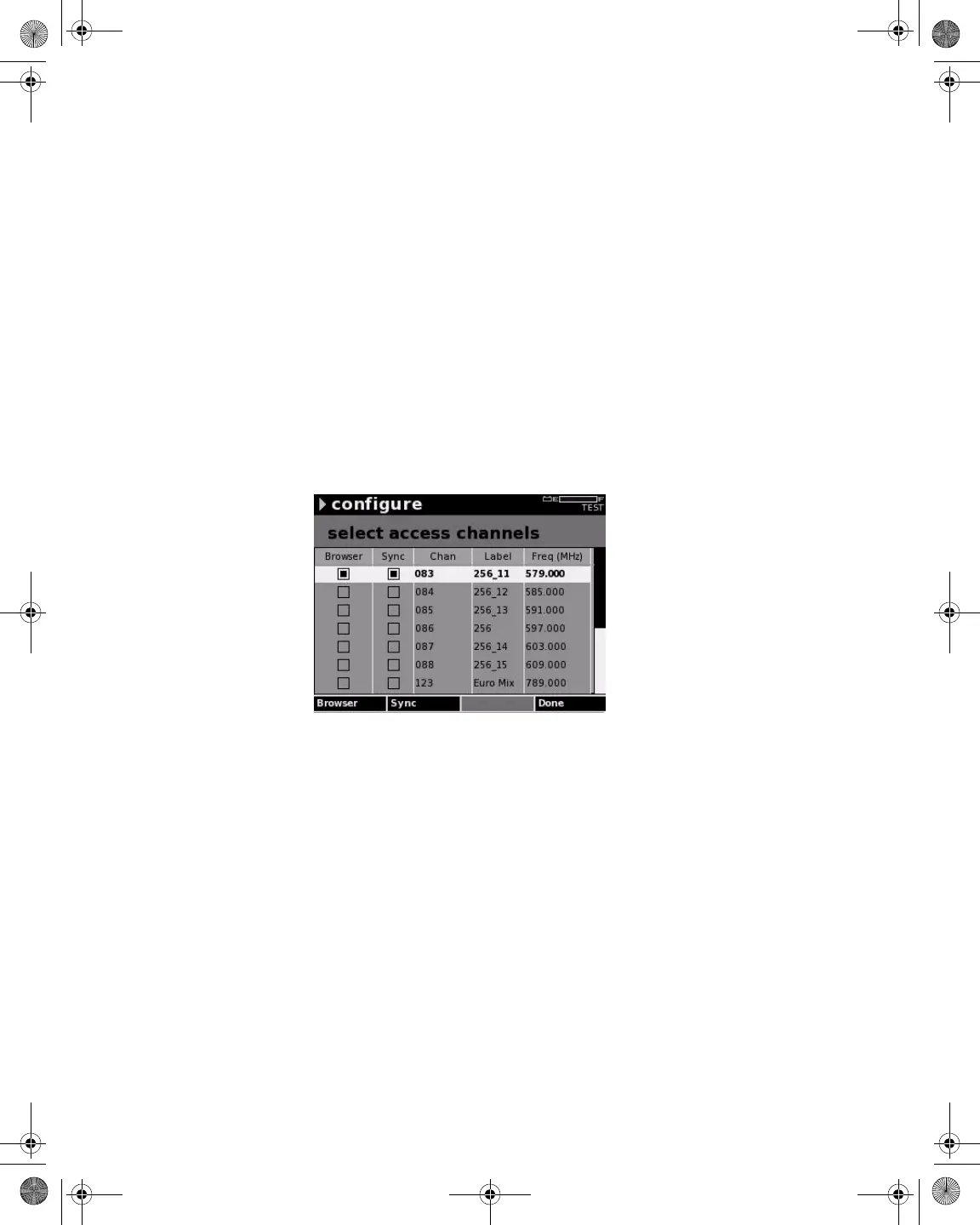

Figure 73 Configure – Select Access Channels
21128026 R001 DSAM Help User Guide.book Page 86 Thursday, February 5, 2009 2:02 PM
