Chapter 5 Configuring the Meter

Configure – General Tab

DSAM Help User Guide Rev. 001 43

8 Press the OK softkey.

Regional

Preferences

Use the Set Local Preferences screen to specify the type of language,

date format, signal level units, temperature units, and digital perfor-

mance units.

Configuring Regional

Preferences

To configure regional settings

1 Press Configure.

2 Press the General softkey.

3 Using the arrow keys, select Regional Preferences.

4 Press ENTER.

Table 19 Connection Parameters

Name Description

RS-232 Baud

Rate

The signaling rate of the RS-232 port. The default

option is 57600.

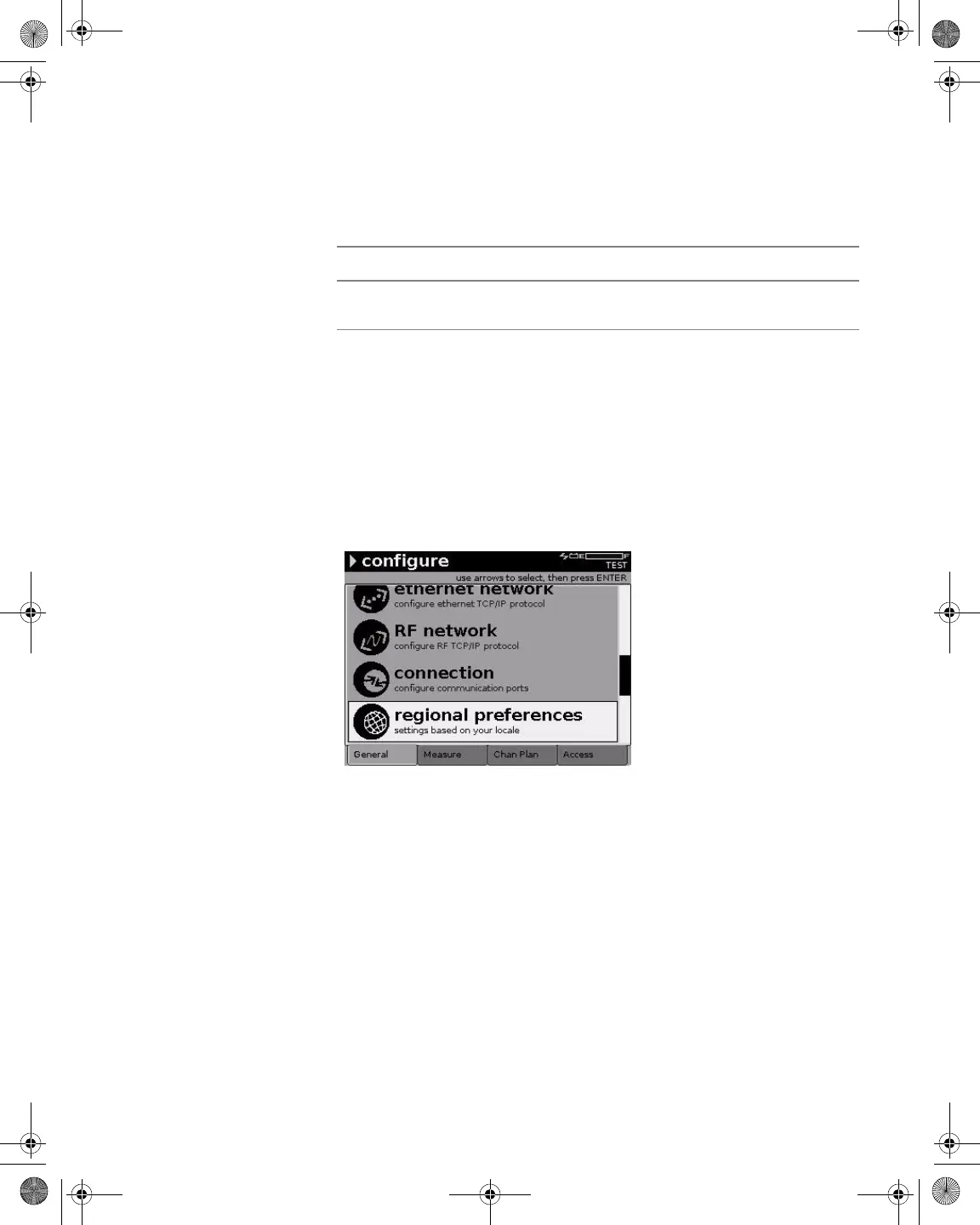

Figure 31 Configure – General Tab: Regional Preferences

21128026 R001 DSAM Help User Guide.book Page 43 Thursday, February 5, 2009 2:02 PM
