Chapter 5 Configuring the Meter
Configure – General Tab
DSAM Help User Guide Rev. 001 51
3 Using the arrow keys, select Diagnostic.
4 Press ENTER.
5 Using the arrow keys, select Test the Keypad.
6 Press ENTER.
An image of the keypad is displayed. When you press each key on
the pad, it is highlighted on the screen if functioning properly. The
key should remain highlighted as long as you press it.

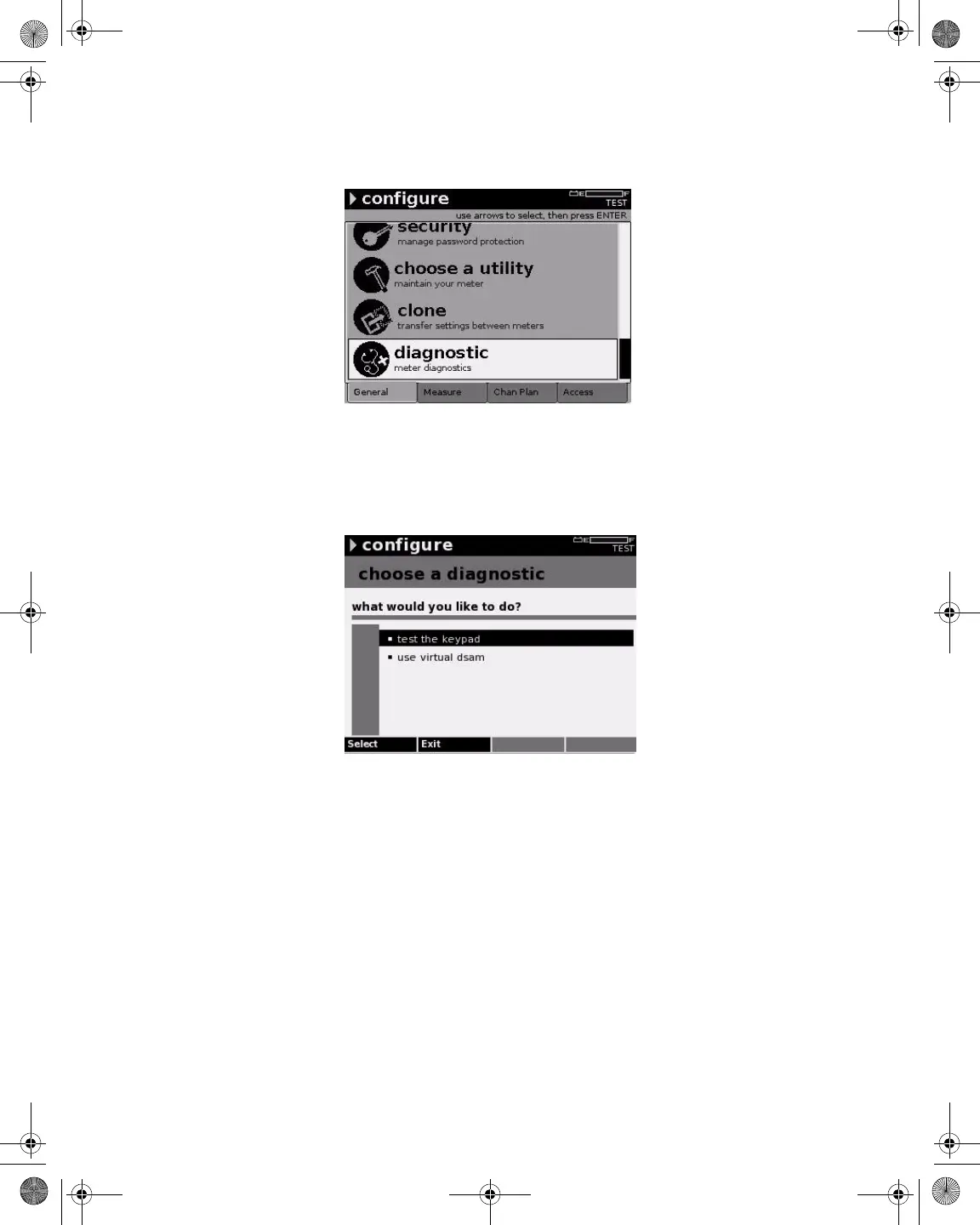

Figure 39 Configure – General Tab: Diagnostic
Figure 40 Configure – Choose a Diagnostic
21128026 R001 DSAM Help User Guide.book Page 51 Thursday, February 5, 2009 2:02 PM
