Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
84 DSAM Help User Guide Rev. 001
Configuring Channels
for MiniScan
To configure channels for MiniScan
1 Press Configure.
2 Press the Chan Plan softkey.
3 Using the arrow keys, select Downstream Plans.
4 Press ENTER.
5 Using the arrow keys, select the plan you want to work with.
6 Press the Plan softkey.
7 Using the arrow keys, select MiniScan Channels.
8 Press ENTER.
9 Using the arrow keys, select a channel you want to include.
10 Press the Select softkey.
Symbol Rate The symbol rate corresponds to the size and shape
(bandwidth) of the digital signal. The symbol rate
changes to carrier bandwidth if you select “Other”
for Modulation.
Inverted Spec-
trum
Designates whether or not the signal is inverted.
Valid options are Yes and No. The default option is
No.
Table 34 DOCSIS Channel Parameters (Continued)
Name Description

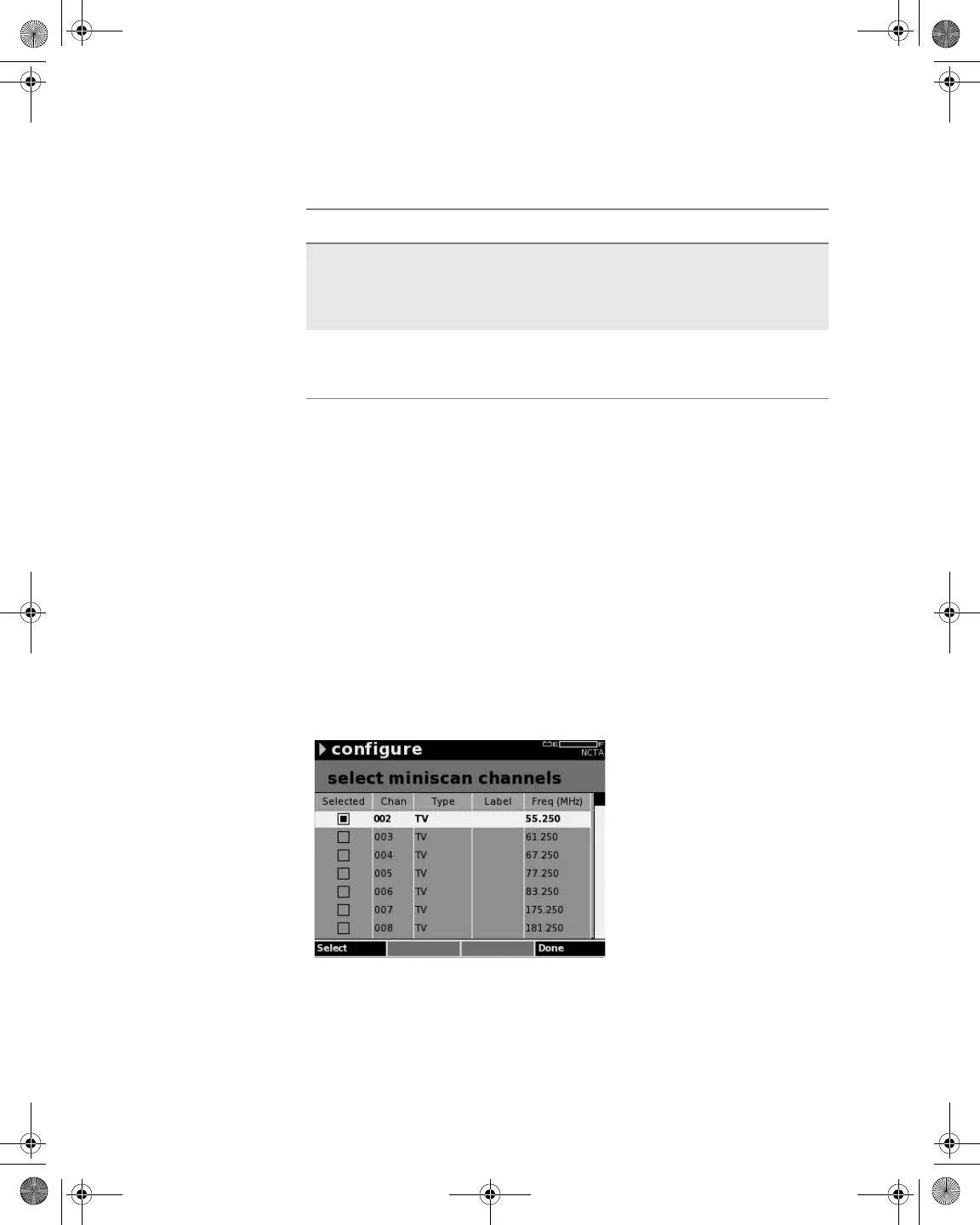

Figure 71 Configure – Select MiniScan Channels
