Chapter 8 Measure Mode – Basic Tab
Saving Results
DSAM Help User Guide Rev. 001 199
4 Using the arrow keys and the alphanumeric keypad, enter a file
name for your results.
5 Press the Save softkey.
If Location Settings is enabled through TPP, the Edit Location
Settings screen is displayed.
6 Using the arrow keys, select the parameter you want to edit.
7 Press ENTER.
OR
8 To use the default location settings, press the Default softkey.
9 Press the OK softkey.
OR

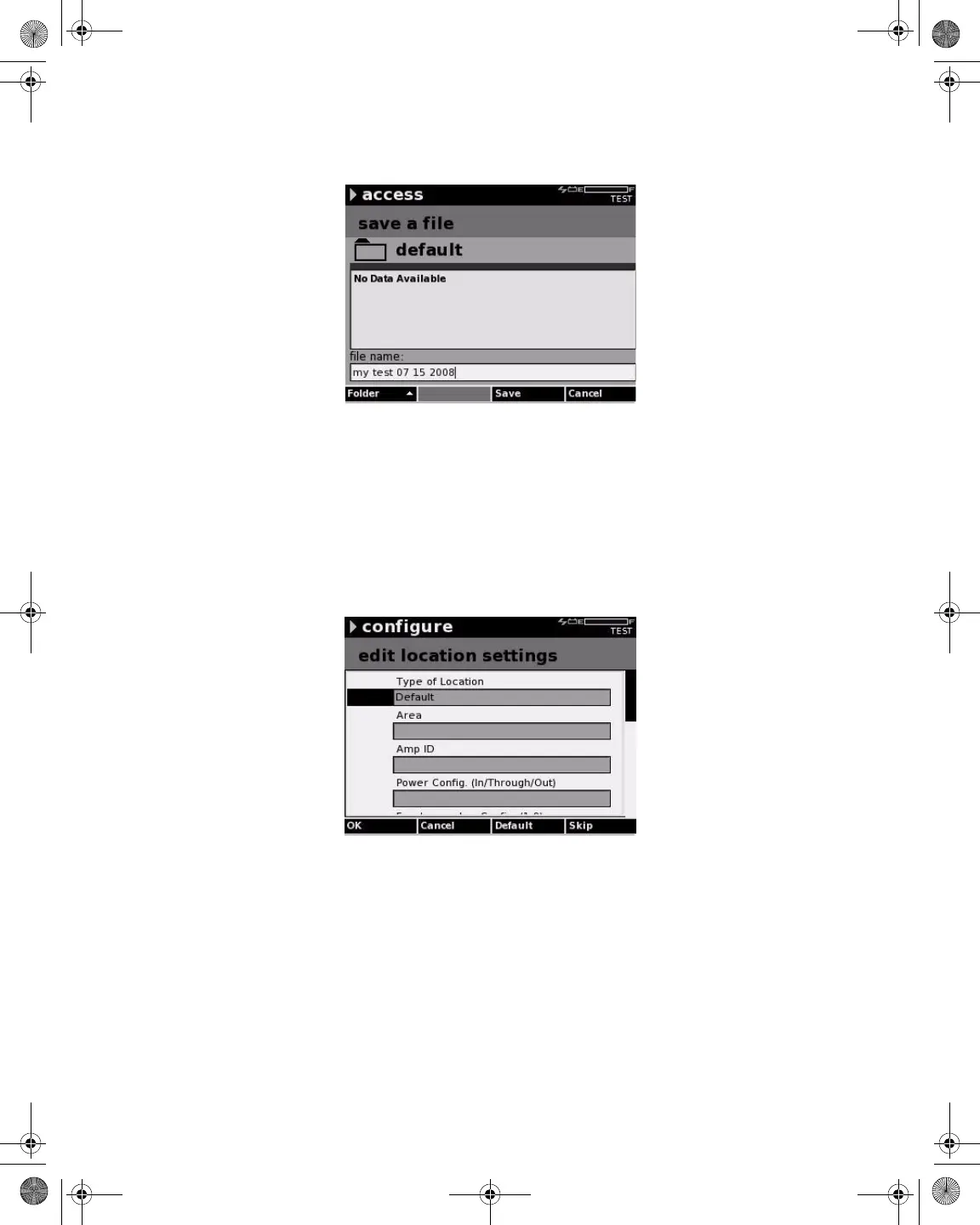

Figure 180 Save a File screen
Figure 181 AutoTest – Edit Location Settings
