Chapter 5 Configuring the Meter

Configure – General Tab

DSAM Help User Guide Rev. 001 39

Configuring Ethernet

Settings

To configure Ethernet settings

1 Press Configure.

2 Press the General softkey.

3 Using the arrow keys, select Ethernet Network.

4 Press ENTER.

5 Using the arrow keys, select the parameter you want to edit.

6 Press ENTER.

7 Using the arrow keys and the alphanumeric keypad, edit the

value.

8 Press ENTER.

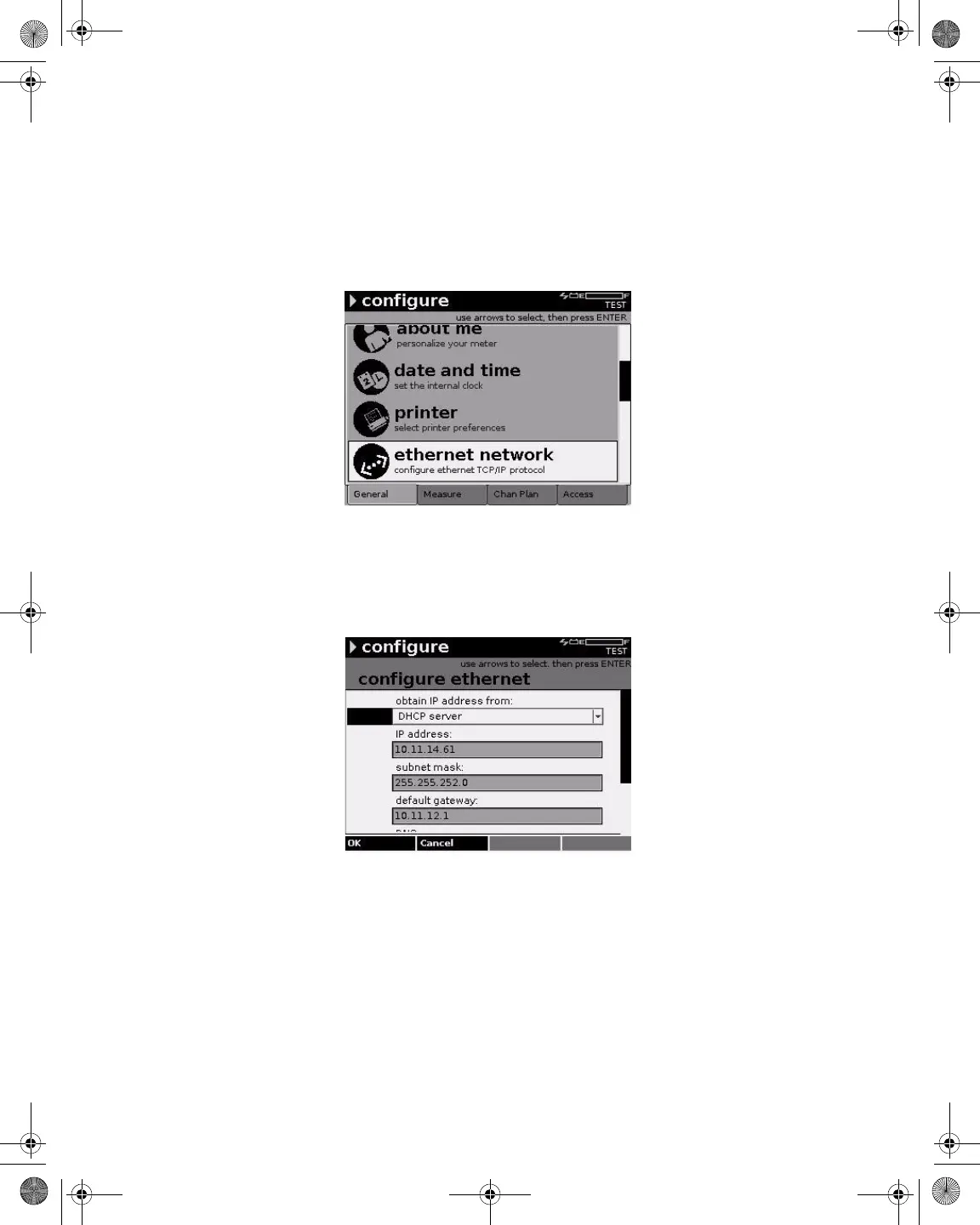

Figure 25 Configure – General Tab: Ethernet Network

Figure 26 Configure Mode – Configure Ethernet
