Chapter 10 Measure Mode – Spectrum Tab

Downstream Spectrum

DSAM Help User Guide Rev. 001 253

frequency spans. The Downstream Spectrum measurement mode

allows for a very comprehensive troubleshooting utility that reveals

ingress spikes on the forward path as brief as 1 ms.

Running a

Downstream

Spectrum

To run a downstream spectrum

1 Press Measure.

2 Press the Spectrum softkey.

3 Using the arrow keys, select Downstream Spectrum.

4 Press ENTER.

5 Press the Settings softkey.

6 Using the arrow keys, select Center Frequency.

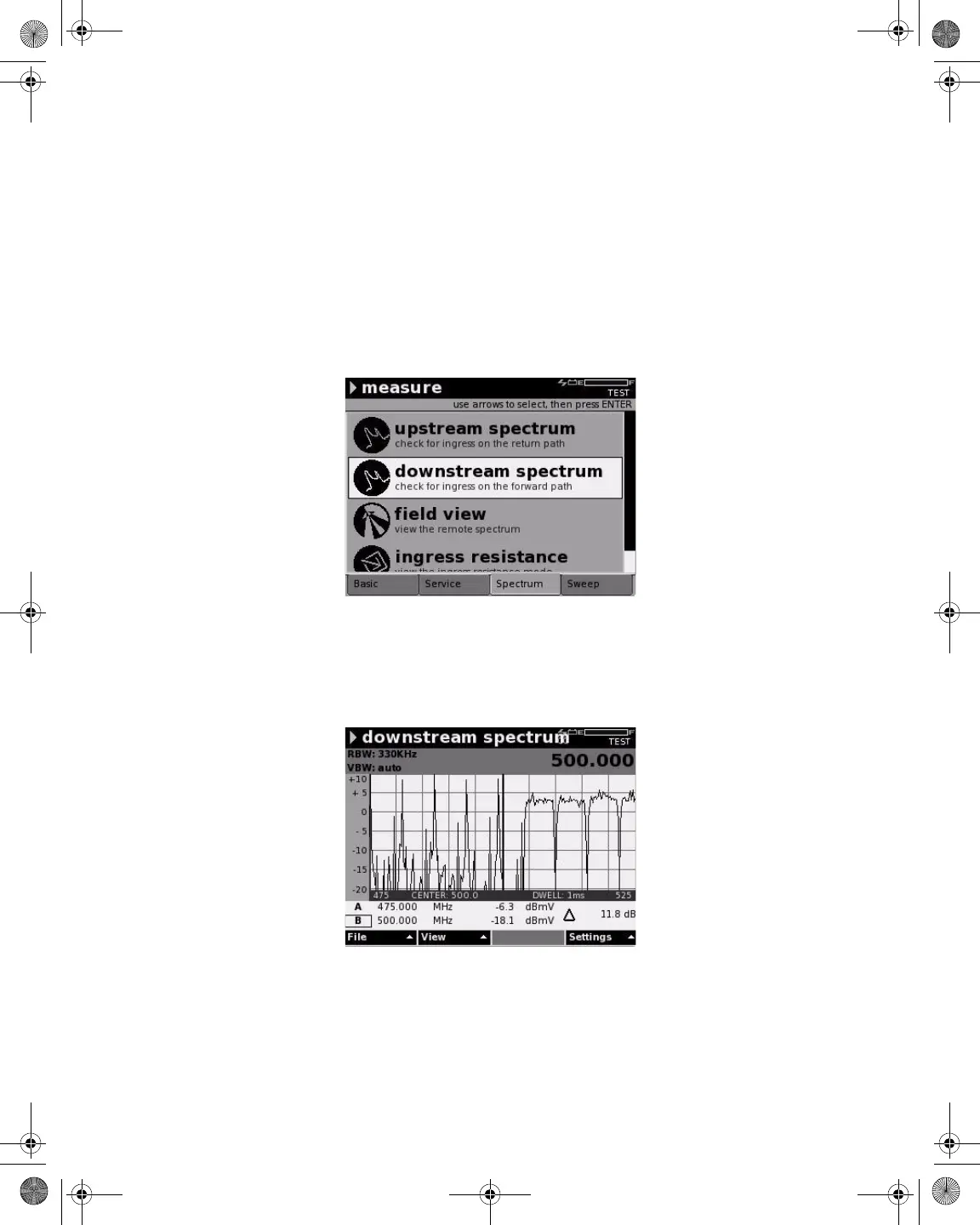

Figure 229 Spectrum – Downstream Spectrum

Figure 230 Spectrum – Downstream Spectrum
