Chapter 5 Configuring the Meter
Configure – Measure Tab
58 DSAM Help User Guide Rev. 001
Limit Sets
Use Limit Sets to configure the limit sets for measurements for tap,
ground block, TV, cable modem, proof, and up to three custom limits.
The limit set parameters you define remain constant for all channel
plans and measurement modes.
Configuring Limit
Sets
To configure limit sets
1 Press Configure.
2 Press the Measure softkey.
3 Using the arrow keys, select Limit Sets.
4 Press ENTER.
5 Using the arrow keys, select the limit set you want to edit.
6 Press the Edit softkey.

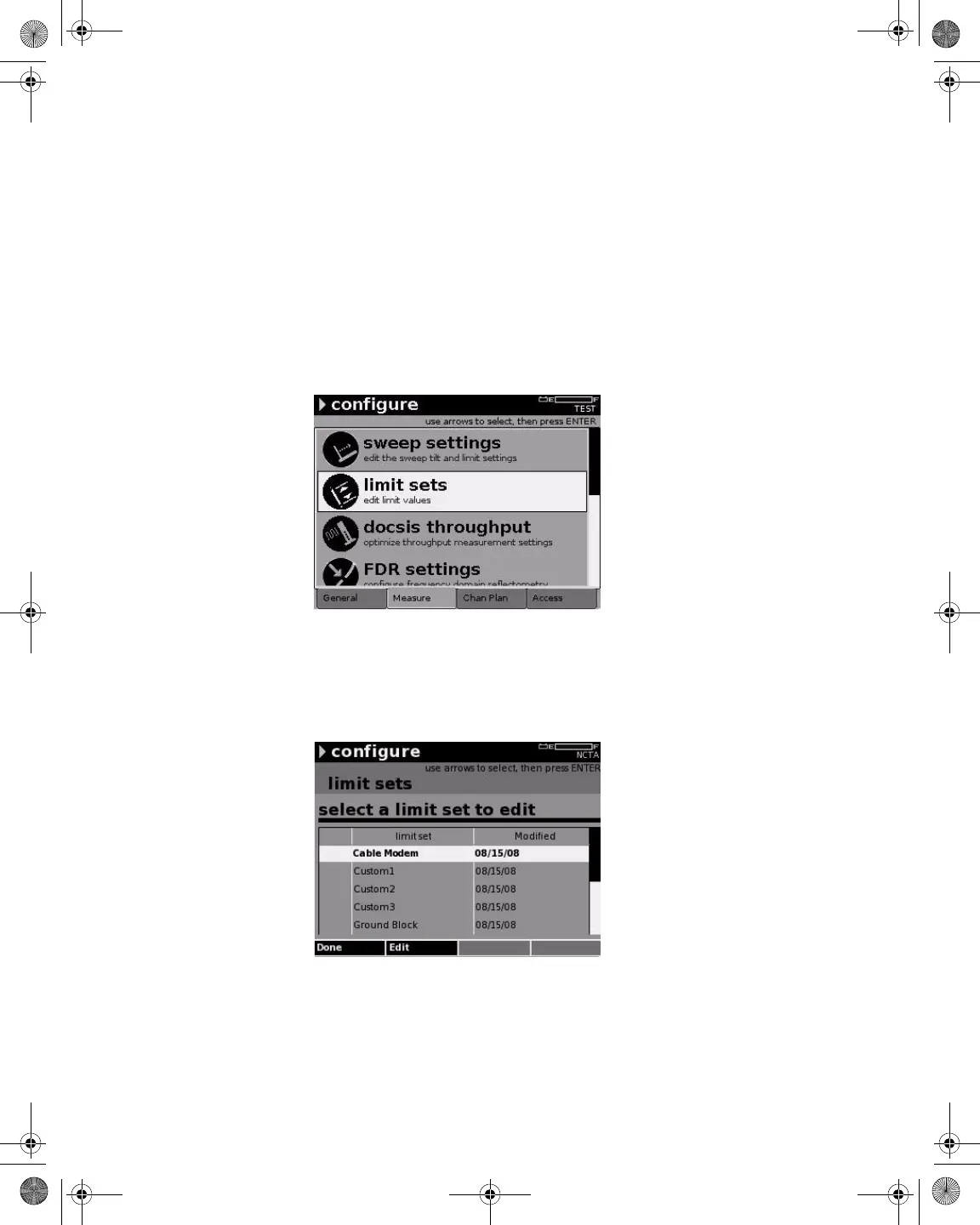

Figure 48 Configure – Measure Tab: Limit Sets
Figure 49 Configure – Limit Sets
21128026 R001 DSAM Help User Guide.book Page 58 Thursday, February 5, 2009 2:02 PM
