Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
DSAM Help User Guide Rev. 001 87
3 Press ENTER.
4 Using the arrow keys, select a parameter.
5 Press ENTER.
6 Using the arrow keys and the alphanumeric keypad, enter a
telemetry frequency between 50 MHz and 1000 MHz.
7 Press ENTER.
8 Press the OK softkey.

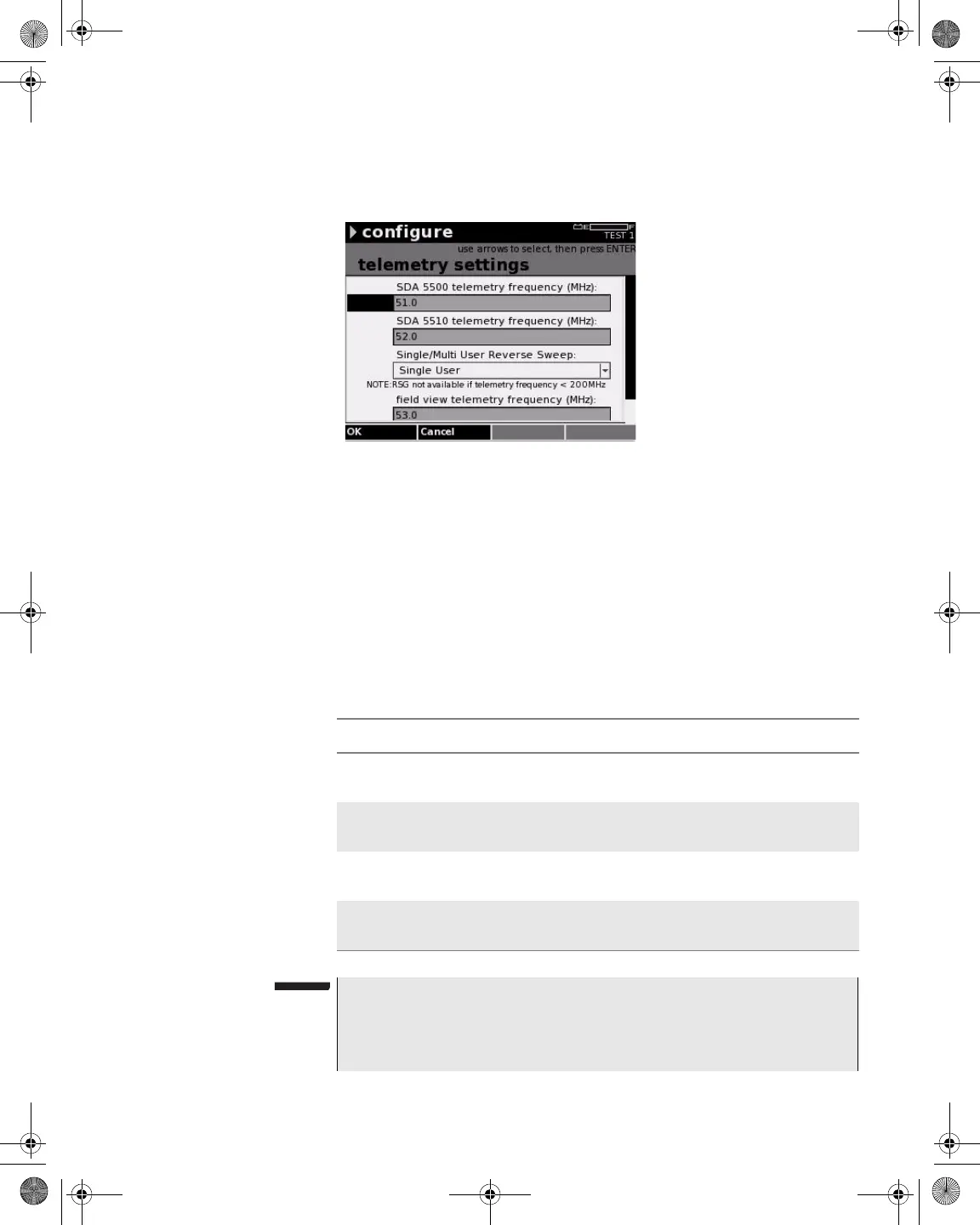

Figure 74 Configure – Telemetry Settings
Table 35 Telemetry Settings Parameters
Name Description
SDA 5500 Telemetry
Frequency (MHz)
The transmission frequency of the SDA 5500.
SDA 5510 Telemetry
Frequency (MHz)
The transmission frequency of the SDA 5510.
Single/Multi User
Reverse Sweep
Valid options are Single User (for SDA 5500)
and Multi User (for SDA5510).
Field View Telemetry
Frequency (MHz)
The transmission frequency of the HSM.
NOTE
When you configure a telemetry setting, the parameters apply only
to the current active plan. Other channel plans require their own
telemetry configuration.
