Chapter 5 Configuring the Meter
Configure – Channel Plan Tab
DSAM Help User Guide Rev. 001 91
7 Using the arrow keys, select a channel you want to include or
exclude.
8 Press the Select softkey.
9 Press the MER softkey to include the measurement as a part of
the AutoTest. (The MER softkey is enabled when modulation error
ratio measurements are available on certain digital channels.)
10 Press the BER softkey to include the measurement as a part of
the AutoTest. (The BER softkey is enabled when bit error ratio
measurements are available on certain digital channels.)
11 Press the Done softkey.
Build New Plan
Use the Build New Plan option to let the meter identify and charac-
terize the channels in your system.
Building a New
Channel Plan
To build a new channel plan
1 Press Configure.
2 Press the Chan Plan softkey.

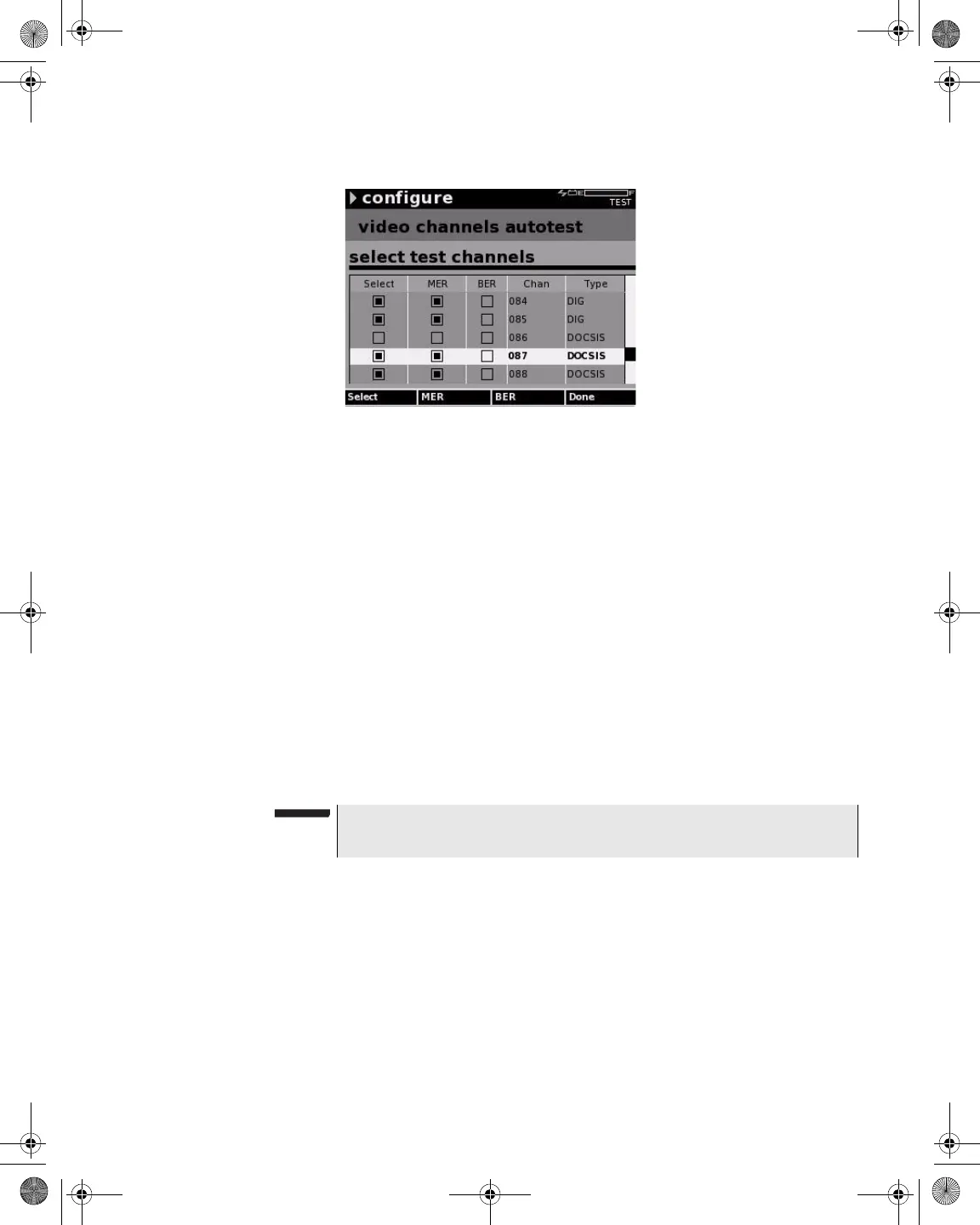

Figure 80 Configure Mode – Video Channels AutoTest
NOTE
The built plan will consist of only analog TV channels.
