Chapter 5 Configuring the Meter
Configure – Access Tab
96 DSAM Help User Guide Rev. 001
4 Press ENTER.
5 Using the arrow keys, select the parameter you want to edit.
6 Press ENTER.
7 Using the arrow keys and the alphanumeric keypad, edit the
value.
8 Press ENTER.
9 Press the OK softkey.
Location Settings
Parameters
Location Settings parameters are uniquely defined in TPP.
Configure
–
Access Tab
The Access tab enables you to select a PC connection (Ethernet or
RF) and to define the IP address.
The Access tab also provides WFA browser parameters to enter the
preferred ethernet or RF connection, home URL, proxy server param-
eters (optional) and CM diagnostic web page information.
PC Connection
Use the PC Connection screen to select which network interface to
use (Ethernet or RF) to connect to a PC, and the IP address at which
the PC is located. The default connection is Ethernet and the valid IP
address range is from 0.0.0.0 to 255.255.255.255. (This is for
connecting to a PC with TPP or FDM100 installed.)

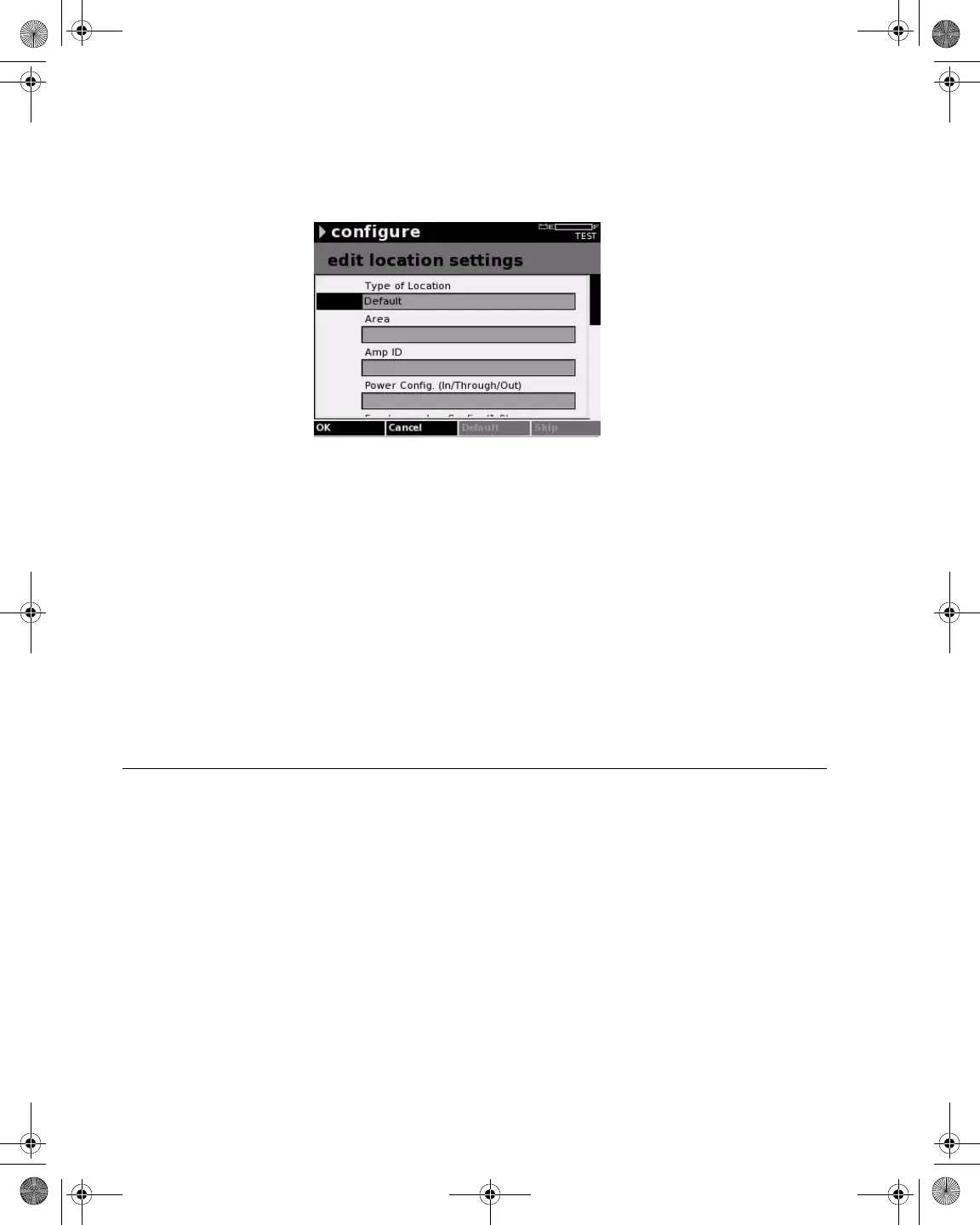

Figure 89 Configure – Edit Location Settings
21128026 R001 DSAM Help User Guide.book Page 96 Thursday, February 5, 2009 2:02 PM
