Chapter 8 Measure Mode – Basic Tab
Full Scan
DSAM Help User Guide Rev. 001 165
Measurement
Information Area
This area displays information about the current channel. Information
that is displayed in this area includes:
– Overall pass/fail indicator
– Channel label
– Channel type (Single, TV, Dual, Digital, or DOCSIS)
– Channel number
– Test point compensation (if applicable)
– High sensitivity indicator
Setting the Full
Scan Speed
To set the scan speed
1 Press the Settings softkey.
2 Using the arrow keys, select Normal Scan or Fast Scan.
3 Press ENTER.

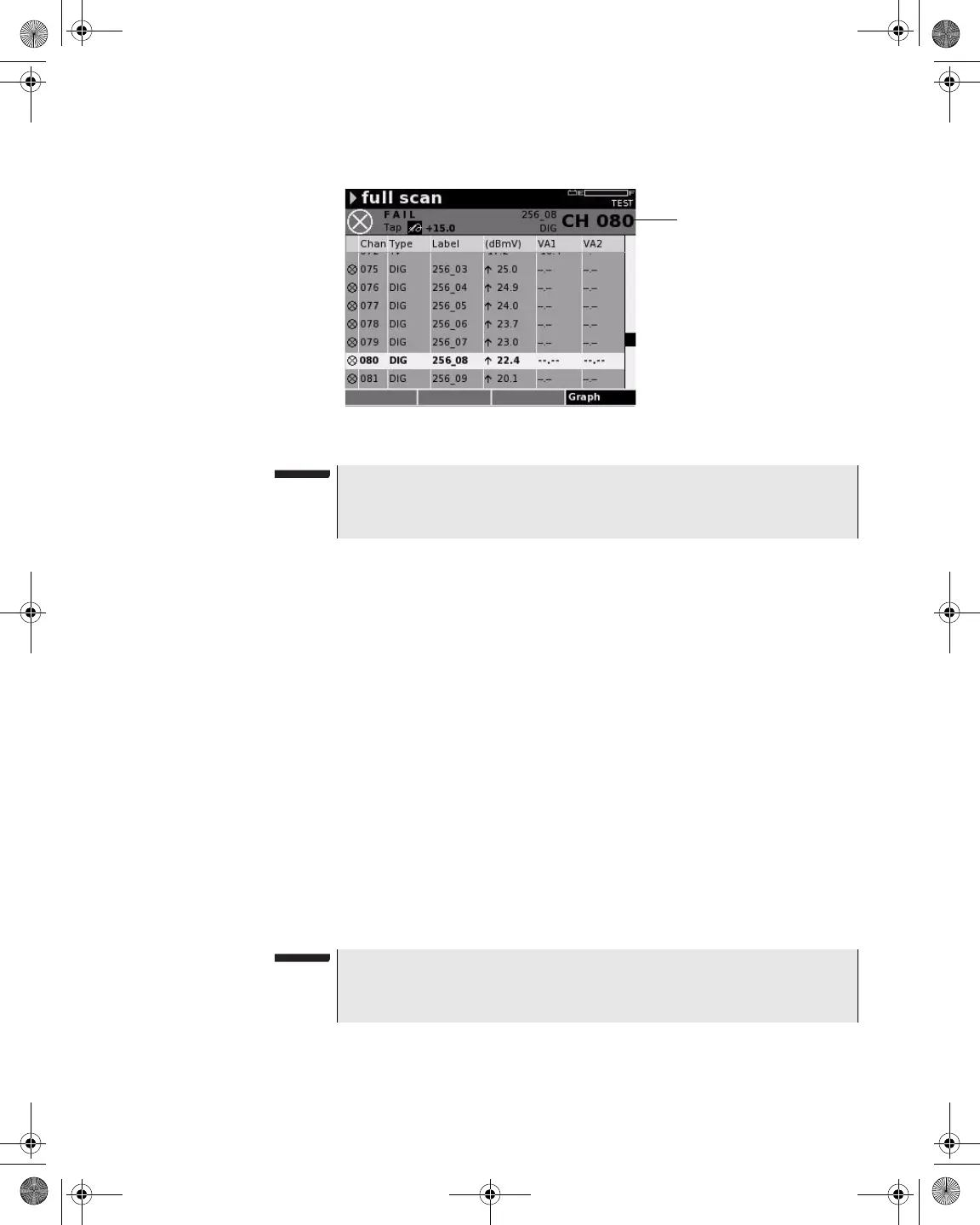

Figure 150 Measure Mode – Full Scan Table
Measurement
Information Area
NOTE
For information about how to read the graph, see “Reading Mea-
surement Graphs” on page 196.
NOTE
A normal scan spends more time analyzing each channel, which
provides the most accurate measurement.
