Chapter 8 Measure Mode – Basic Tab
MiniScan
160 DSAM Help User Guide Rev. 001
Channel Status Area
This area of the screen displays the channel type icon, channel
frequency, and level.
Choosing
MiniScan
Channels
To select MiniScan channels
1 Press the Settings softkey.
2 Using the arrow keys, select MiniScan Channels.
3 Press ENTER.
4 Using the arrow keys and the Select softkey, select up to twelve
channels to include in the scan.
5 Press the Done softkey.
Viewing MiniScan
Results
To view MiniScan results in different ways
1 Press the View softkey.
2 Using the arrow keys, select one of the following options:
Auto Reference (Shift, 9) – Enables you to automatically view
measurement results in the best reference setting on the graph.

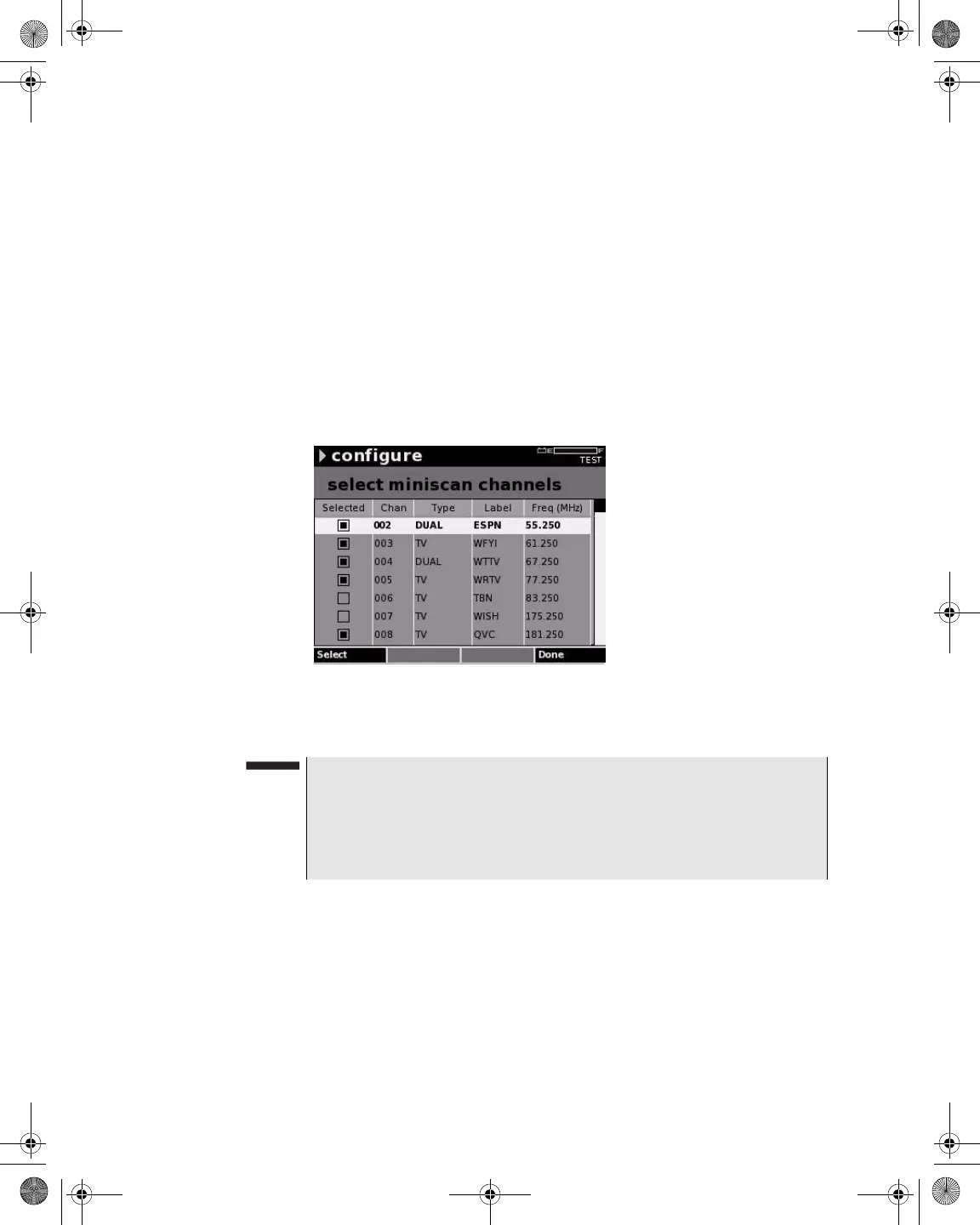

Figure 147 Measure Mode – MiniScan Channels
NOTE
You can also select channels for MiniScan from “Configuring Chan-
nels for MiniScan” on page 84.
When changing the channel plan using the Settings softkey, refer to
“Downstream Plans” on page 78.
