Chapter 8 Measure Mode – Basic Tab
Full Scan
DSAM Help User Guide Rev. 001 167
10 Using the arrow keys and the Enable softkey, select channels to
include in the scan.
11 Press the Done softkey.
Enabling Audio
Carrier Level for
Full Scan
When audio carrier level measurement is enabled, each vertical bar
that represents a channel level reading has two colors (if that channel
has audio level reading). The audio level part of the bar is gray and
video level part is black, so the delta portion is clearly displayed.
To enable audio carrier level measurement
1 Press the Settings softkey.
2 Using the arrow keys, select Show Audio.
3 Press ENTER.
View Menu
To access different functions and shortcuts to other tests
1 Press the View softkey.
2 Using the arrow keys, select one of the following options:
– Auto Reference (Shift, 9) – Enables you to automatically view
measurement results in the best reference setting on the
graph.

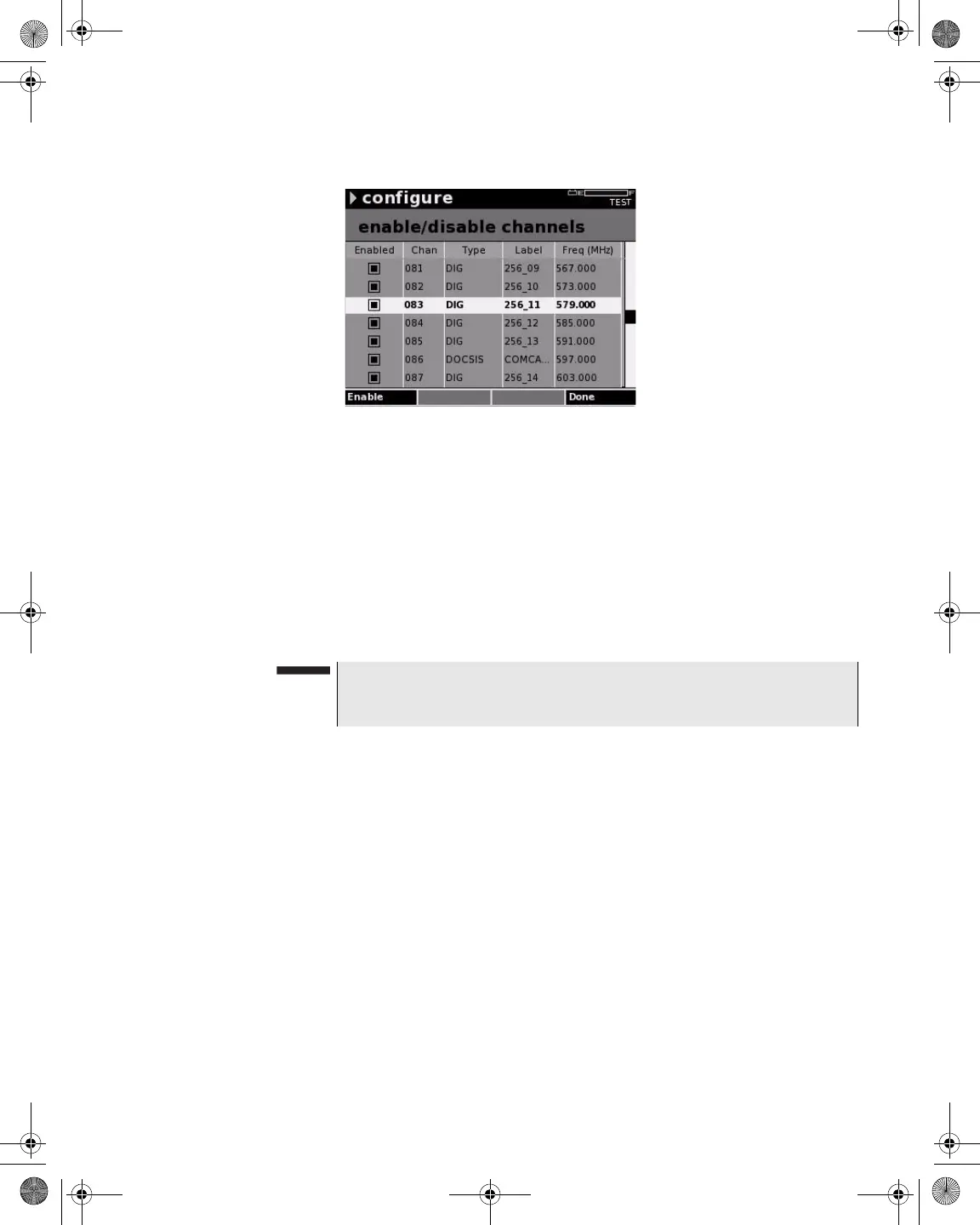

Figure 152 Measure Mode – Enable/Disable Channels
NOTE
Audio level measurement is not applicable to single type, DOCSIS,
or digital channels.
21128026 R001 DSAM Help User Guide.book Page 167 Thursday, February 5, 2009 2:02 PM
