Chapter 8 Measure Mode – Basic Tab
Level
DSAM Help User Guide Rev. 001 153
The arrow keys provide an alternate method to tune the meter. Use the
left and right arrow keys to move to the next or previous channel as
defined in the current channel plan. Use the up and down arrow keys
to adjust the graph for the best viewing, or press the View softkey and
use the arrow keys to highlight Auto Reference (Shift, 9) then press
the ENTER key to automatically view measurement results in the best
reference setting.
Running a Level
Measurement
To run a level measurement
1 Press Measure.
2 Press the Basic softkey.
3 Using the arrow keys, select Level.
4 Press ENTER.

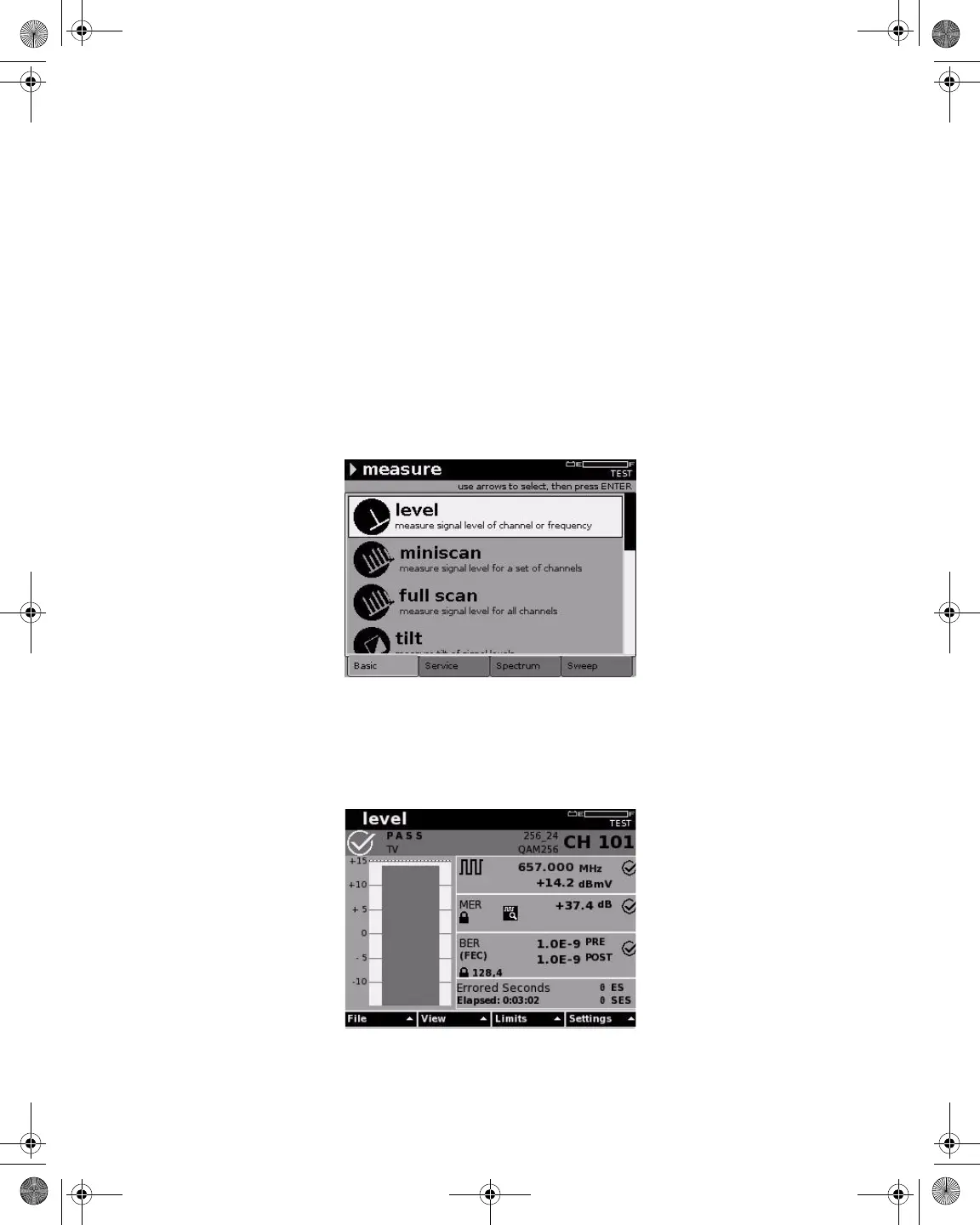

Figure 141 Measure Mode – Basic Tab
Figure 142 Measure Mode – Level
