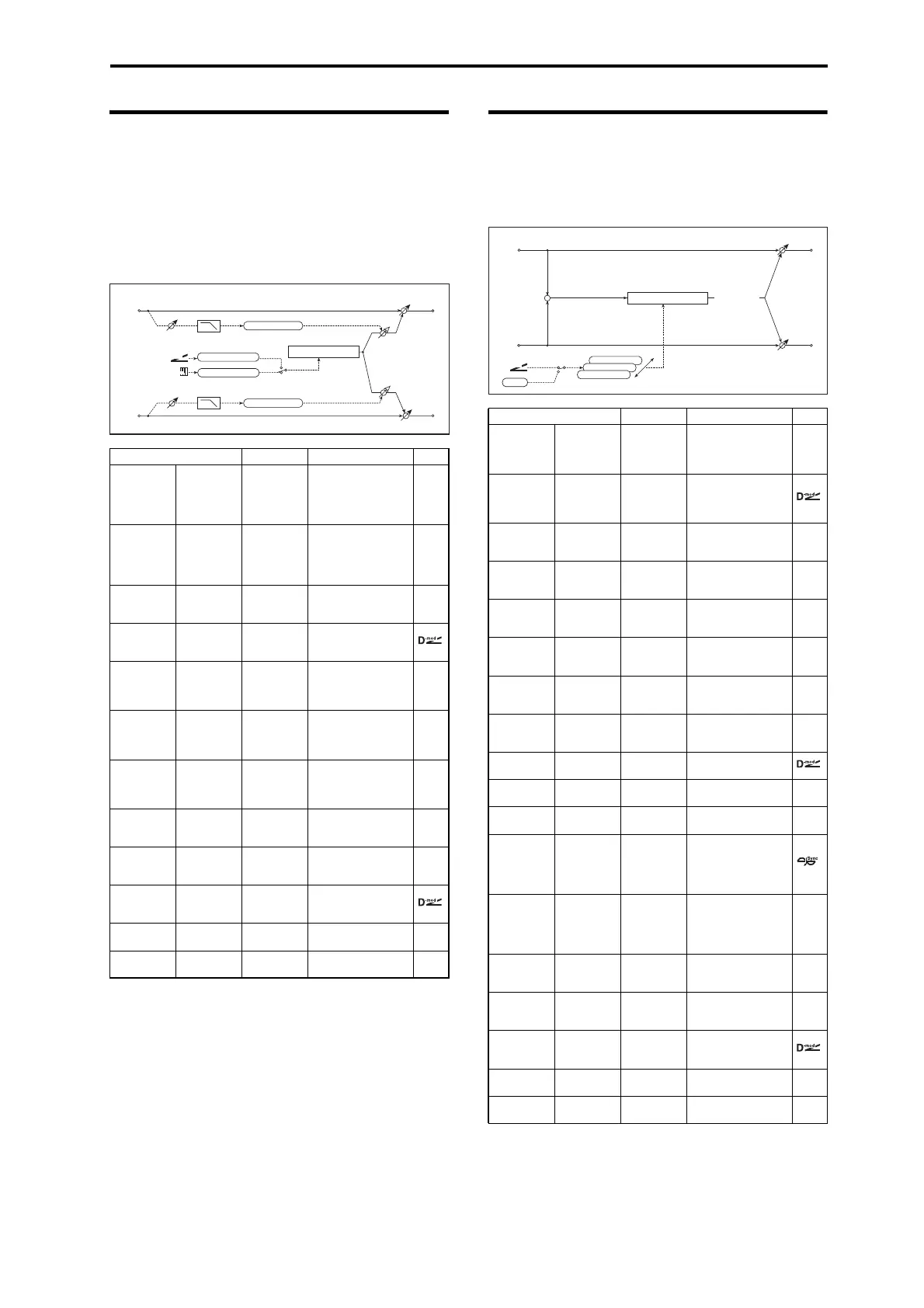

Single size effects 016: St. Sub Oscillator (Stereo Sub Oscillator)
227
016: St. Sub Oscillator (Stereo Sub
Oscillator)
This effect adds very low frequencies to the input signal. It is very
useful when simulating a roaring drum sound or emphasizing
powerful low range. This effect is different from the equalizer in
that you can add very low range harmonics. You can also adjust
the oscillator frequency to match a particular note number, for use
as an octaver.
OSC Mode
Note Interval
Note Fine
The “OSC Mode” parameter selects the oscillator operation mode.
When Note Follow (Key Follow) is selected, the oscillator’s
frequency is determined based on the note number, allowing you
to use it as an octaver. The “Note Interval” parameter sets the pitch
offset from the original note number by semitone steps. The “Note
Fine” parameter allows you to fine-tune in steps of cents.
Env. Pre LPF
This parameter sets the upper limit of the frequency range where
very low harmonics are added. Adjust this parameter if you do not
want to add lower harmonics to the higher range.
017: Talking Modulator
This effect adds an unusual character, like a human voice, to the
input signal. Modulating the tone via dynamic modulation, you
can create an interesting effect that sounds as if the guitar or
synthesizer is talking.
Voice Top
Voice Center
Voice Bottom
These parameters assign vowels to the top, center, and bottom
position of the controller.
Paramter Value Explanation
OSC Mode ←
Note (Key
Follow),
Fixed
Determines whether
the oscillator frequency
follows the note
number or whether it is
fixed p.227
NoteIntrvl Note Interval –48...0
Sets the pitch difference
from the note number
when OSC Mode=Note
Follow (Key Follow)
p.227
Note Fine ← –100...+100
Fine adjustment of
the oscillator
frequency p.227
Fixed[Hz]
Fixed Freq
[Hz]
10.0...80.0
Sets the oscillator
frequency when OSC
Mode=Fixed
Src Source Off...Tempo
Selects the modulation
source for the oscil-
lator frequency when
OSC Mode=Fixed
Amt Amount –80...+80
Sets the oscillator
frequency modulation
amount when OSC
Mode=Fixed
Env PreLPF
Envelope Pre
LPF
1...100
Sets the upper limit of the
frequency range where
very low harmonics are
added p.227
Env Sens
Envelope
sens
0...100
Sets the sensitivity
with which very low
harmonics are added
Env Shape
Envelope
Shape
–100...+100
Sets the oscillator’s
volume envelope
curve
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Wet / Dry
Note No.
OSC Mode
Fixed
Note (Key Follow)
Sine Oscillator
Fixed Frequency
Pitch
Note Interval, Fine
Stereo In - Stereo Out
Left
Right
Wet / Dry
Envelope Sens
Envelope Shape
Envelope Shape
D
-mod
Pre LPF
Envelope Sens
Pre LPF
Paramter Value Explanation
Sweep Sweep Mode Dmod, LFO
Switches between
modulation source
control and LFO
control
Src Source Off...Tempo
Selects the
modulation source
that controls the
voice pattern
Manu
Manual
Voice Ctrl
Btm, 1...49,
Cnt, 51...99,
Top
Voice pattern control
Voice Top ← A, I, U, E, O
Selects a vowel sound
at the top end of
control p.227
Voice Cnt Voice Center A, I, U, E, O
Selects a vowel sound
in the center of
control p.227
Voice Btm
Voice
Bottom
A, I, U, E, O
Selects a vowel sound
at the bottom end of
control p.227
FormntSft
Formant
Shift
–100...+100
Sets the frequency
where the effect is
applied p.228
Resonance ← 0...100
Sets the Level of
resonance of the
voice pattern p.228
LFO [Hz]
LFO Freq
[Hz]
0.02...20.00
Sets the speed of the
LFO p.223
Src Source Off...Tempo
Selects a modulation
source for LFO speed
Amt Amount
–20.00...
+20.00
Sets the modulation
amount of LFO speed
MIDI Sync
BPM/MIDI
Sync
Off, On
When this is on, the
LFO speed is set by
BPM, Base Note, and
Times, instead of
Frequency p.223
BPM ←
MIDI,
40.00...
300.00
MIDI syncs to the
system tempo; 40–
300 sets the tempo
manually for this
individual effect p.223
Base Note ← ...
Selects the type of
notes that specify the
LFO speed p.223
Times ← x1...x32
Sets the number of
notes that specify the
LFO speed p.223
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Left
Right
Wet / Dry
Wet / Dry
+
D
-mod
Voice Top: A
Voice Center: I
Voice Bottom: U
A
-
I
-
U
-
E
-
O
Talking Modulator
LFO
D-mod
LFO
Sweep Mode
