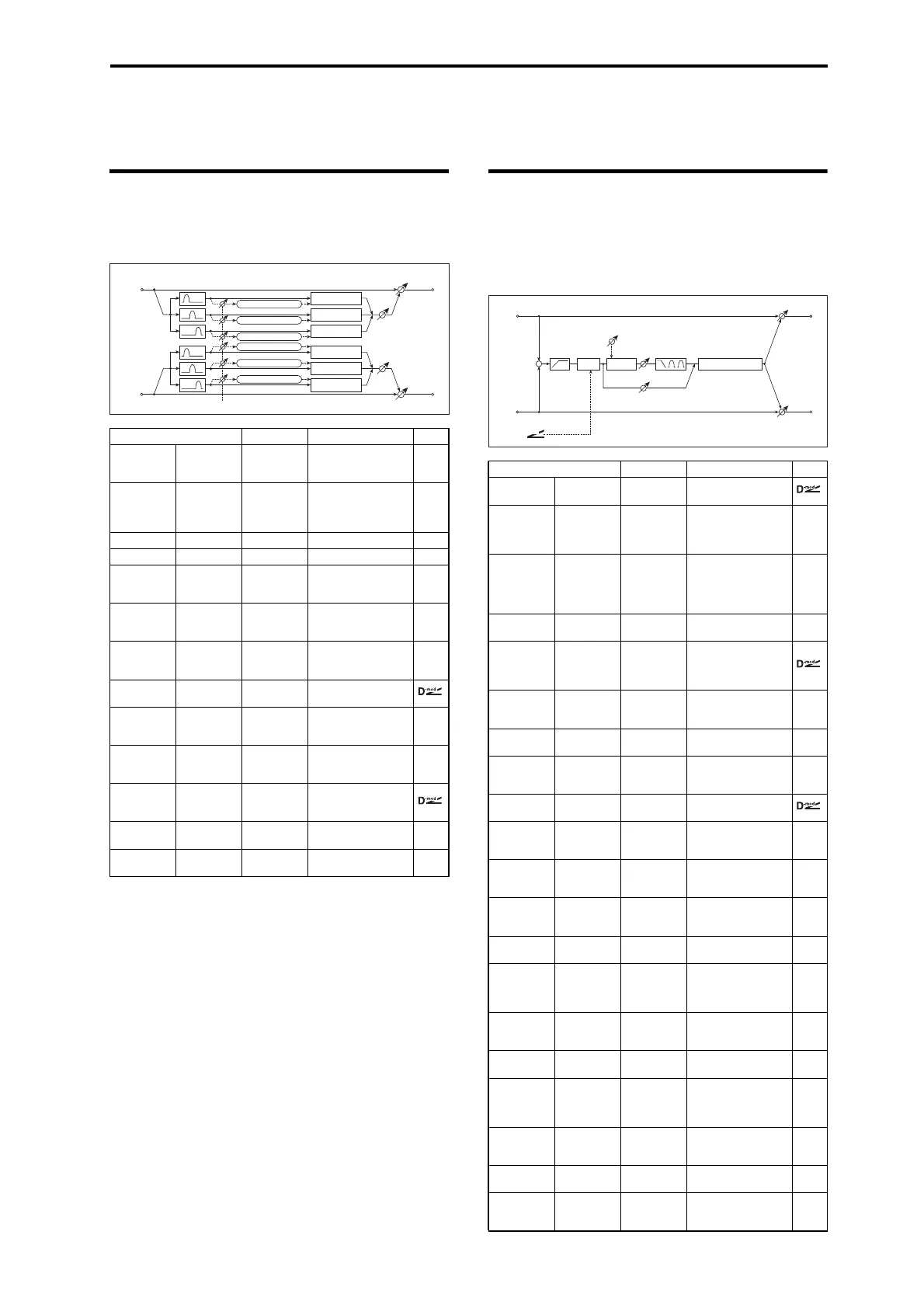

Double Size effects D00: St.Multiband Limiter (Stereo Multiband Limiter)
283
Double Size effects
D00: St.
Multiband Limiter
(
Stereo
Multiband Limiter)
This is a stereo multiband limiter.
D01: OD/
HyperGain
Wah (
Overdrive/
Hyper Gain Wah)
This distortion effect has two modes: overdrive and hyper-gain
that produces a strong distortion. A higher high-gain setting is
required for this effect relative to a normal-size effect.
Paramter Value Explanation
Ratio ←
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal
compression ratio
p.218
Thrsh[dB]
Threshold
[dB]
–40...0
Sets the level above
which the
compressor is applied
p.218
Attack ← 1...100 Sets the attack time
Release ← 1...100 Sets the release time
Lo Ofs[dB]
Low Offset
[dB]
–40...0
Sets the low range
gain of trigger signal
p.219
M. Ofs[dB]
Mid Offset
[dB]
–40...0
Sets the mid range
gain of trigger signal
p.219
Hi Ofs[dB]
High Offset
[dB]
–40...0
Sets the high range
gain of trigger signal
p.219
Gain [dB]
Gain Adjust
[dB]
–Inf,
–38...+24
Sets the output gain
p.218
Src Source Off...Tempo
Selects the
modulation source
for the output gain
Amt Amount –63...+63
Sets the modulation
amount of the output
gain
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Gain Adjust
Limiter
Limiter
Limiter
Envelope - Control
Envelope - Control
Envelope - Control
Gain Adjust
Limiter
Limiter
Low
Mid
High
Envelope - Control
Envelope - Control
Envelope - Control
Low
Mid
High
Offset
Band-Pass Filters
Limiter
Paramter Value Explanation
← Wah Off, On
Switches Wah on/off
p.230
Src Source Off...Tempo
Selects the
modulation source
that switches the Wah
on and off p.230
Sw Switch Mode
Tog gle,
Moment
Selects the switching
mode for the
modulation source
that switches the Wah
on and off p.230
Wah Range
←
–10...+10
Sets the range of Wah
p.230
Wah Sweep
Src
Wah Sweep
Source
Off...Tempo
Selects the
modulation source
that controls the Wah
p.230
Mode Drive Mode
Overdrive,
Hyper-Gain
Switches between
overdrive and hi-gain
distortion
Drive
←
1...120
Sets the degree of
distortion p.230
Pre Low-cut Pre Low Cut 0...10
Sets the low range
cut amount of the
distortion input p.230
Out Level
←
0...50
Sets the output level
p.230
Src Source Off...Tempo
Selects the
modulation source
for the output level
Amt Amount –50...+50
Sets the modulation
amount of the output
level
Low F[Hz]
Low
Cutoff [Hz]
20...1.00k
Sets the center
frequency for Low EQ
(shelving type)
Gain[dB] Gain [dB] –18...+18
Sets the gain of Low
EQ
Mid1 F[Hz]
Mid1
Cutoff [Hz]
300...10.00k
Sets the center
frequency for Mid/
High EQ 1 (peaking
type)
Q Q 0.5...10.0
Sets the band width
of Mid/High EQ 1
p.221
Gain[dB] Gain [dB] –18...+18
Sets the gain of Mid/
High EQ 1
Mid2 F[Hz]
Mid2
Cutoff [Hz]
500...20.00k
Sets the center
frequency for Mid/
High EQ 2 (peaking
type)
Q Q 0.5...10.0
Sets the band width
of Mid/High EQ 2
p.221
Gain[dB] Gain [dB] –18...+18
Sets the gain of Mid/
High EQ 2
Direct Mix ← 0...50
Sets the amount of
the dry sound mixed
to the distortion
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Amp Simulation
3 Band EQ
Output Level
Direct Mix
Pre Low-cut
D
-mod
Wah
Mode: Overdrive / Hyper-Gain
Drive
Driver
+
