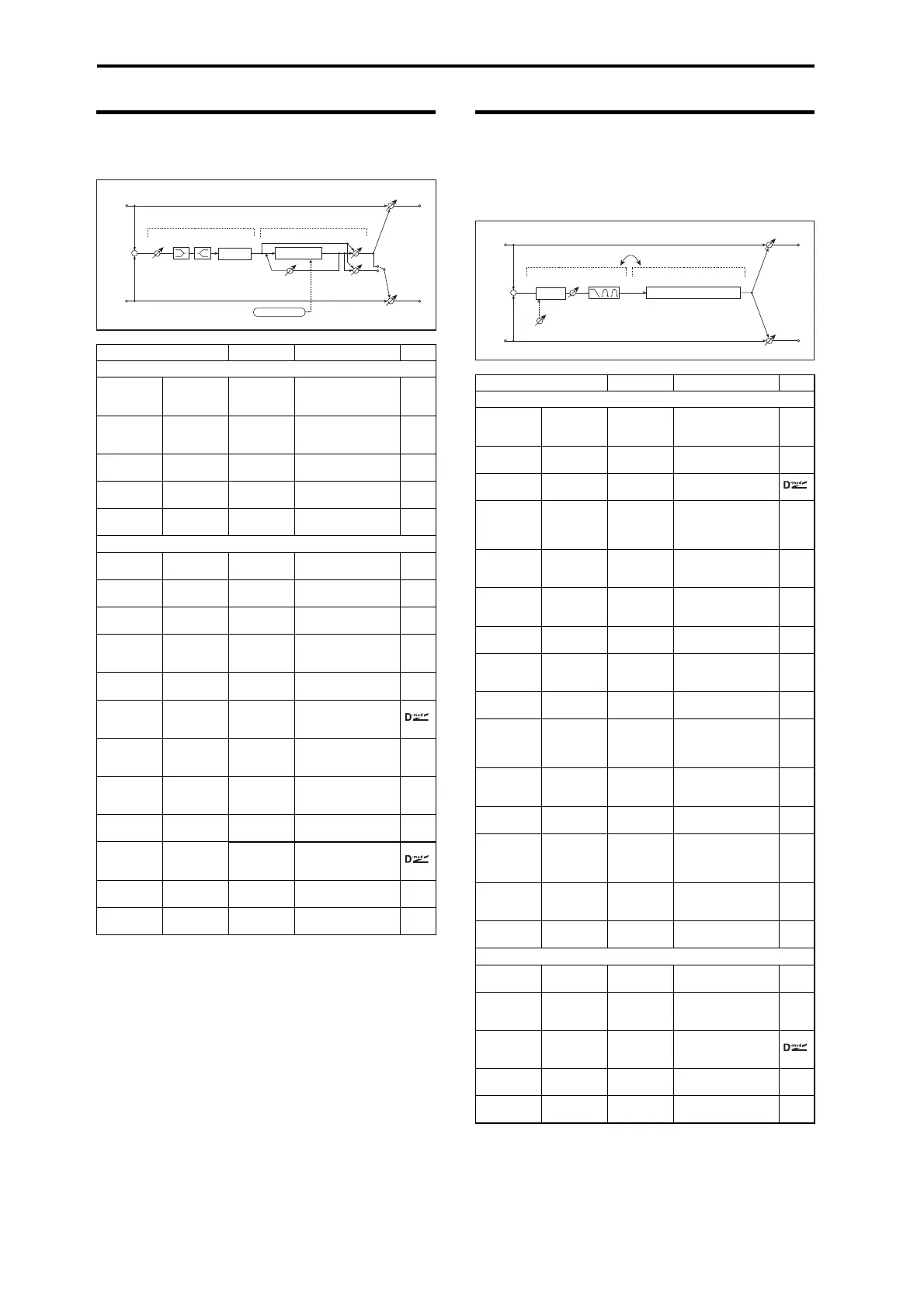

055: Exciter - Phaser
This effect combines a mono limiter and a phaser.
056: OD/HG - Amp Sim (
Overdrive/
Hi.Gain - Amp Simulation)
This effect combines a mono overdrive/high-gain distortion and an
amp simulation. You can change the order of the effects.
Paramter Value Explanation
Exciter
X Blend Blend –100...+100
Sets the intensity
(depth) of the Exciter
effect p.222
Frequency
Emphasis
Frequency
0...70
Sets the frequency
range to be empha-
sized p.222
X EQ Trim Pre EQ Trim 0...100
Sets the EQ input
level
X LEQ [dB]
Low EQ Gain
[dB]
–15...+15
Sets the gain of Low
EQ
HEQ [dB]
High EQ
Gain [dB]
–15...+15
Sets the gain of High
EQ
Phaser
P LFO [Hz]
LFO Freq
[Hz]
0.02...20.00
Sets the speed of the
LFO
LFO
LFO
Waveform
Tri (Triangle),
Sine
Selects the LFO
Waveform
P Depth Depth 0...100
Sets the depth of LFO
modulation
Manual ← 0...100
Sets the frequency
where the effect is
applied
Reso Resonance –100...+100
Sets the resonance
amount p.235
P Wet/Dry
[Phaser]
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect
balance p.226, p.235
Src
[Phaser]
Source
Off...Tempo
Selects the Wet/Dry
modulation source
for the phaser
Amt
[Phaser]
Amount
–100...+100
Sets the Wet/Dry
modulation amount
for the phaser
P Out Mode
Output
Mode
Normal,
Wet Invert
Selects the phaser
output mode p.218
Wet/Dry ←
–Wet...
–99 : 1, Dry,
99 : 1...Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
LEQ
HEQ
EQ Trim
Exciter
Exciter
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Paramter Value Explanation
Overdrive/Hi-Gain
O Mode Drive Mode
OverD
(Overdrive),
Hi-Gain
Switches between
overdrive and high-
gain distortion
Drive 1...100
Sets the degree of
distortion p.230
O Out Level 0...50
Sets the overdrive
output level p.230
Src Source Off...Tempo
Selects the
modulation source
for the overdrive
output level
Amt Amount –50...+50
Sets the modulation
amount of the
overdrive output level
O Low [Hz]
Low Cutoff
[Hz]
20...1.00k
Sets the center
frequency for Low EQ
(shelving type)
Gain[dB]
Low Gain
[dB]
–18...+18
Sets the gain of Low
EQ
Q Mid1 Q 0.5...10.0
Sets the band width
of Low EQ
p.221
Gain[dB]
Mid1 Gain
[dB]
–18...+18
Sets the gain of Low
EQ
O Mid1[Hz]
Mid1 Cutoff
[Hz]
300...10.0k
Sets the center
frequency for Mid/
High EQ 1 (peaking
type)
Q Mid1 Q 0.5...10.0
Sets the band width
of Mid/High EQ 1
p.221
Gain[dB]
Mid1 Gain
[dB]
–18...+18
Sets the gain of Mid/
High EQ 1
O Mid2 [Hz]
Mid2 Cutoff
[Hz]
500...20.00k
Sets the center
frequency for Mid/
High EQ 2 (peaking
type)
Q Mid2 Q 0.5...10.0
Sets the band width
of Mid/High EQ 2
p.221
Gain[dB]
Mid2 Gain
[dB]
–18...+18
Sets the gain of Mid/
High EQ 2
Amp Simulation
A Amp Type Amp Type SS, EL84, 6L6
Selects the type of
guitar amplifie
Routing ←
OD → Amp,
Amp → OD
Switches the order of
the overdrive and
amp
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Se
lects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
