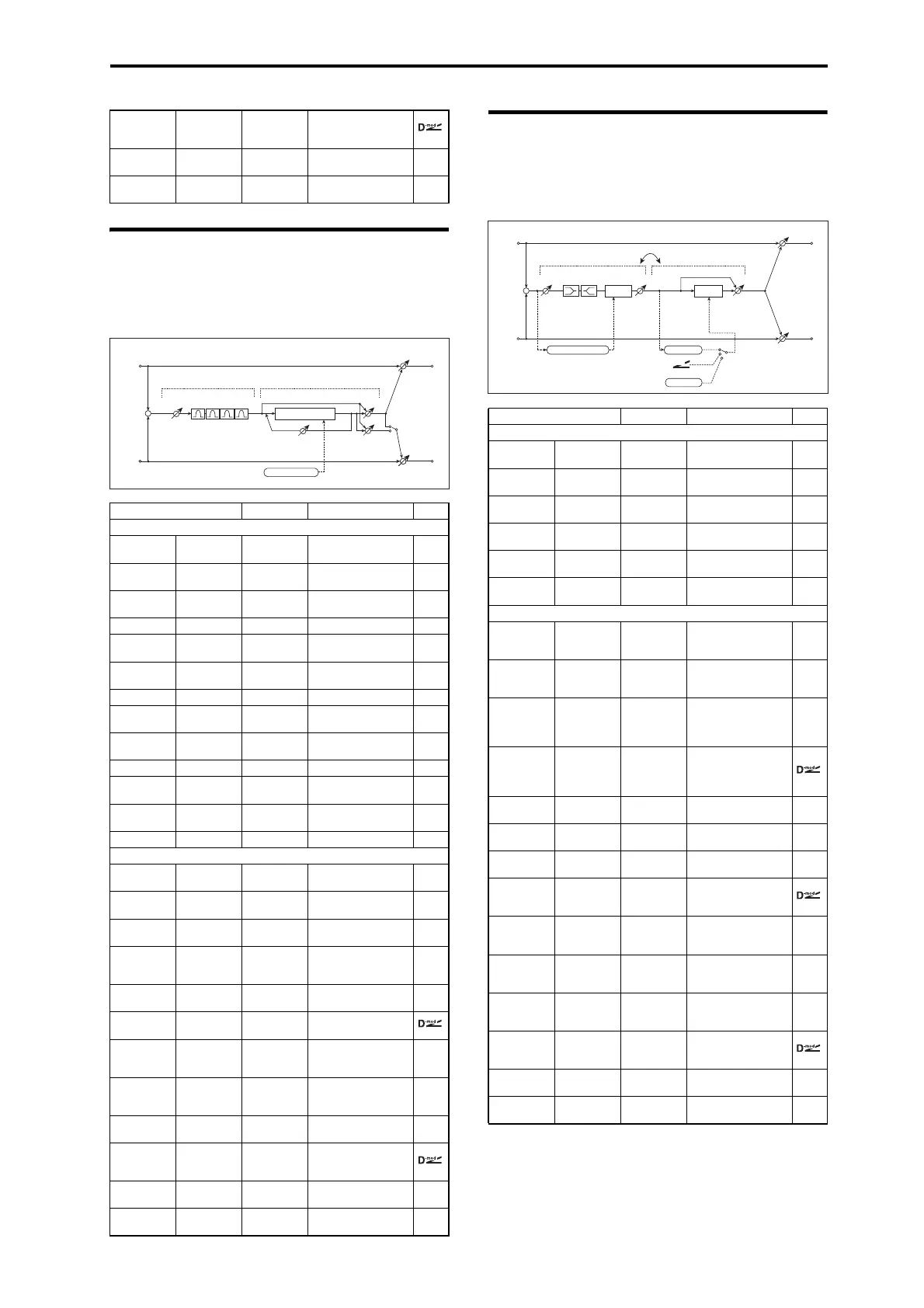

Single size effects 045: P4EQ - Phaser (Parametric 4-Band EQ - Phaser)
243
045: P4EQ - Phaser (Parametric 4-
Band EQ - Phaser)
This effect combines a mono four-band parametric equalizer and a
phaser.
046: Comp - Wah (Compressor -
Wah/Auto Wah)
This effect combines a mono compressor and a wah. You can
change the order of the connection.
Wet/Dry ←
Dry,1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Paramter Value Explanation
Parametric 4-Band EQ
E Trim Trim 0...100
Sets the parametric
EQ input level
E B1 F[Hz] Trim 20...1.00k
Sets the center
frequency of Band 1
Q
Band1
Cutoff [Hz]
0.5...10.0
Sets the bandwidth of
Band 1 p.221
Gain[dB] Band1 Q –18...+18
Sets the gain of Band 1
E B2 F[Hz]
Band1
Gain [dB]
50...5.00k
Sets the center
frequency of Band 2
Q
Band2
Cutoff [Hz]
0.5...10.0
Sets the bandwidth of
Band 2 p.221
Gain[dB] Band2 Q –18...+18
Sets the gain of Band 2
E B3 F[Hz]
Band2
Gain [dB]
300...10.00k
Sets the center
frequency of Band 3
Q
Band3
Cutoff [Hz]
0.5...10.0
Sets the bandwidth of
Band 3 p.221
Gain[dB] Band3 Q –18...+18
Sets the gain of Band 3
E B4 F[Hz]
Band3
Gain [dB]
500...20.00k
Sets the center
frequency of Band 4
Q
Band4
Cutoff [Hz]
0.5...10.0
Sets the bandwidth of
Band 4 p.221
Gain[dB] Band4 Q –18...+18
Sets the gain of Band 4
Phaser
P LFO [Hz]
LFO Freq
[Hz]
0.02...20.00
Sets the speed of the
LFO
LFO
LFO
Waveform
Tri (Triangle),
Sine
Selects the LFO
Waveform
P Depth
Phaser
Depth
0...100
Sets the depth of LFO
modulation
Manual ← 0...100
Sets the frequency
where the effect is
applied
Reso Resonance –100...+100
Sets the resonance
amount p.235
P Wet/Dry
[Phaser]
Wet/Dry
-1:99, Dry,
1:99
Sets the phaser effect
balance p.226, p.235
Src
[Phaser]
Source
Off...Tempo
Selects the Wet/Dry
modulation source
for the phaser
Amt
[Phaser]
Amount
–100...+100
Sets the Wet/Dry
modulation amount
for the phaser
P Out Mode
[Phaser]
Output Mode
Normal,
Wet Invert
Selects the phaser
output mode p.263
Wet/Dry ←
–Wet...
–99 : 1, Dry,
99 : 1...Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Paramter Value Explanation
Compressor
C Sens Sensitivity 1...100
Sets the sensitivity
p.217
C Attack Attack 1...100
Sets the attack level
p.217
Out Level Leve 0...100
Sets the compressor
output level p.217
C EQ Trim EQ Trim 0...100
Sets the EQ input
level
C LEQ [dB]
Low EQ Gain
[dB]
–15...+15
Sets the gain of Low
EQ
HEQ [dB]
High EQ
Gain [dB]
–15...+15
Sets the gain of High
EQ
Wah
W Freq Btm
Frequency
Bottom
0...100
Sets the lower limit of
the wah center
frequency p.223
Freq Top
Frequency
Top
0...100
Sets the upper limit of
the wah center
frequency p.223
W Sweep Sweep Mode
Auto,
Dmod,
LFO
Selects the control
from auto-wah,
modulation source,
and LFO
Src Source Off...Tempo
Selects the
modulation source
for the wah when
Sweep Mode=Dmod
W LFO[Hz]
LFO Freq
[Hz]
0.02...20.00
Sets the speed of the
LFO
Reso Resonance 0...100
Sets the resonance
amount
LPF ← Off, On
Switches the wah low
pass filter on and off
W Wet/Dry
[Wah] Wet/
Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the wah effect
balance
Src [Wah]Source Off...Tempo
Selects the Wet/Dry
modulation source
for the wah
Amt
[Wah]Amou
nt
–100...+100
Sets the Wet/Dry
modulation amount
for the wah
Routing ←
Comp
↓
Wah,
Wah
→
Comp
Switches the order of
the compressor and
wah
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp
