Effect Guide
244

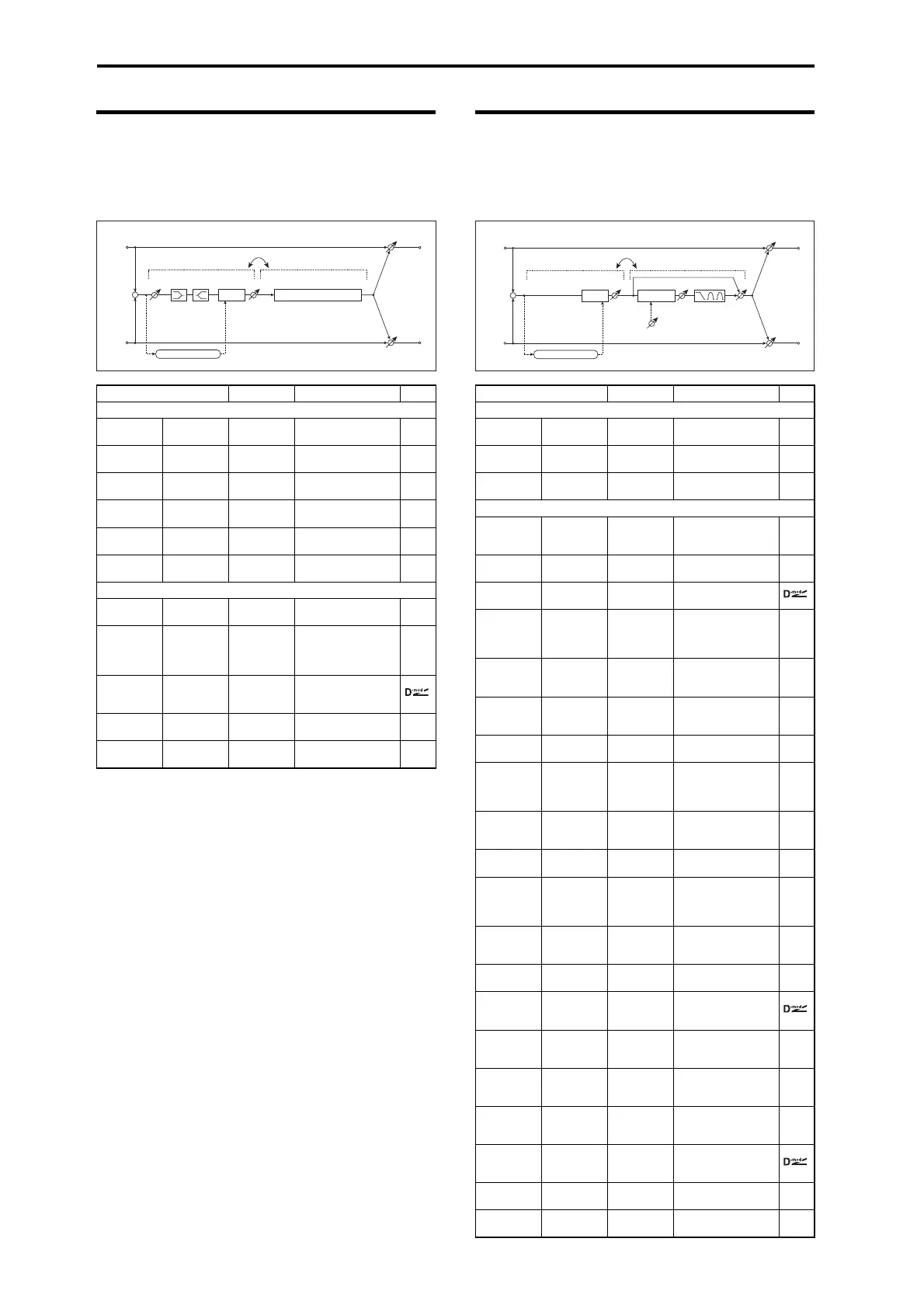

047: Comp - Amp Sim (Compressor
- Amp Simulation)
This effect combines a mono compressor and an amp simulation.
You can change the order of the effects.
048: Comp - OD/HiGain
(Compressor - Overdrive/Hi.Gain)
This effect combines a mono compressor and an overdrive/high-
gain distortion. You can change the order of the effects.
Paramter Value Explanation
Compressor
C Sens Sensitivity 1...100
Sets the sensitivity
p.217
C Attack Attack 1...100
Sets the attack level
p.217
Out Level Level 0...100
Sets the compressor
output level p.217
C EQ Trim EQ Trim 0...100
Sets the EQ input
level
C LEQ [dB]
Low EQ Gain
[dB]
–15...+15
Sets the gain of Low
EQ
HEQ [dB]
High EQ
Gain [dB]
–15...+15
Sets the gain of High
EQ
Amp Simulation
A Amp Type Amp Type SS, EL84, 6L6
Selects the type of
guitar amplifier
Routing ←
Comp →
Amp,
Amp
→
Comp
Switches the order of
the compressor and
amp simulation
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Amp Simulation
Amp Simulation Filter
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp
Paramter Value Explanation
Compressor
C Sens Sensitivity 1...100
Sets the sensitivity
p.217
C Attack Attack 1...100
Sets the attack level
p.217
Out Level Level 0...100
Sets the compressor
output level p.217
Overdrive/Hi-Gain
O Mode Drive Mode
OverD
(Overdrive),
Hi-Gain
Switches between
overdrive and high-
gain distortion
Drive ← 1...100
Sets the degree of
distortion p.230
O Out Level Level 0...50
Sets the overdrive
output level p.230
Src Source Off...Tempo
Selects the
modulation source
for the overdrive
output level
Amt Amount –50...+50
Sets the modulation
amount of the
overdrive output level
O Low [Hz]
Low Cutoff
[Hz]
20...1.00k
Sets the center
frequency for Low EQ
(shelving type)
O Low [dB]
Low Gain
[dB]
–18...+18
Sets the gain of Low
EQ
O Mid1[Hz]
Mid1 Cutoff
[Hz]
300...10.00k
Sets the center
frequency for Mid/
High EQ 1 (peaking
type)
Q Mid1 Q 0.5...10.0
Sets the band width
of Mid/High EQ 1
p.221
Gain [dB]
Mid1 Gain
[dB]
–18...+18
Sets the gain of Mid/
High EQ 1
O Mid2[Hz]
Mid2 Cutoff
[Hz]
500...20.00k
Sets the center
frequency for Mid/
High EQ 2 (peaking
type)
Q Mid2 Q 0.5...10.0
Sets the band width
of Mid/High EQ 2
p.221
Gain [dB]
Mid2 Gain
[dB]
–18...+18
Sets the gain of Mid/
High EQ 2
O Wet/Dry
[OD/HG]
Wet/Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the overdrive
effect balance
Src
[OD/HG]
Source
Off...Tempo
Selects the Wet/Dry
modulation source
for the overdrive
Amt
[OD/HG]
Amount
–100...+100
Sets the Wet/Dry
modulation amount
for the overdrive
Rout
e Routing
Comp →
OD/HG, OD/
HG → Comp
Switches the order of
the compressor and
overdrive
Wet/Dry ←
Dry, 1 : 99...
99 : 1, Wet
Sets the balance
between the effect
and the dry input
Src Source Off...Tempo
Selects a modulation
source for Wet/Dry
Amt Amount –100...+100
Sets the modulation
amount for Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Compressor
Output Level
Envelope - Control
Comp
Wet / Dry
