9: C–FX ROUTING 9–2: SEND
91

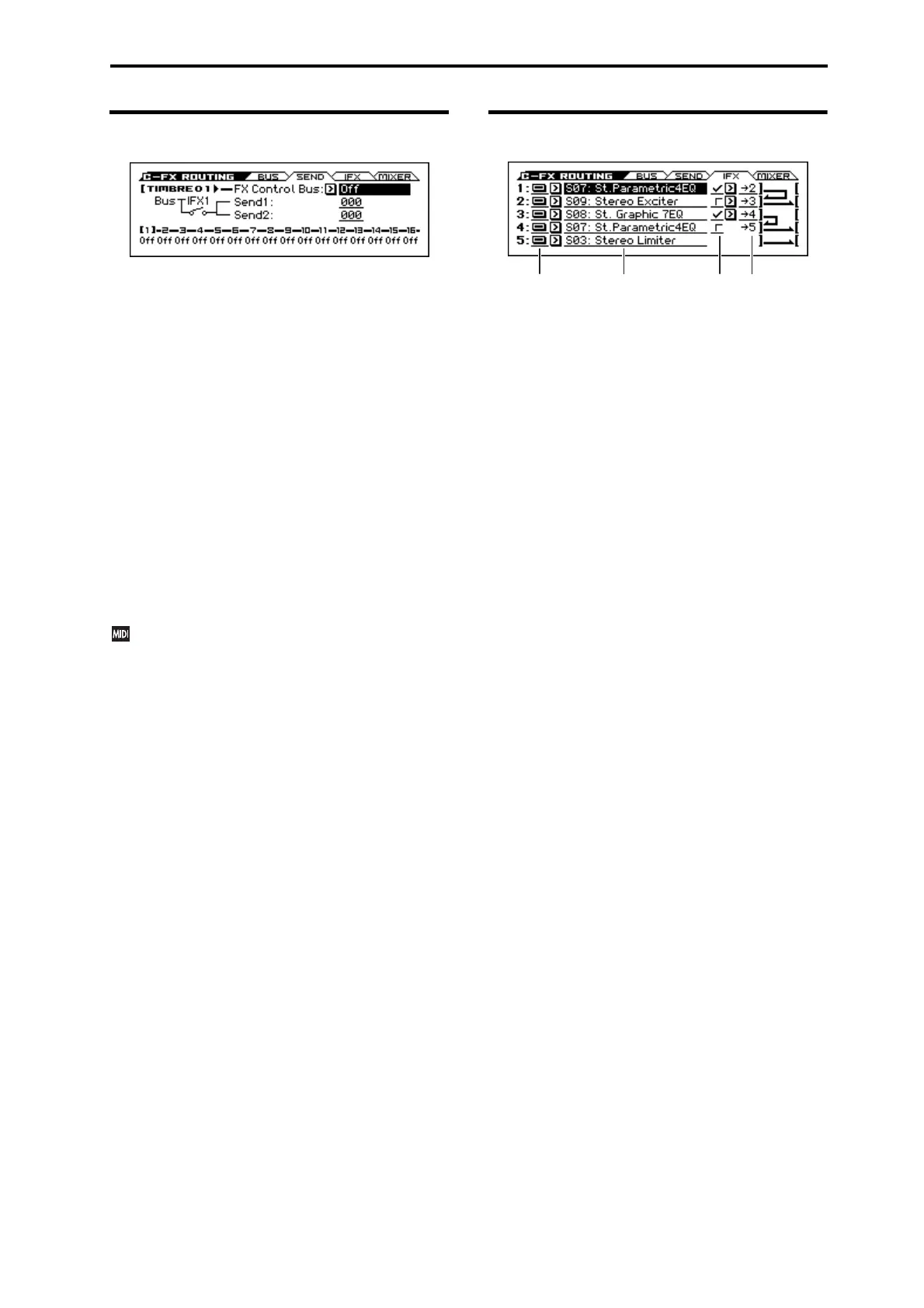

9–2: SEND
Timbre 01...16 (Timbre Number)
To select a timbre (active timbre), place the cursor at one of the
following parameters, and use the cursor buttons to switch
timbres.(see page 71)
FX Control Bus [Off, FC1, FC2]
Use the FX Control busses when you want a separate sound to
control the audio input of an effect. You can use two FX Control
busses (each is a two-channel mono bus) to control effects in
various ways.
For more information, please see the “FX Control Bus” section on
page 209.
Send1 (MFX1) [000...127]
Send2 (MFX2) [000...127]
For each timbre, these parameters set the send level to master
effects 1 and 2. These settings are valid when Bus Select is set to
L/R or Off. When IFX 1–5 are selected, the send levels to master
effects 1 and 2 are set by the Send1 and Send2 parameters of the
Insert FX Setup page, after the sound has passed through IFX1–5.
Control change CC#93 can be used to control the Send 1
level, and CC#91 to control the Send 2, and modify their
respective settings. These messages will be received on the
MIDI channel specified for each timbre in the C–TIMBER>
MIDI page.
The actual send levels are determined by multiplying this
value with the send level Send1 and Send2 (P–FX
ROUTING>SEND) for each oscillator of the program
selected for the timbre.
Timbre Info.
Shows the settings of timbres 1–16 for the parameter that you're
editing.
Soloed timbres are indicated by (S).
Note: If this is disabled because of the setting of another
parameter, “–” is shown.
9–3: IFX (Insert Effect Setup)
Here you can choose the type of each insert effect from 1 through
5, its on/off status, and chaining settings. For insert effects, the
direct sound (Dry) is always stereo-in and out. The input/output
configuration of the effect sound (Wet) depends on the effect type.
For detailed explanations of the individual effects, please see the
“Effect Guide” on page 207.
The following parameters are the same as in Program mode. For
more information, please see the “16–3: Insert FX Setup” section
on page 60.
However, unlike in Program mode, you can use a different MIDI
channel to modulate each effect, if desired. This includes the post-
IFX Pan, Send1, and Send2 settings, as well as the effect’s
dynamic modulation (Dmod). To set the MIDI channel, use the Ch
parameter on the IFX 1–5 page (C–IFX).
1 (IFX1)
Effect On/Off [Off, On]
Effect Select [000, S00...S63, D00...D10]
Category/IFX Select menu:
Chain [Off, On]
Chain to [2...5]
2 (IFX2)
Effect On/Off [Off, On]
Effect Select [000, S00...S61, D00...D10]
Chain [Off, On]
Chain to [3...5]
3 (IFX3)
Effect On/Off [Off, On]
Effect Select [000, S00...S61, D00...D09]
Chain [Off, On]
Chain to [4, 5]
4 (IFX4)
Effect On/Off [Off, On]
Effect Select [000, S00...S61, D00...D09]
Chain [Off, On]
5 (IFX5)
Effect On/Off [Off, On]
Effect Select [000, S00...S61]
These settings are the same as for a program.
See “16–3: Insert FX Setup” on page 60
Eect On/O Eect Select Chain Chain to
To Next Page
