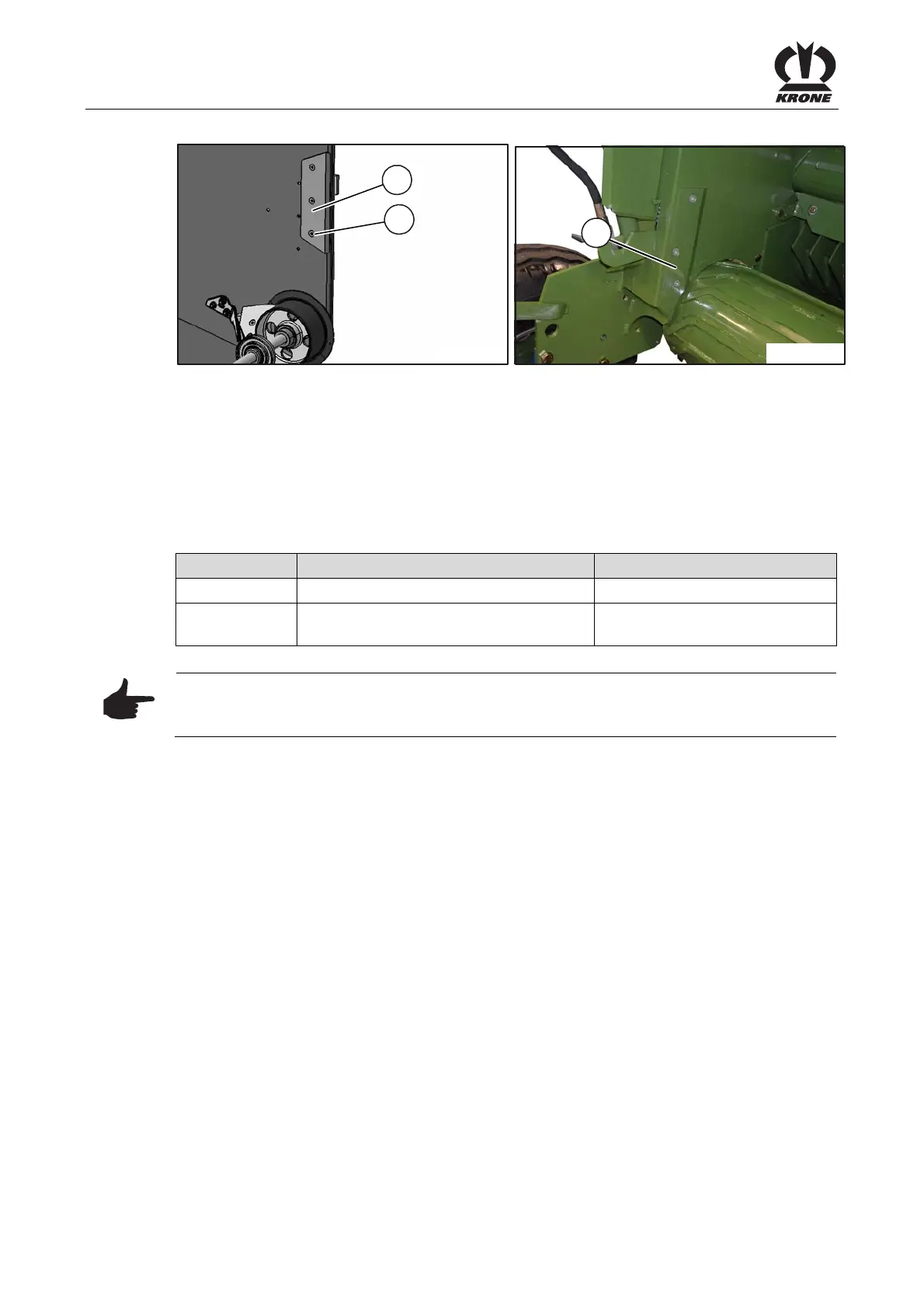

If the completed bales do not fall out of the front bale chamber, two ejector plates (1) can be
assembled right and left in the tailgate of the machine.
• Install the ejector plates (1) with the screws (2) on the insides of the bale chamber into the
existing bore holes.
• If the completed bales do even not fall out of the front bale chamber after having installed
the ejector plates (1), remove the sliding plates (3) from the machine housing right and left.
The ejector plates (1) can be ordered with suitable screws from KRONE spare part storage by
stating the following spare parts no.:
Pos: 55.47 /BA/Bedienun g /Rundballenpresse/ Tabelle Ersatztei le Anlagebleche CV210 @ 137\ mod_1353510973257_7 8.docx @ 1219422 @ @ 1
Units Spare part Spare parts no.
2 Ejector plates 200679180
6
Countersunk screw with hexagonal
socket
9040453
Pos: 55.48 /BA/Bedienun g /Rundballenpresse/ Hinweis Auswufbl eche demontieren @ 180\mod_1 375870236473_78.d ocx @ 1541449 @ @ 1
Note
If the ready bale jams in the tailgate and is raised when the tailgate is opened, the discharge
plates (1) must be removed.
