Krone Comprima CF 155 XC User Manual

Settings
273
Pos: 57.15 /Abkürzun gen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CF 155 XC_fett @ 66\mod_1302006 789716_78.docx @ 593531 @ @ 1
Comprima CF 155 XC
Pos: 57.16 /BA/Einste llungen/Rundball enpresse/Schaubil d zentrale Kettenschmier ung CF155XC @ 74\mod_1309 173160561_78.doc x @ 659443 @ @ 1
RPN00047_2

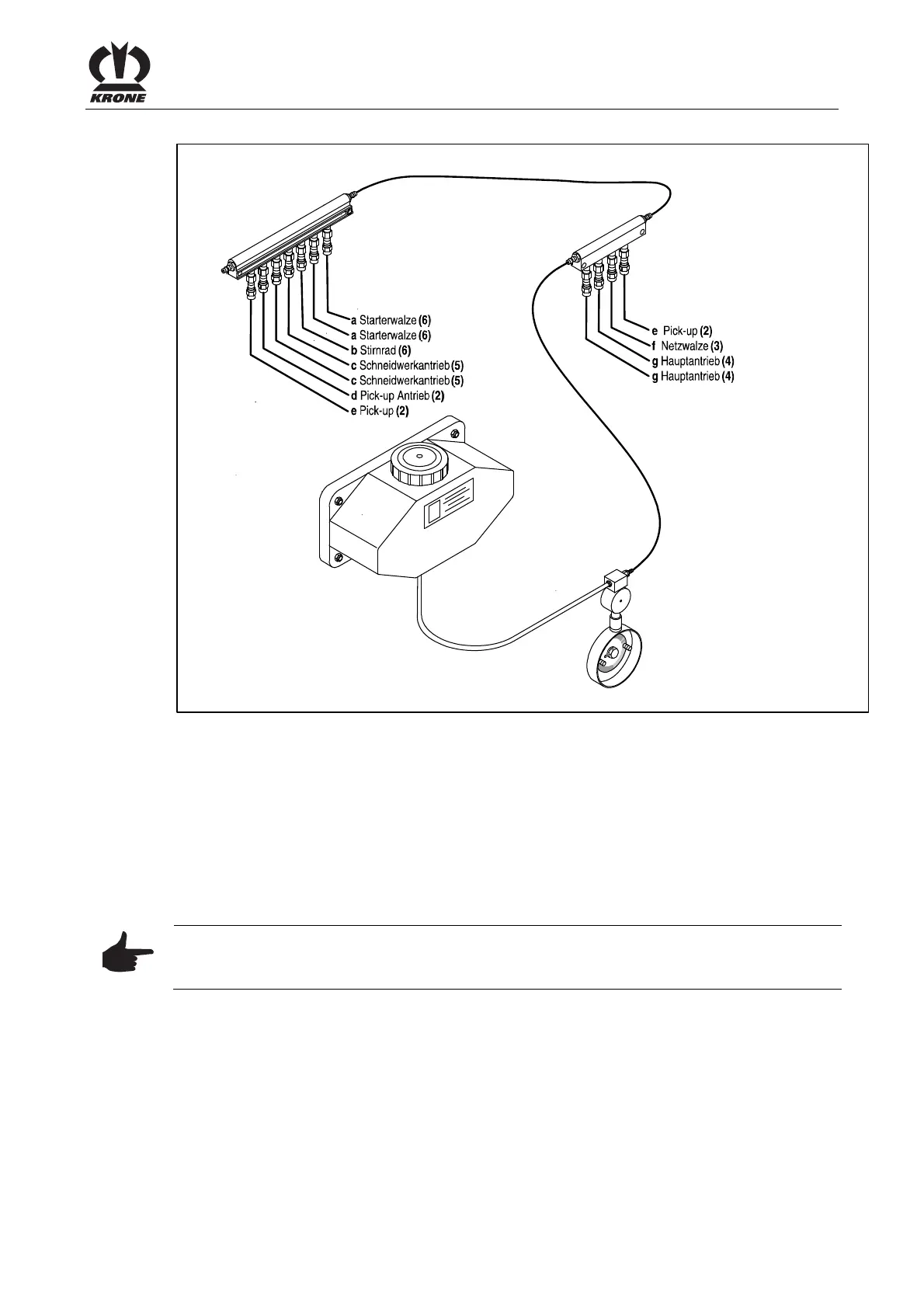

Fig. 214
a Starter roller
b Spur wheel
c Cutting system drive
d Pick-up drive
e Pick-up
f Net roller
g Main drive
The figures in the brackets state the size of the nozzles for the individual lubrication points.
Note
Make certain the correct sizes are used when changing the nozzles. Each size difference
doubles the oil delivery rate (MM4 deliveres for example twice as much oil as MM3).
