Comprima CV 150 / CV 210 XC

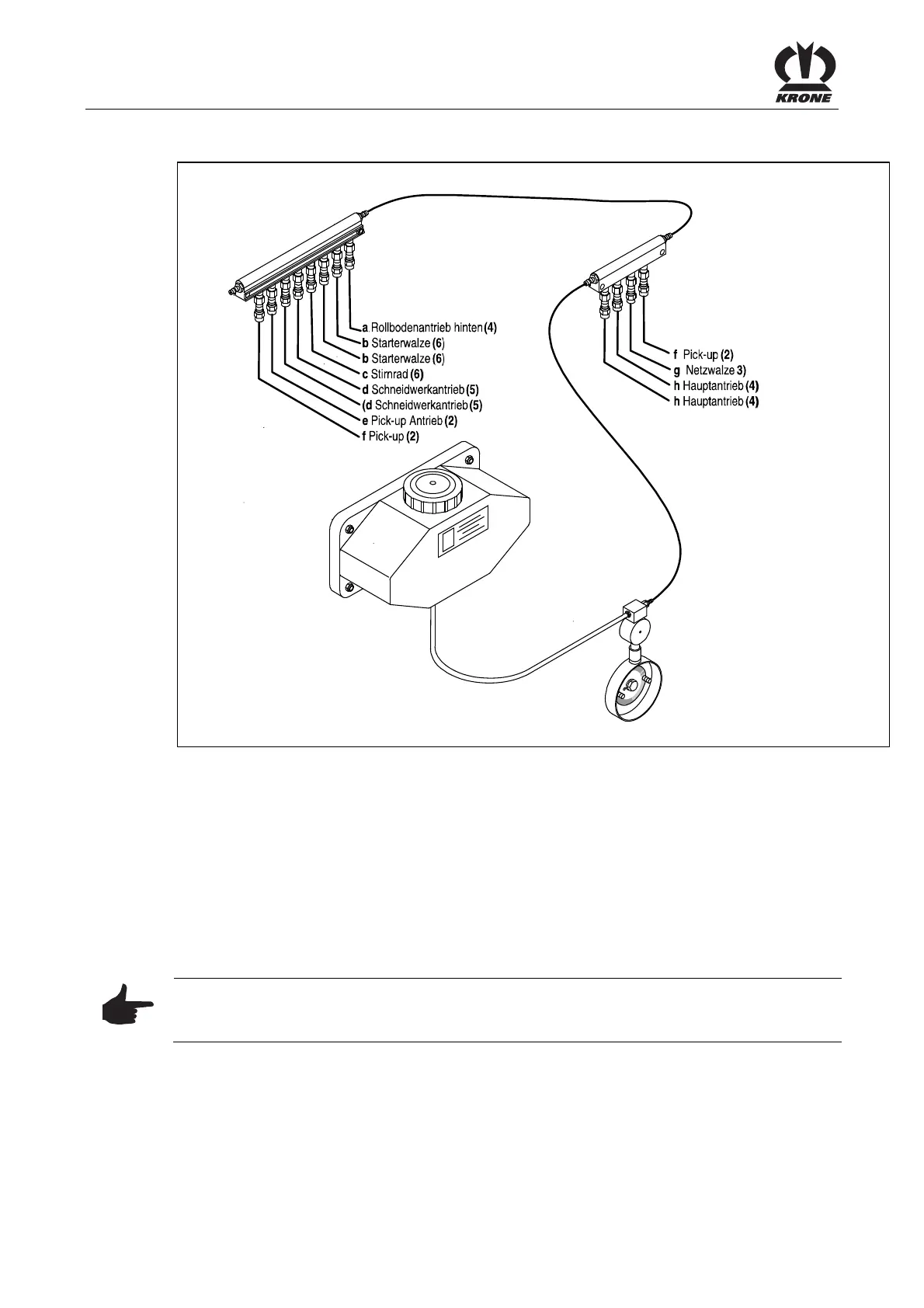

Pos: 57.19 /BA/Einste llungen/Rundball enpresse/Schaubil d zentrale Kettenschmier ung CV 150/210 @ 59\mod_1297 676781655_78.doc x @ 559321 @ @ 1
RPN00048_2
Fig. 215
a Rear floor conveyor drive
b Starter roller
c Spur wheel
d Cutting system drive
e Pick-up drive
f Pick-up
g Net roller
h Main drive
The figures in the brackets state the size of the nozzles for the individual lubrication points.
Note
Make certain the correct sizes are used when changing the nozzles. Each size difference
doubles the oil delivery rate (MM4 delivers for example twice as much oil as MM3).
