Comprima CF 155 XC/Comprima CV 150 XC
Pos: 59.165.1 /BA/W artung/Rundballenpres se/Hydrauliktan k/Hydrauliktank_ Bild_CF 155 XC, CV 150 XC @ 188\mod_13 80176814774_78. docx @ 1611121 @ @ 1
CPN00017_3
2
1
3

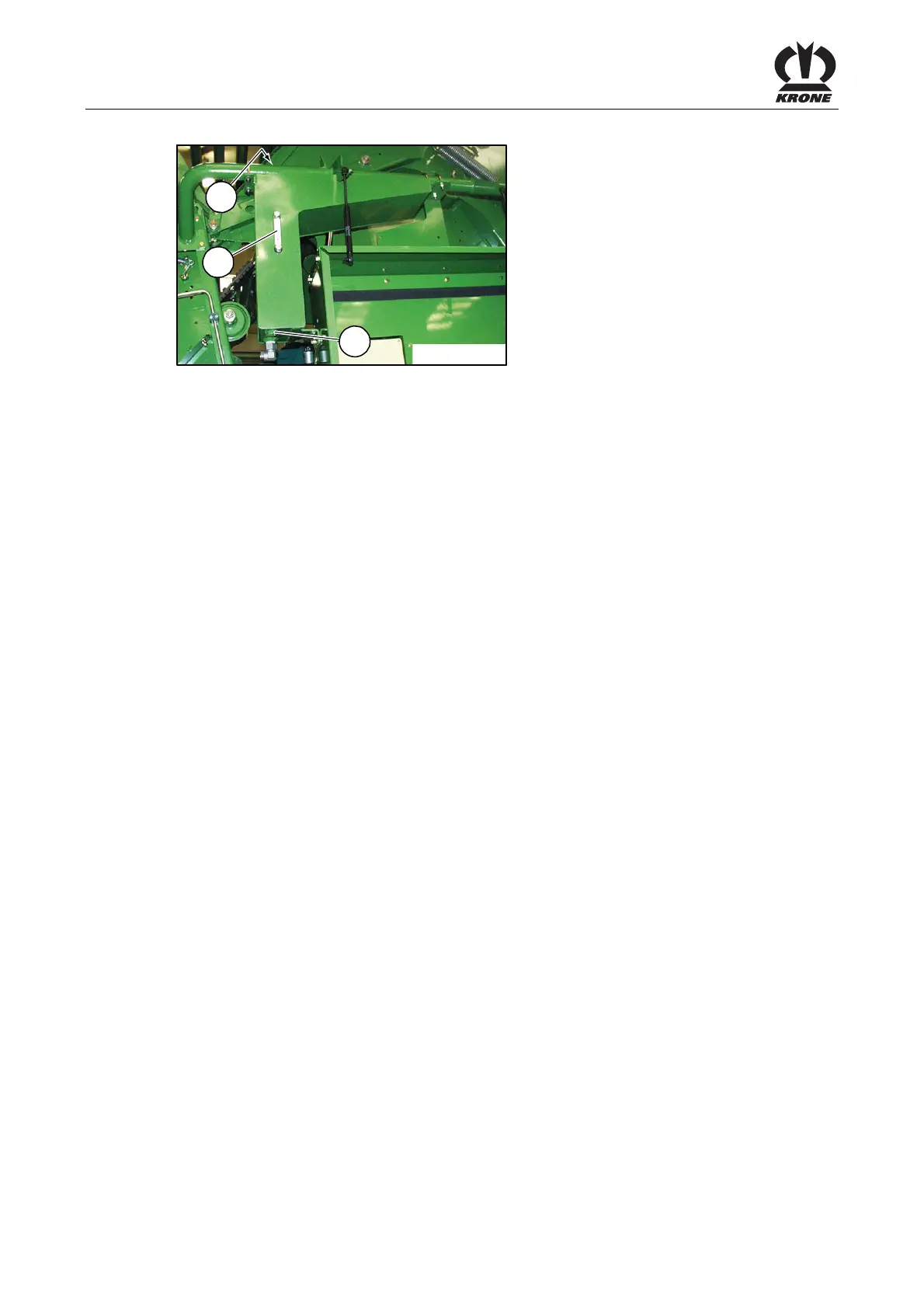

Fig. 249
1) Inspection glass 2) Filler neck
3) Locking screw
Pos: 59.165.2 /BA/W artung/Rundballenpres se/Hydrauliktan k/Ölstandskontro lle_CF 155 XC, CV 150 XC @ 191\mod_138 1733337127_78.doc x @ 1628931 @ @ 1
To check the oil level:
Prerequisite
– The tailgate must be closed.
• Read the oil level on the inspection glass.
If the inspection glass shows a level of 3/4 or more, the oil level is correct.
If the inspection glass shows a level below 3/4:
• Clean the area around the filler neck.
• Top up the oil up to the 3/4 mark using the filler neck.
• Before refilling, clean the area around the fi ller plug (2).
Pos: 59.165.3 /BA/W artung/Rundballenpres se/Ölwechselinter vall Comprima @ 60\ mod_1298295449413_78. docx @ 564895 @ @ 1
Oil Changing Interval:
• Every 500 operating hours
• At least after each season
Pos: 59.165.4 /BA/W artung/Rundballenpres se/Hydrauliktan k/Ölwechsel Comprim a_CF 155 XC, CV 150 XC @ 188\mod_1380 206384171_78.doc x @ 1612026 @ @ 1
Oil change:
Prerequisite
– The tailgate must be closed.
Collect escaping oil in a suitable container.
• Unscrew the locking screw and drain the oil.
• Screw in the locking screw.
• Pour in fresh oil up to the 3/4 mark of the inspection glass using the filler neck.
