Commissioning
67
Pos: 42.44 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Bild Anbau Gelenkwellenhalter @ 32\mod_1253533150220_7 8.docx @ 314206 @ @ 1
RP-99-012
2
1

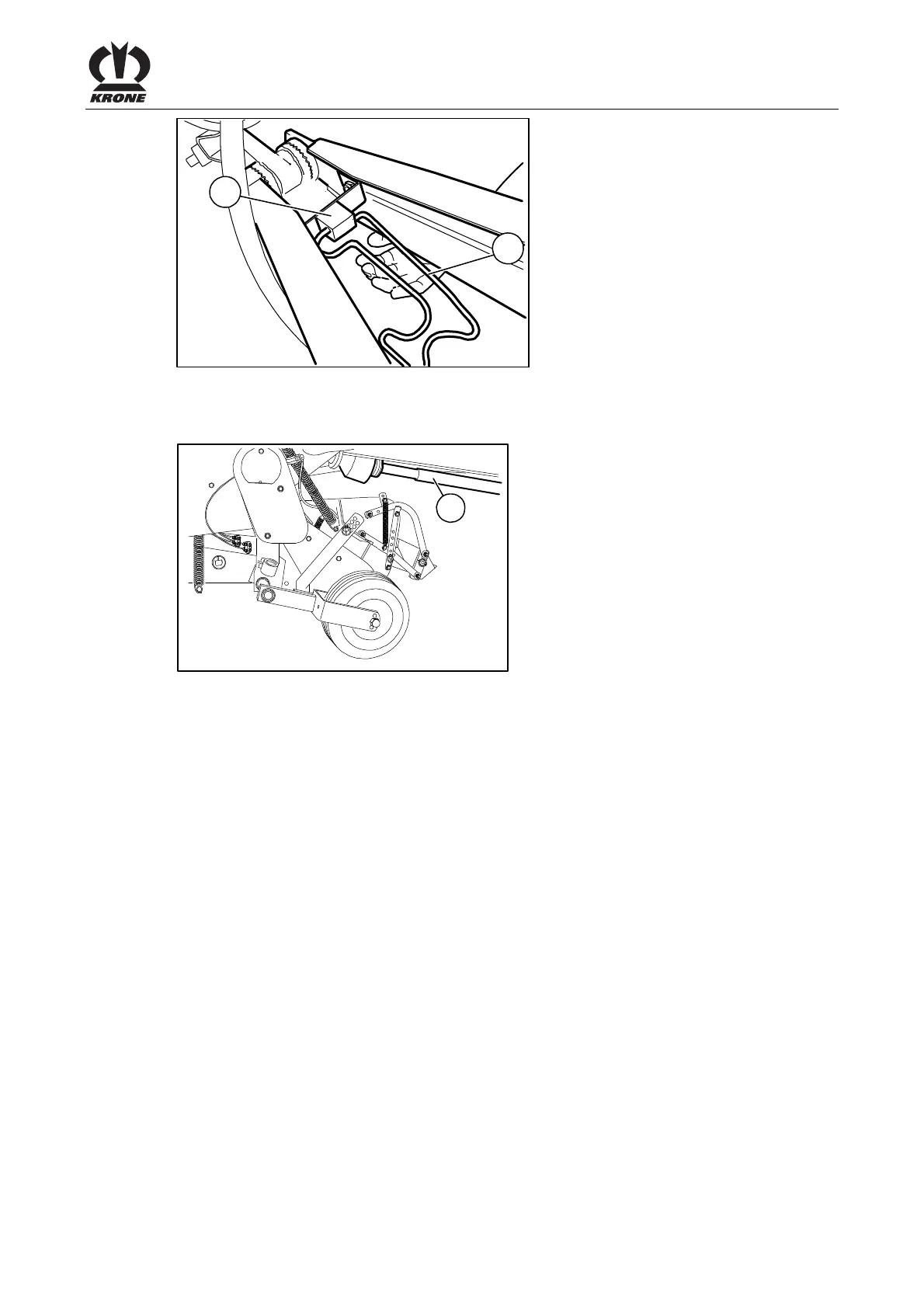

Fig. 35
Pos: 42.45 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Anbau Gelenk wellenhalter @ 32\mod_12 53533341376_78.doc x @ 314231 @ @ 1
• Switch off the engine and remove the ignition key.
• Assemble the PTO shaft bracket (1) and secure the PTO shaft support (2).
Pos: 42.46 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Bild Anbau Gelenkwelle CF_CV @ 66\mod_130 2005363071_78.doc x @ 593400 @ @ 1
KR201144
1
Fig.36
Pos: 42.47 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Anbau Gelenk welle CF/CV (XC) @ 122\ mod_1344319909882_78.doc x @ 1112385 @ @ 1
• Push on universal shaft (1) with overload protection on machine side until the safety
mechanism engages or the universal shaft can be screwed (see the operating instructions
provided by the PTO shaft manufacturer).
• Hook in the retaining chains of the universal shaft guard on machine side.
Pos: 42.48 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
