Commissioning
68
Pos: 42.49 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Zugöse drehen @ 77\ mod_13100479049 43_78.docx @ 667353 @ @ 1
COM00321
1
2
3
4
4
3

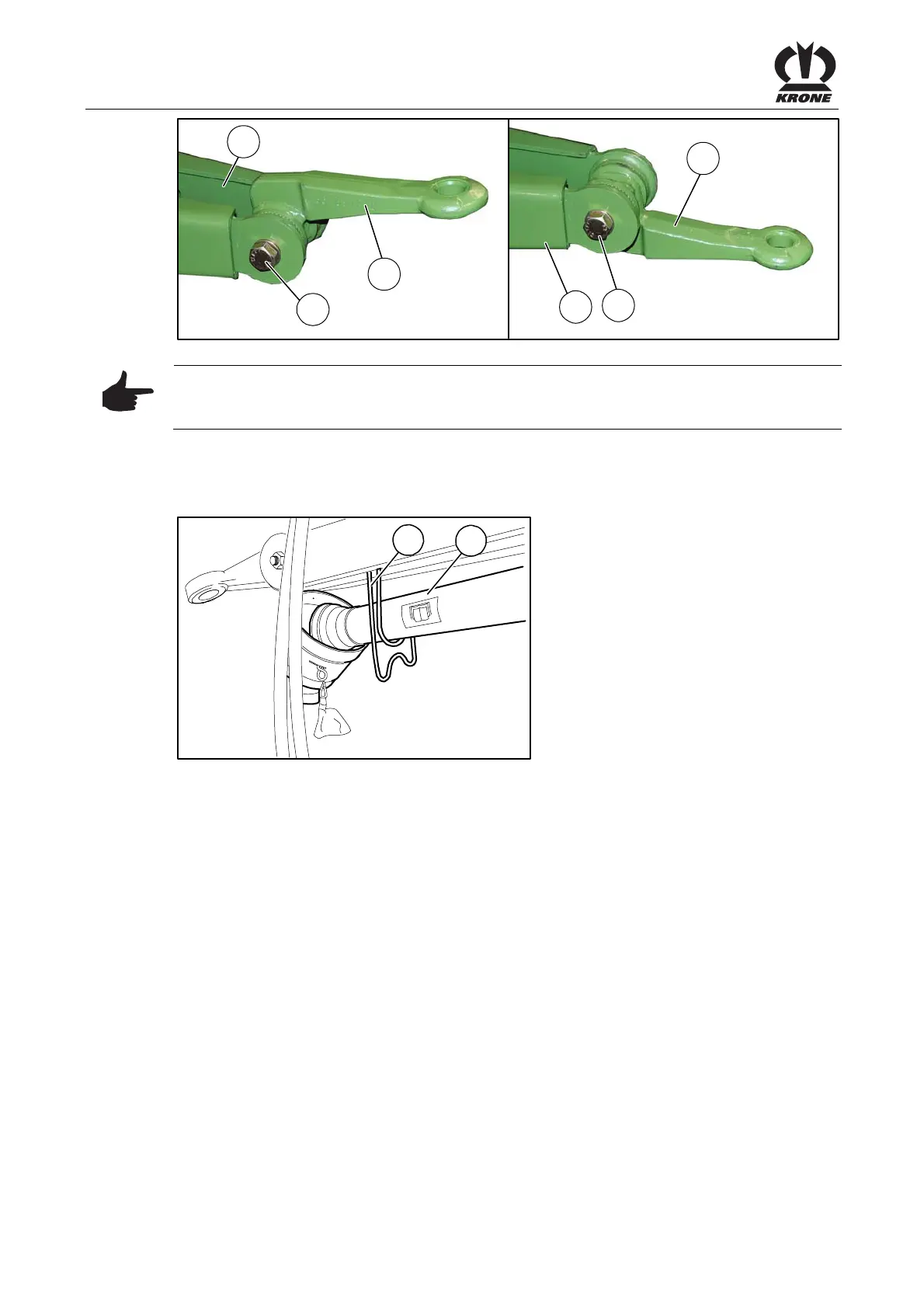

Fig. 37
Note
To achieve greater PTO shaft freedom, the towing ring can be mounted in position (1) or (2) on
the drawbar (3).
• Use a suitable tool to loosen the screw connection (4).
• Rotate the towing ring to the desired position and use the screw connection (4) to mount it
on the drawbar (3).
Pos: 42.50 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Bild Gelen kwelle ablegen CF_CV @ 66\mo d_1302005535740_78. docx @ 593427 @ @ 1
2
1
KR200084
Fig.38
Pos: 42.51 /BA/Er stinbetriebnahme/Rundba llenpresse/Ge lenkwelle/Gelenkwel le ablegen @ 32\mod_12535 34329111_78.docx @ 314 331 @ @ 1
• Place the PTO shaft (1) inside the PTO shaft support (2).
